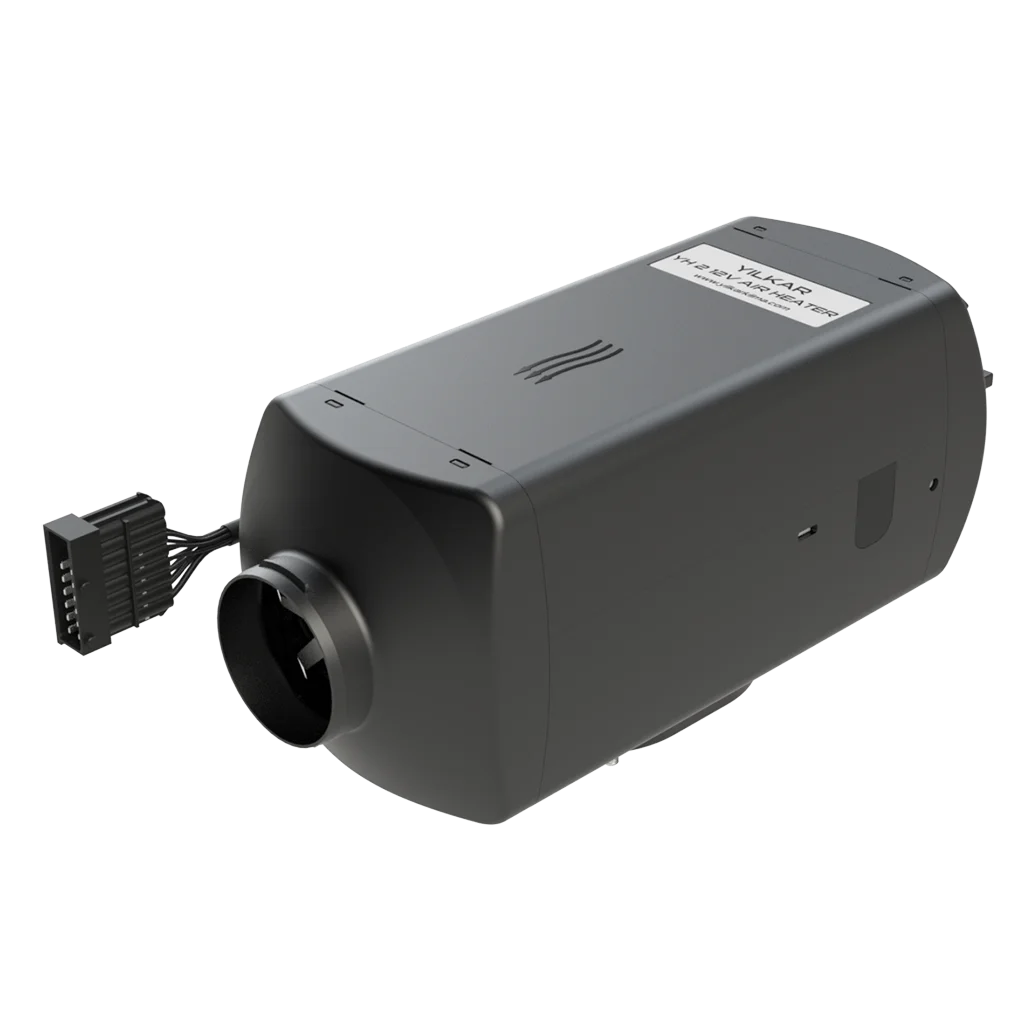

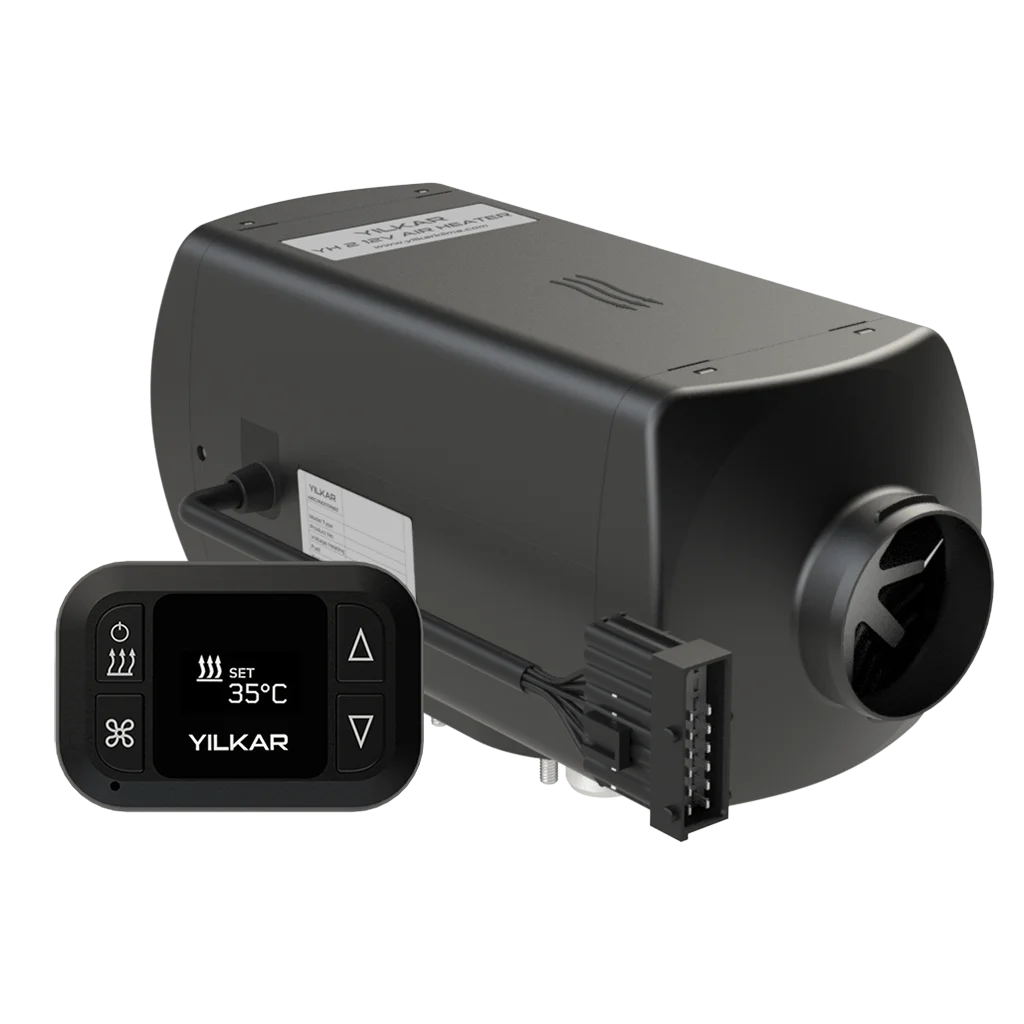

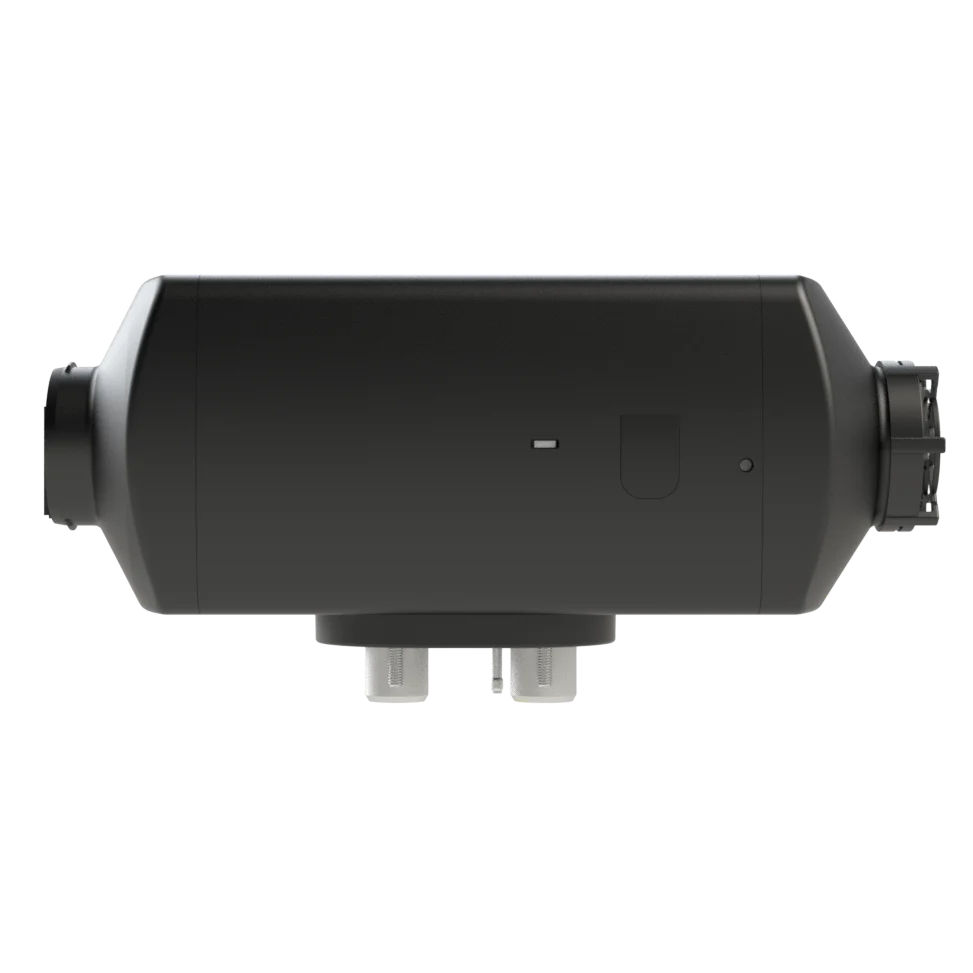

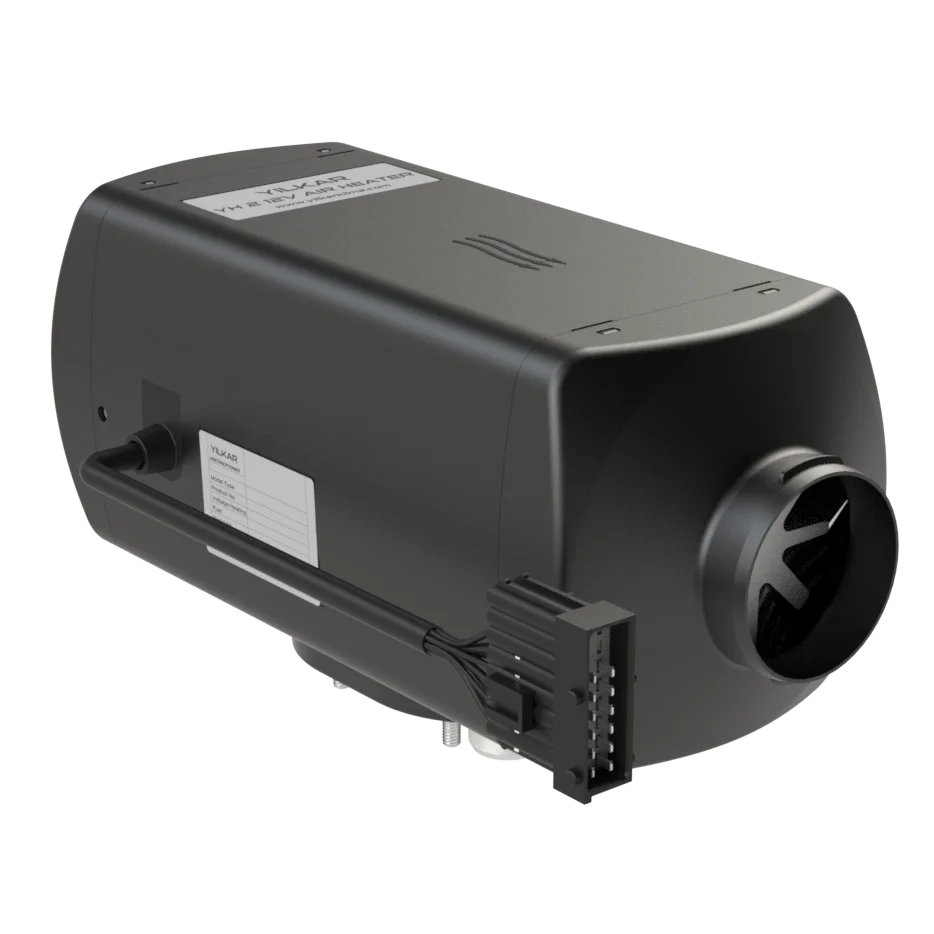

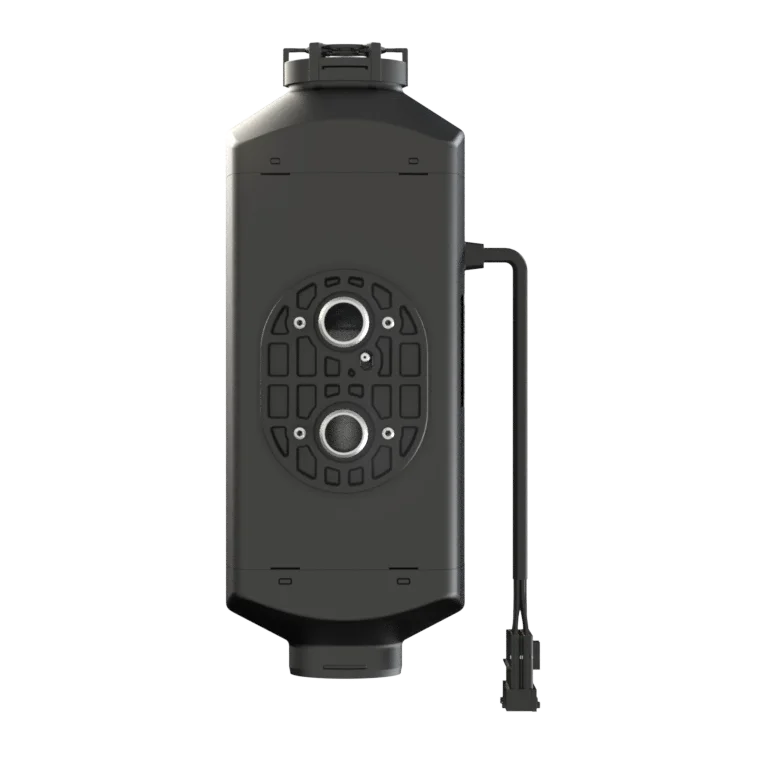

Air Heater is a heater device that operates independently of the engine, has low electrical consumption, and has the ability to quickly heat the desired place by using the heat energy generated by the fuel.
The air heater can be used anywhere that has a small energy source (battery) that can enable electrical components to work. Therefore, it has many uses. These; people transport, truck cabins, caravans, marine, ambulance, etc. special utility vehicles, defense industry, and various electric vehicles.

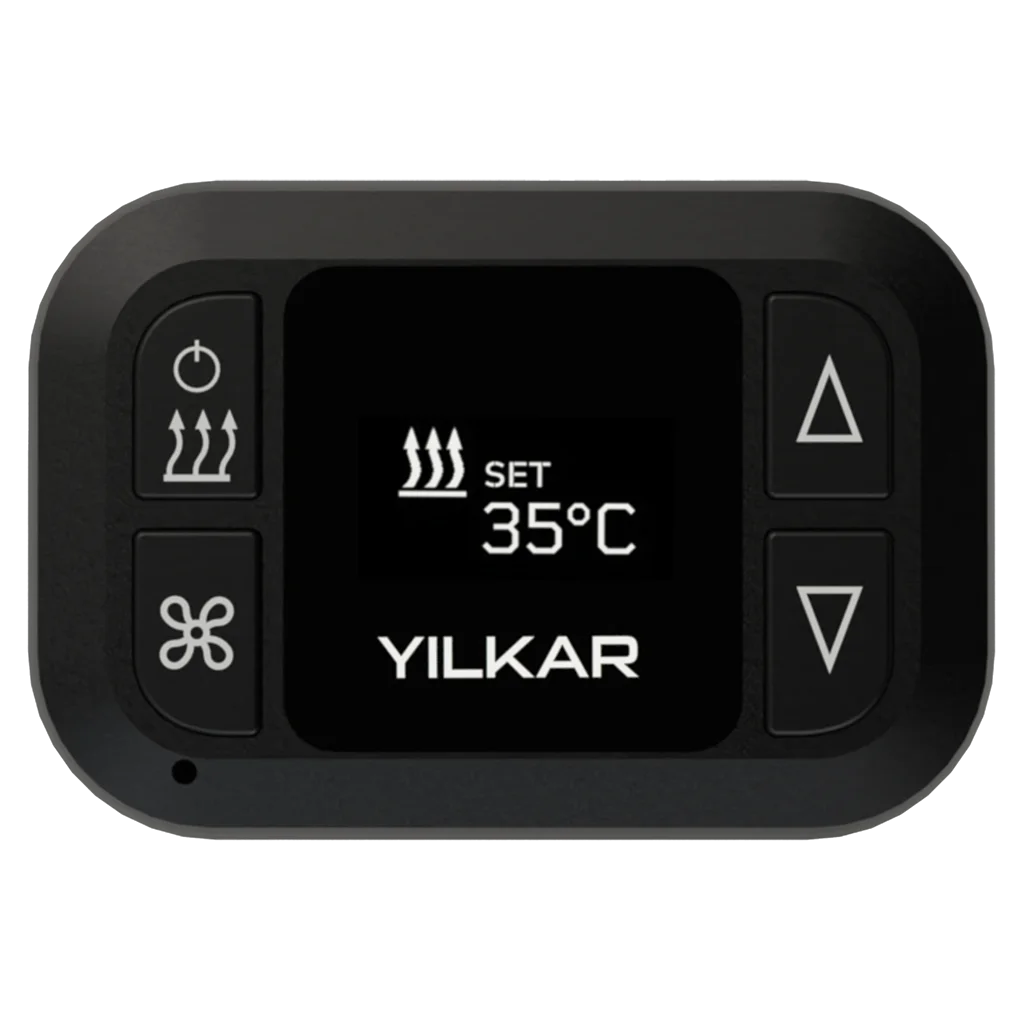

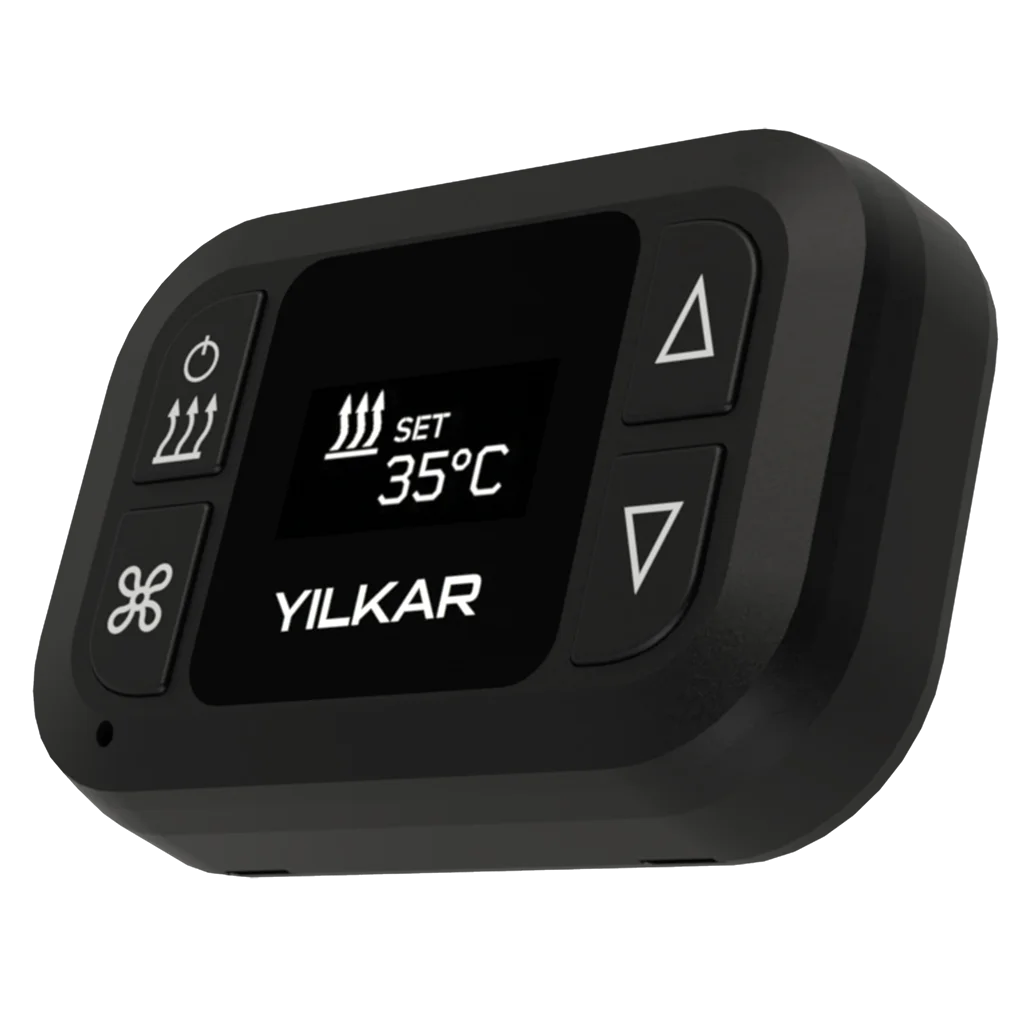

Standard Contol Unit
0.97 inch Oled Large Graphic Display
4 Button Control
Ambient Temperature Sensor
Adjustable Temperature
Heating Mode
Ventilation Mode
Instant Temperature Display
Unit Support
Warning Display
Reset
Altitude limit 1500m
Low Power Consumption: Operates independently of the engine, using minimal electrical energy.
Simple Control Interface: Equipped with a basic, easy-to-use control unit for quick adjustments.
Adjustable Temperature: Offers customizable heating based on your comfort needs.
Intelligent Error Detection: Detects and warns of up to 22 different errors, ensuring smooth operation.
Leakproof Design: Sealed components make it suitable for various environmental conditions.
Multiple Air Outlet Options: Standard 60 and optional 75 air outlet covers to adjust airflow needs.
High-Resolution OLED Display: Features a 0.97-inch display with a chrome frame for clear visibility and user-friendly controls.
Altitude Sensor: Supports operation up to an altitude of 1500 meters.
Eco-Friendly Design: Consumes only 0.28 L/h (max) of fuel, ensuring energy efficiency.
Weight: 3 kg
Unit Dimensions: 320 x 130 x 150 mm
Fuel Type: Diesel
Fuel Consumption: 0.28 L/h (max.), 0.2 L/h (average)
Air Flow: 90 m/h (max.)
Voltage: 12/24 VDC
Starting Current: 8A @ 12VDC, 4A @ 24VDC
Operating Current: 3A @ 12VDC, 1.5A @ 24VDC
Heating Capacity: 0.9 - 2.5 kW
Altitude Limit: 1500 meters
