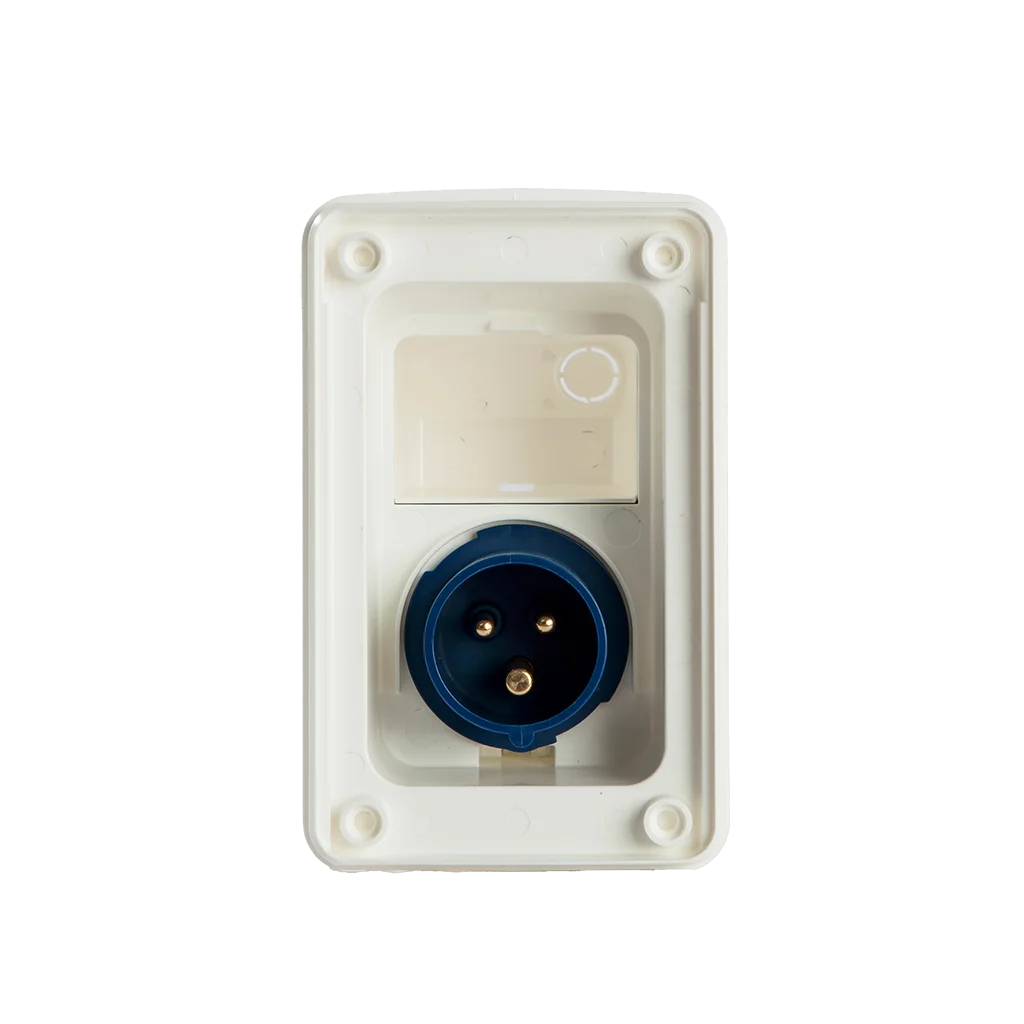

The Whale Mains Electric In Easi-Slide Socket is designed to safely connect your 230V/16amp mains electricity to your leisure vehicle, such as a caravan, motorhome, or camper van, while onsite. The easy-to-install socket features a unique sliding lid that prevents damage and ensures the security of the socket when not in use. Its sleek design aligns with other exterior sockets for a uniform look on your vehicle.Please note the lid must be purchased separately.
Safely connects 230V/16amp mains power to your vehicle
Unique sliding lid for protection and security when not in use
Sleek, uniform design that complements other vehicle sockets
Waterproof protection for durability in outdoor environments
High-quality satin finish UV stabilized to prevent sunlight damage
Easy to install and use
Unique sliding lid for protection and security when not in use
Sleek, uniform design that complements other vehicle sockets
Waterproof protection for durability in outdoor environments
High-quality satin finish UV stabilized to prevent sunlight damage
Easy to install and use
Height (Open): 270 mm
Height (Closed): 164 mm
Width: 103 mm
Electrical spec: 230V AC/16 Amp
Weight: 0.26kg
Electrical Connections: Hard wired to Power Distribution Unit (PDU). 3 core (brown, blue, yellow/green). 300/500V. 16 A min. 2.5mm CSA. 10mm OD. Plain annealed copper wire. PVC insulated.
Compliance: BS EN 60309 and IP55 rated when lid closed
Height (Closed): 164 mm
Width: 103 mm
Electrical spec: 230V AC/16 Amp
Weight: 0.26kg
Electrical Connections: Hard wired to Power Distribution Unit (PDU). 3 core (brown, blue, yellow/green). 300/500V. 16 A min. 2.5mm CSA. 10mm OD. Plain annealed copper wire. PVC insulated.
Compliance: BS EN 60309 and IP55 rated when lid closed
