The Victron Solar Splitter Pair MC4-Y enables parallel connection of solar panels with MC4 connectors, allowing multiple panels to be connected into one circuit with minimal power loss. Includes one male-to-2-female and one female-to-2-male splitter for streamlined and safe installation.

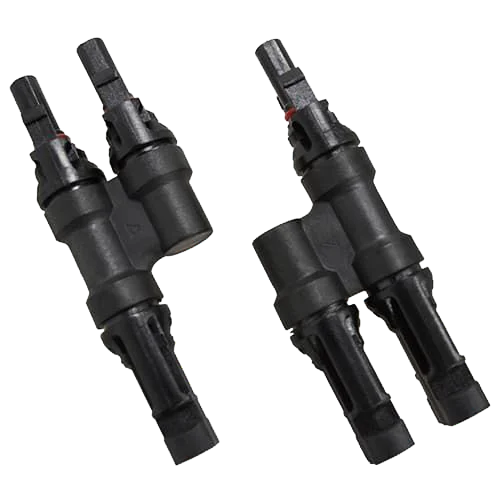

Pair includes: 1x Male to 2x Female (M-2F), 1x Female to 2x Male (F-2M)
Ideal for parallel wiring of solar panels
Maintains secure, waterproof MC4 connections
UV-resistant and IP67 rated when connected
Compatible with standard MC4 solar cables
Minimises voltage drop and improves cable management in multi-panel systems
Ideal for parallel wiring of solar panels
Maintains secure, waterproof MC4 connections
UV-resistant and IP67 rated when connected
Compatible with standard MC4 solar cables
Minimises voltage drop and improves cable management in multi-panel systems
IP Rating: IP67 (when connected)
Rated Current: Up to 30A
Rated Voltage: Up to 1000V DC
Cable Compatibility: 2.5-6mm (14-10 AWG)
Operating Temperature: -40C to +85C
Weight: ~60g per pair
Rated Current: Up to 30A
Rated Voltage: Up to 1000V DC
Cable Compatibility: 2.5-6mm (14-10 AWG)
Operating Temperature: -40C to +85C
Weight: ~60g per pair
