The SmartShunt is an all-in-one battery monitor without a display – your smartphone acts as the interface. It connects via Bluetooth to the VictronConnect app, allowing you to monitor voltage, current, state of charge, and more. Ideal for systems where space is limited and a traditional battery monitor is not desired.

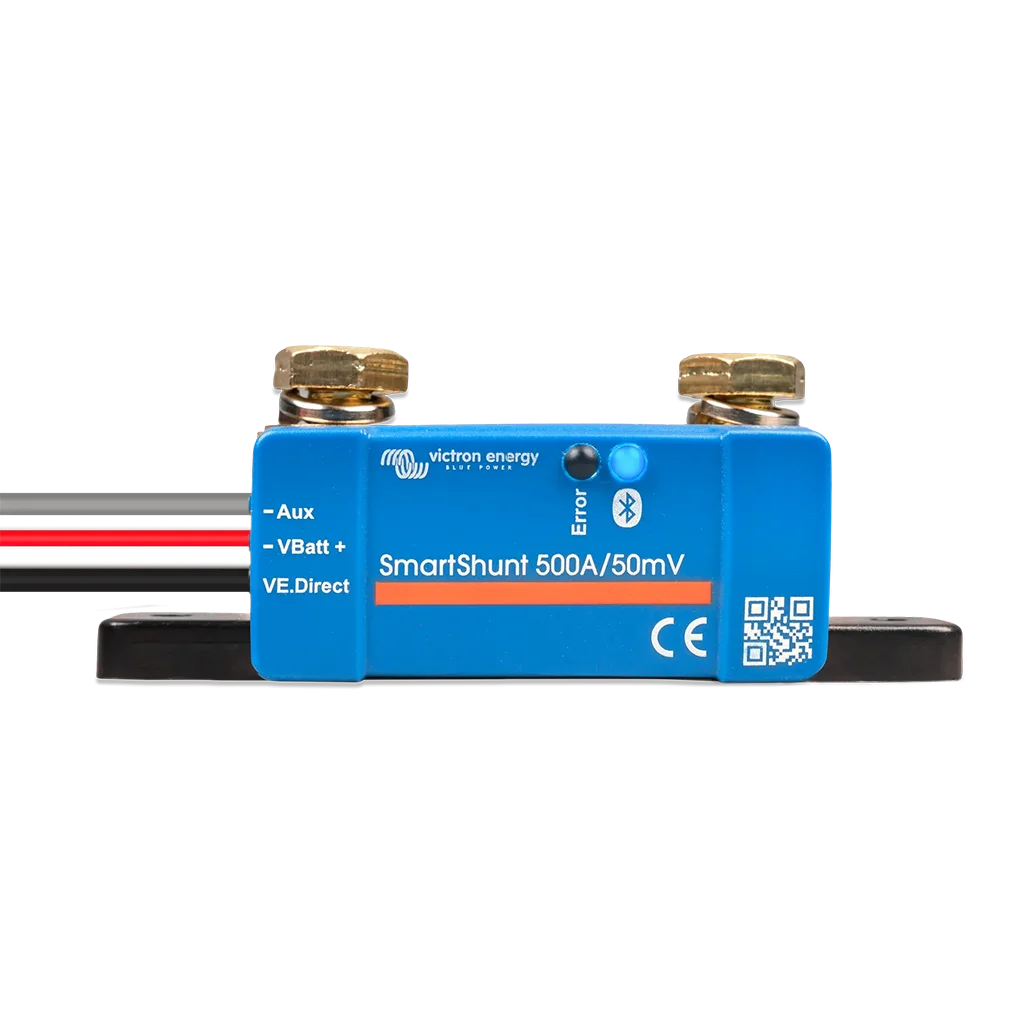

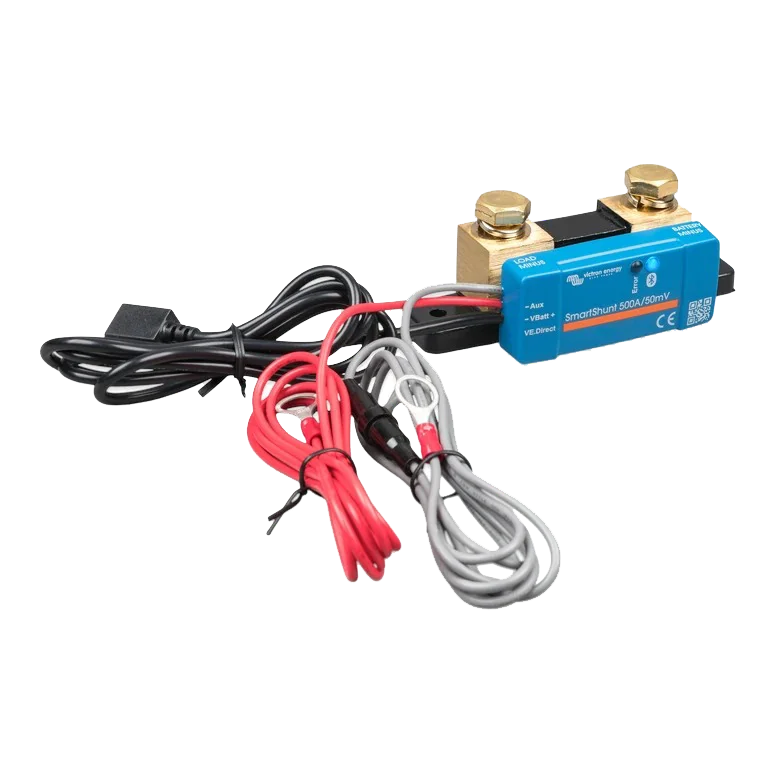

Victron SmartShunt 500A/50mV IP65 Battery Monitor
New
SKU:
SHU065150050
EAN:
8719076057895
Built-in Bluetooth for wireless monitoring
Connects to VictronConnect app
Monitors battery voltage, current, charge level & history
VE.Direct port for optional wired connection
Auxiliary input for midpoint monitoring or second battery
Compact, minimalist design
Connects to VictronConnect app
Monitors battery voltage, current, charge level & history
VE.Direct port for optional wired connection
Auxiliary input for midpoint monitoring or second battery
Compact, minimalist design
- Rated current: 300A
- Voltage range: 6.5 70VDC
- Accuracy: ±0.4%
- Dimensions: 120 x 54 x 46 mm
- Protection: IP21
- Shunt: 500A / 50mV
- Ingress Protection: IP65 (dust-tight, water jet-resistant)
