The SmartShunt is an all-in-one battery monitor without a display – your smartphone acts as the interface. It connects via Bluetooth to the VictronConnect app, allowing you to monitor voltage, current, state of charge, and more. Ideal for systems where space is limited and a traditional battery monitor is not desired.
New!

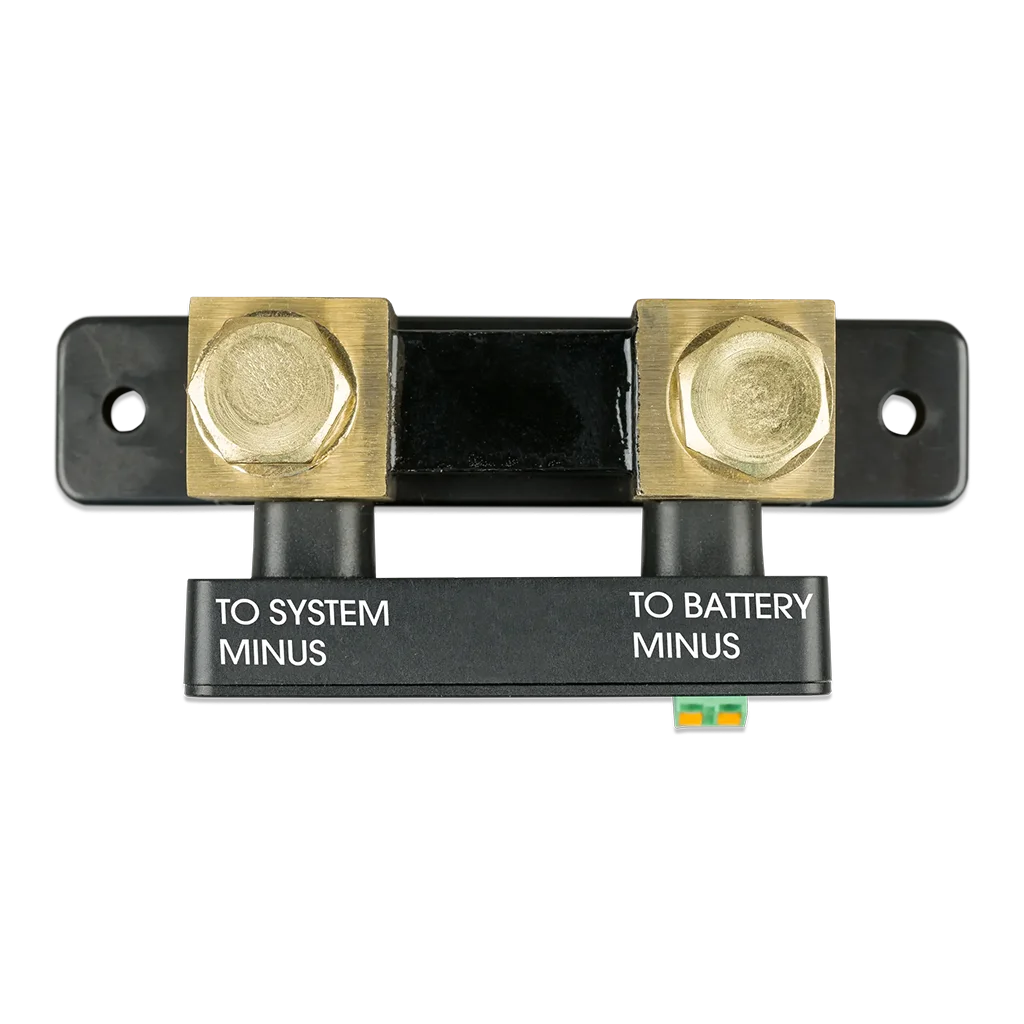

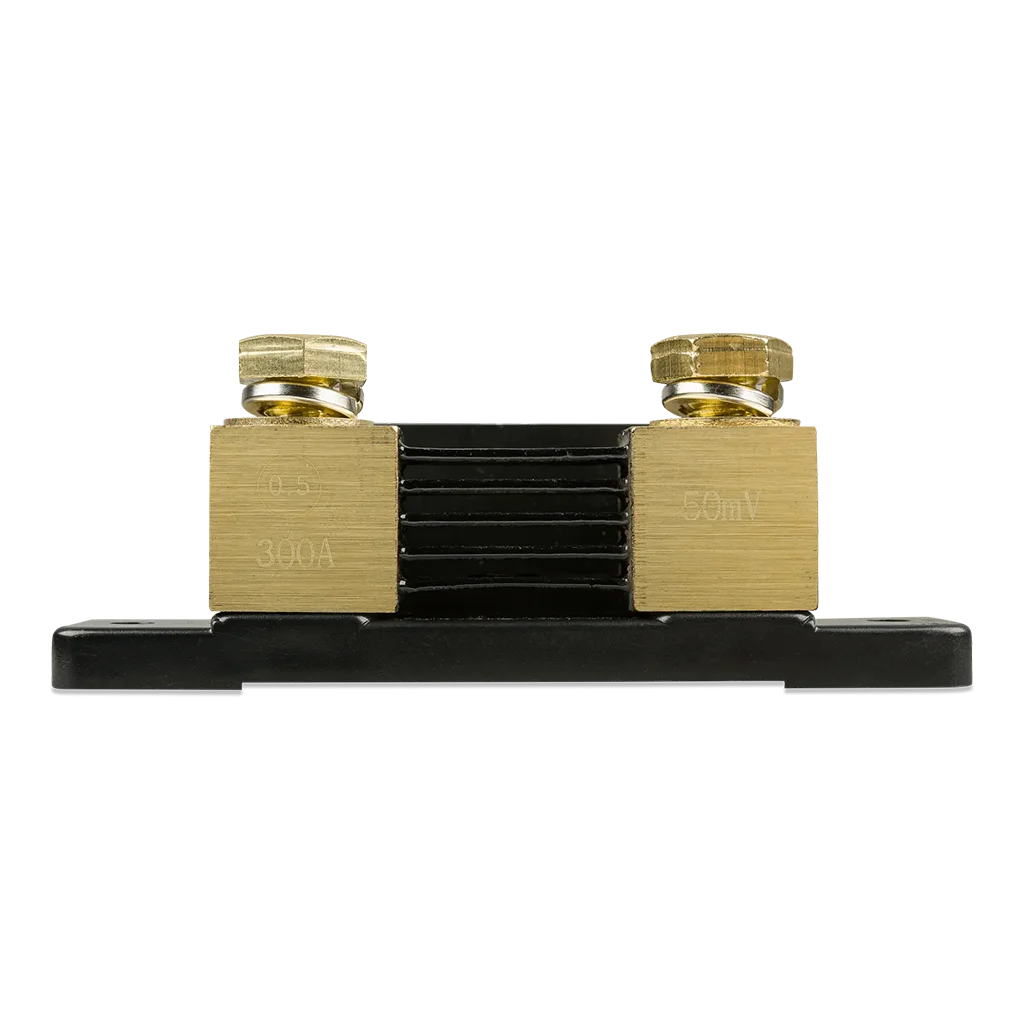

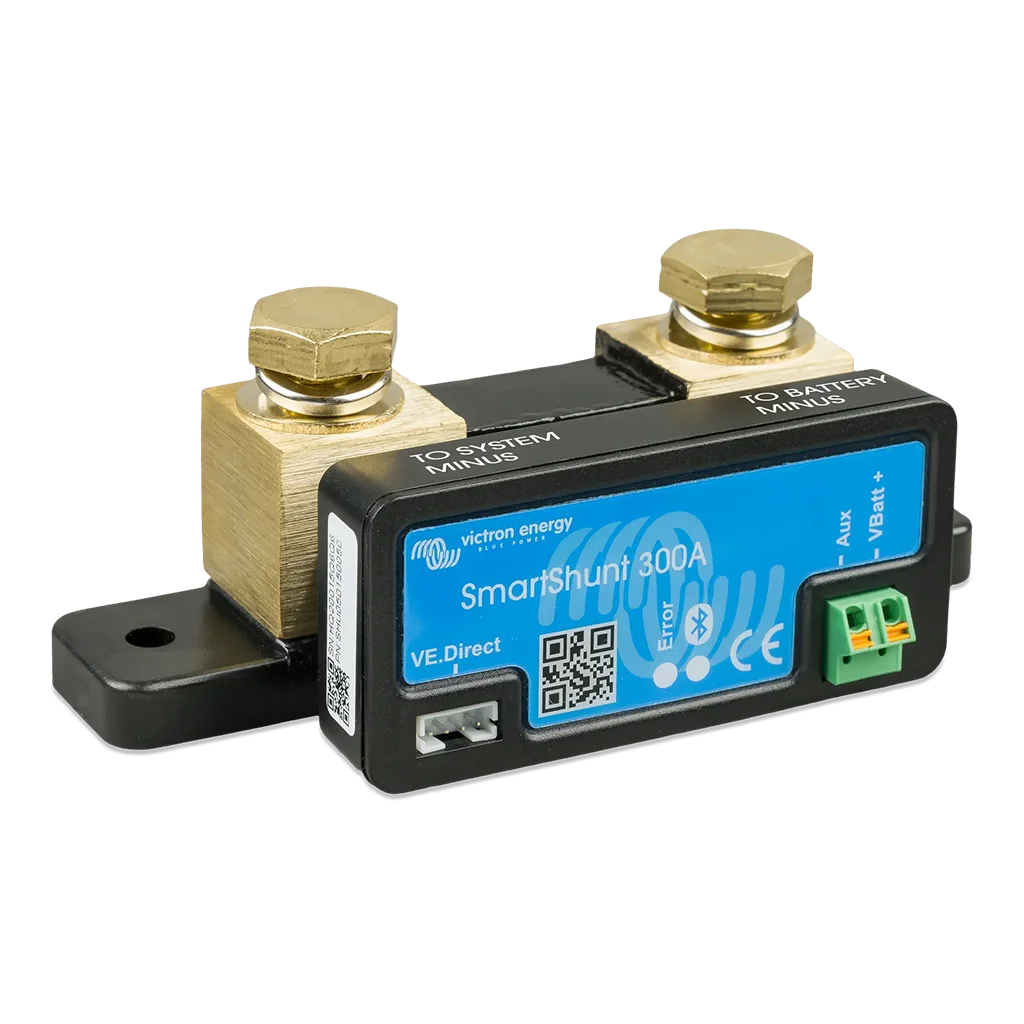

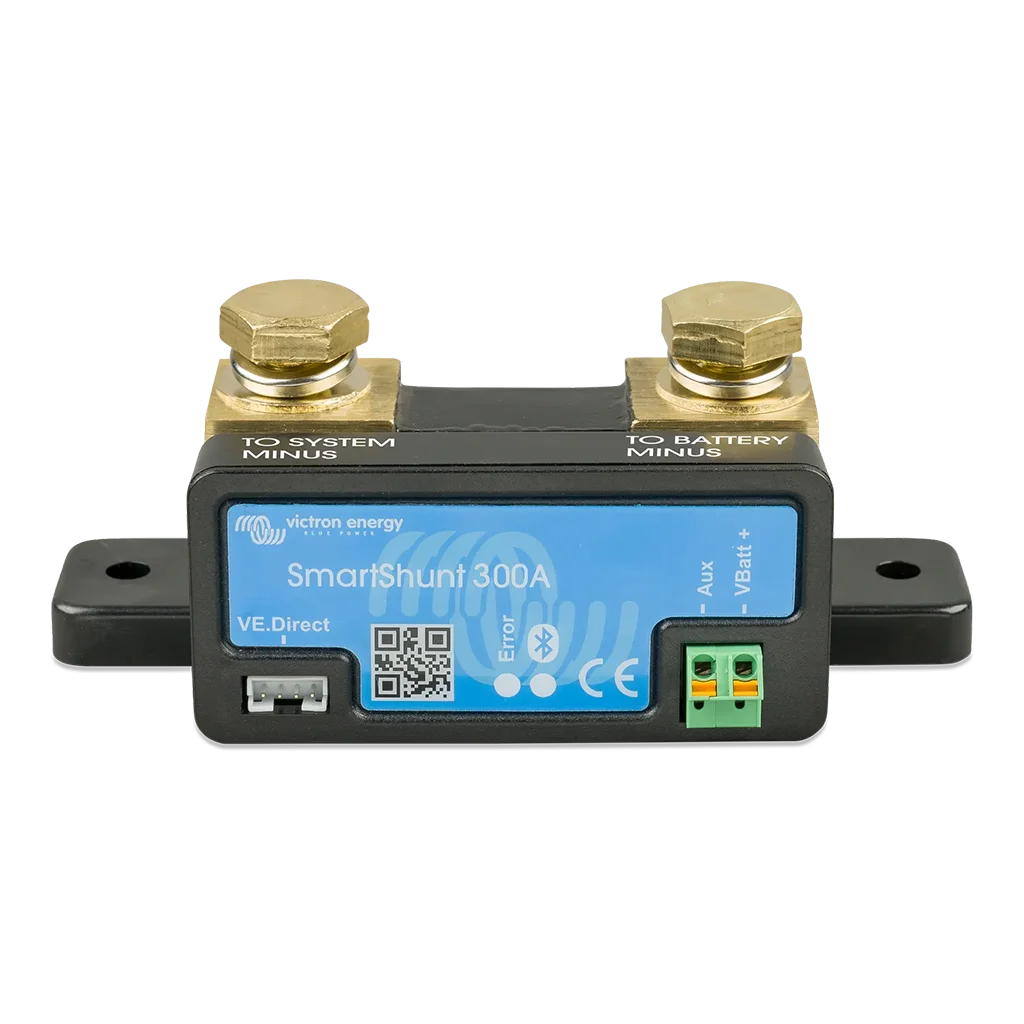

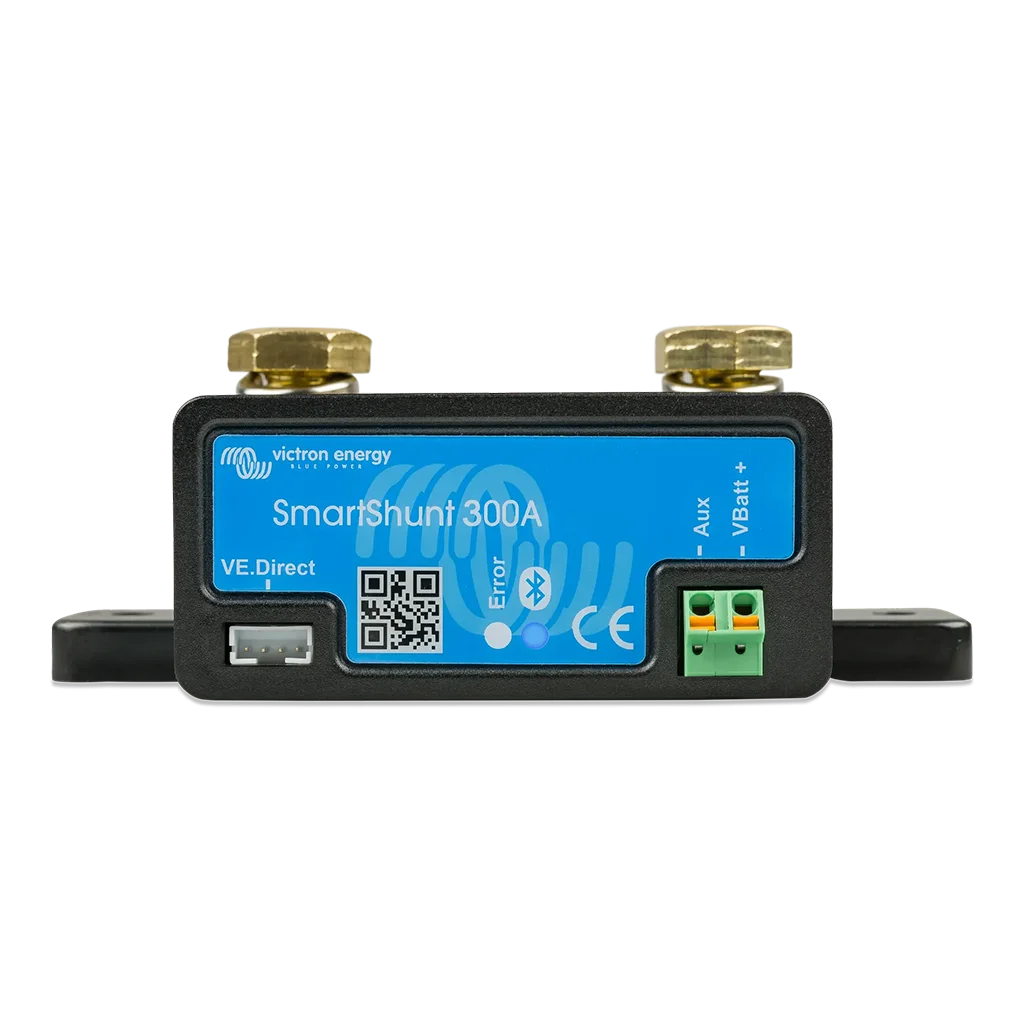

Victron SmartShunt 300A/50mV Battery Monitor
SKU: SHU050130050
EAN: 8719076065708
Built-in Bluetooth for wireless monitoring
Connects to VictronConnect app
Monitors battery voltage, current, charge level & history
VE.Direct port for optional wired connection
Auxiliary input for midpoint monitoring or second battery
Compact, minimalist design
Connects to VictronConnect app
Monitors battery voltage, current, charge level & history
VE.Direct port for optional wired connection
Auxiliary input for midpoint monitoring or second battery
Compact, minimalist design
Rated current: 300A
Voltage range: 6.5 - 70VDC
Accuracy: 0.4%
Dimensions: 120 x 54 x 46 mm
Protection: IP21
Shunt: 300A / 50mV
Voltage range: 6.5 - 70VDC
Accuracy: 0.4%
Dimensions: 120 x 54 x 46 mm
Protection: IP21
Shunt: 300A / 50mV
There are currently no documents available for this product.
