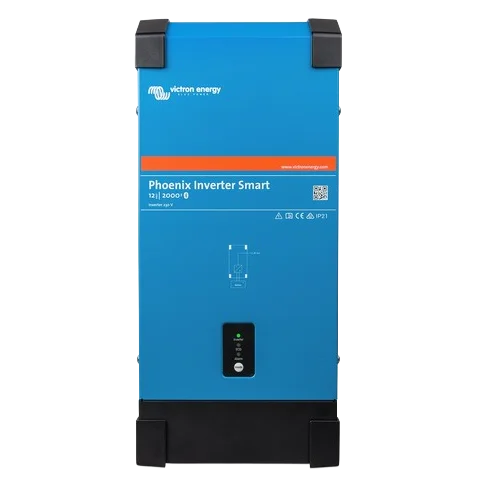

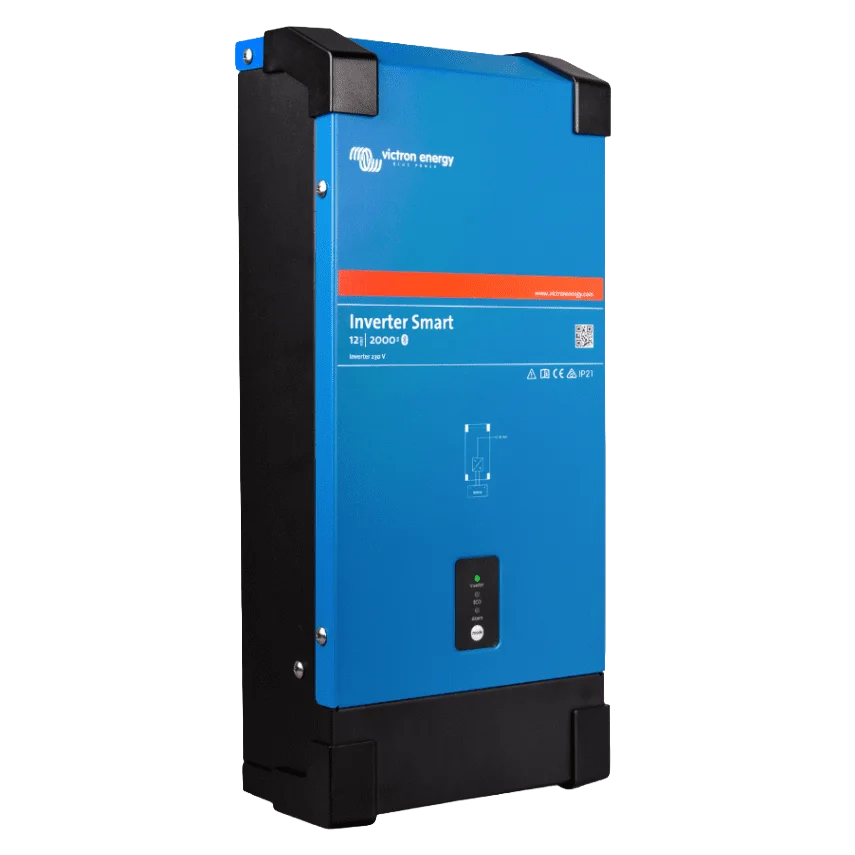

The Victron Phoenix Inverter Smart is a powerful and efficient pure sine wave inverter for 12V DC systems, converting 12V battery power to 230V AC. Built on the proven Phoenix inverter platform, it features a slimmer design with a full metal casing for durability and professional installation. It is capable of powering most common plug-in appliances in cars, boats, caravans, or homes. Built-in Bluetooth allows remote monitoring and configuration via the VictronConnect app, making setup and management simple. A toroidal transformer ensures high peak power capacity, stable voltage, frequency, and high-quality sine-wave output.
Pure sine wave output for sensitive electronics
Max continuous power: 2000VA (high surge capacity)
Built-in Bluetooth for remote configuration and monitoring
VE.Direct communication port for computer or mobile integration
Configurable settings via VictronConnect
Monitoring: input/output voltage, load, and alarms
High start-up power for devices with surge demands (LED lamps, halogen lamps, power tools)
ECO mode: switches to standby when load decreases, auto-restores periodically
Remote on/off via two-pole connector or relay
Compatible with Filax Automatic Transfer Switch or MultiPlus for seamless AC source transfer
Proven reliability with full bridge plus toroidal transformer topology; protected against short-circuits and overheating
Max continuous power: 2000VA (high surge capacity)
Built-in Bluetooth for remote configuration and monitoring
VE.Direct communication port for computer or mobile integration
Configurable settings via VictronConnect
Monitoring: input/output voltage, load, and alarms
High start-up power for devices with surge demands (LED lamps, halogen lamps, power tools)
ECO mode: switches to standby when load decreases, auto-restores periodically
Remote on/off via two-pole connector or relay
Compatible with Filax Automatic Transfer Switch or MultiPlus for seamless AC source transfer
Proven reliability with full bridge plus toroidal transformer topology; protected against short-circuits and overheating
- Input voltage range: 9.3 17.0 VDC
- Output voltage: 230VAC +/- 2%
- Continuous AC power at 25ºC: 2000VA
- Continuous power at 25ºC/40ºC/65ºC: 1600/1450/1000W
- Peak power: 4000VA
- Dynamic (load dependent) DC low shut down: Fully configurable
- Max. efficiency: 92%
- No-load power consumption: 8W
- Default zero load power in ECO mode: 0.6W
- Operating temperature: -40ºC to +65ºC (fan assisted cooling)
- Stop & start power ECO-mode: Adjustable

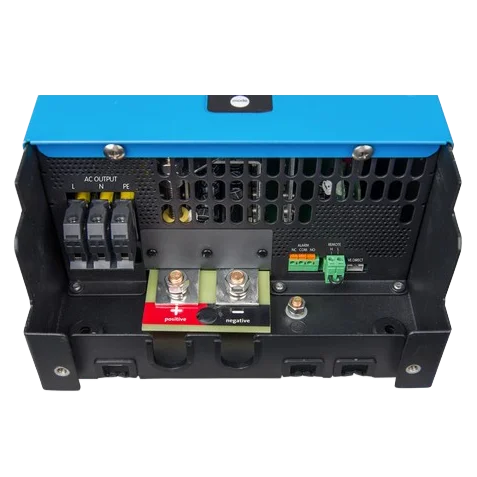

- DC (battery) cable connection: M8 bolts
- 230V AC cable connection: Screw terminals
- Ingress Protection rating: IP21
- Weight: 14kg
- Overall dimensions: 485 (L) x 219 (W) x 125 (H) mm
