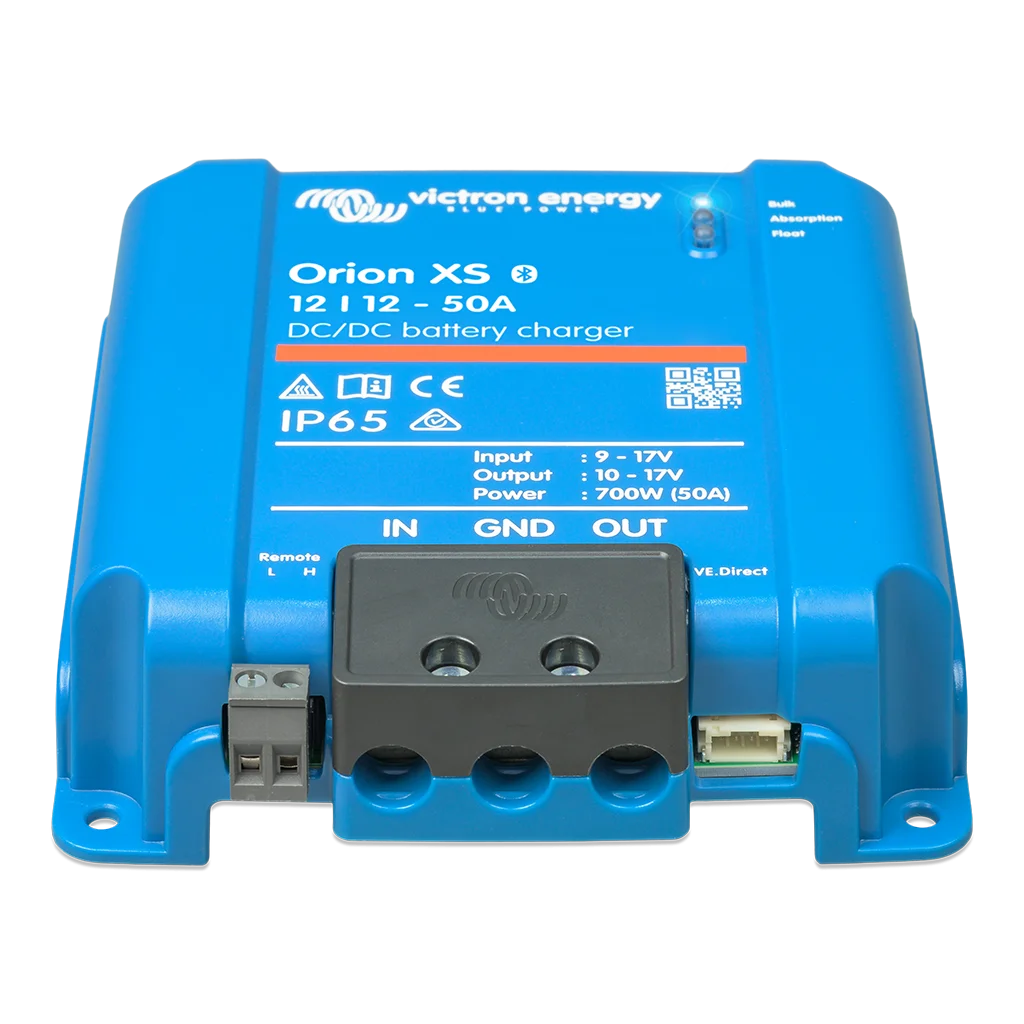

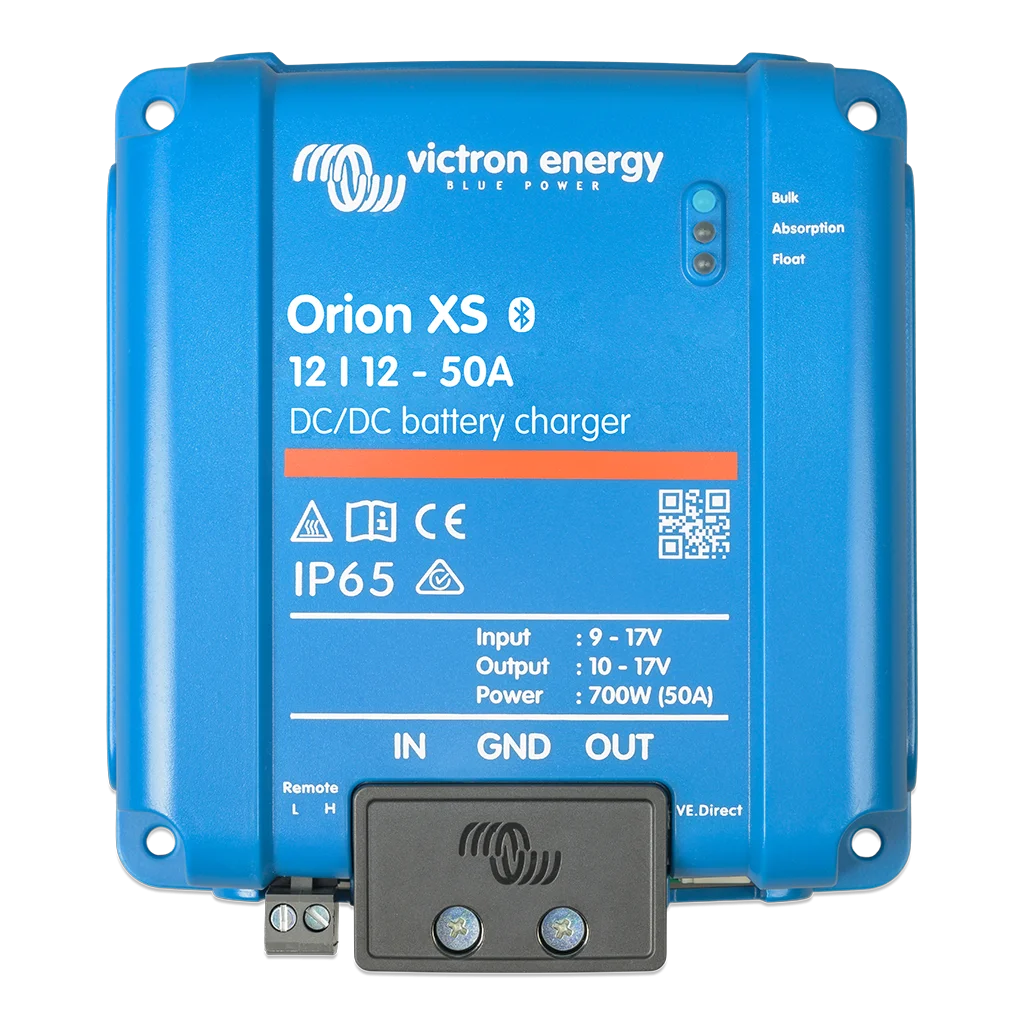

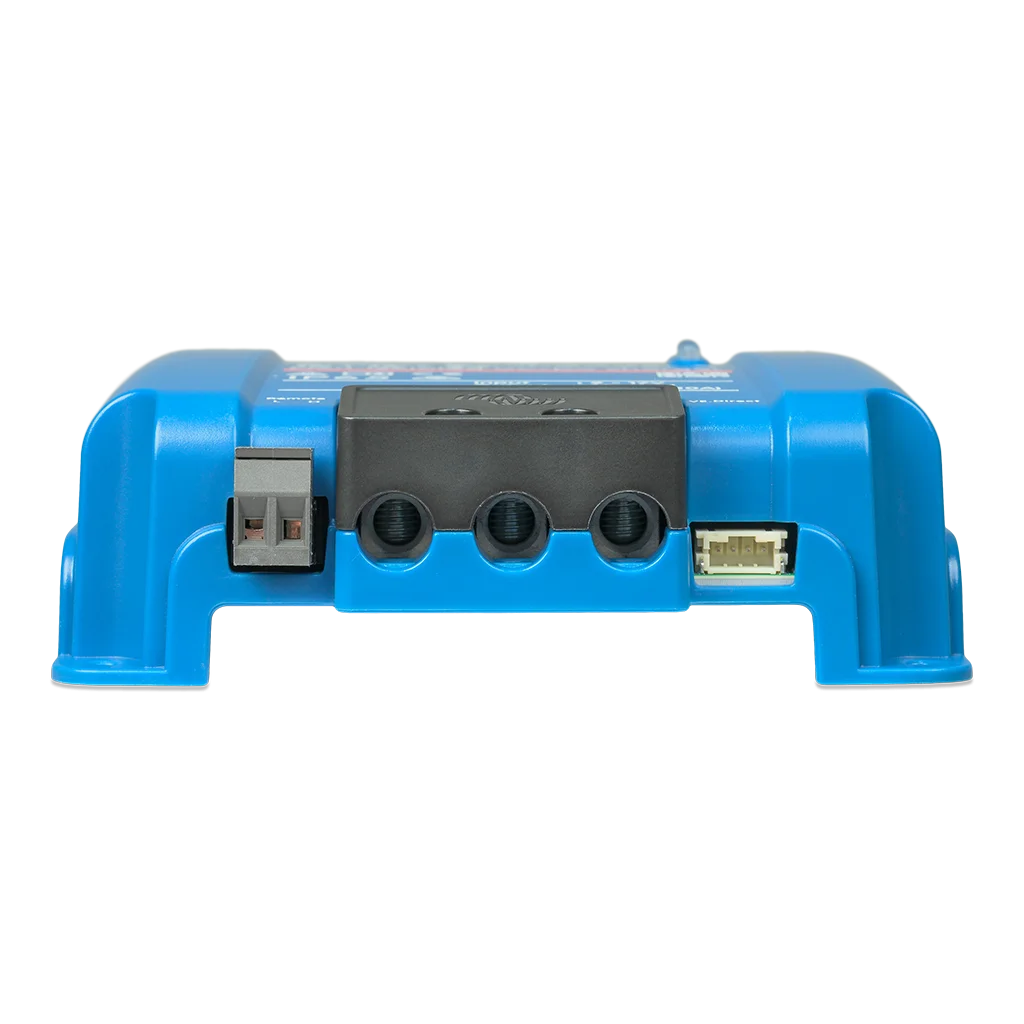

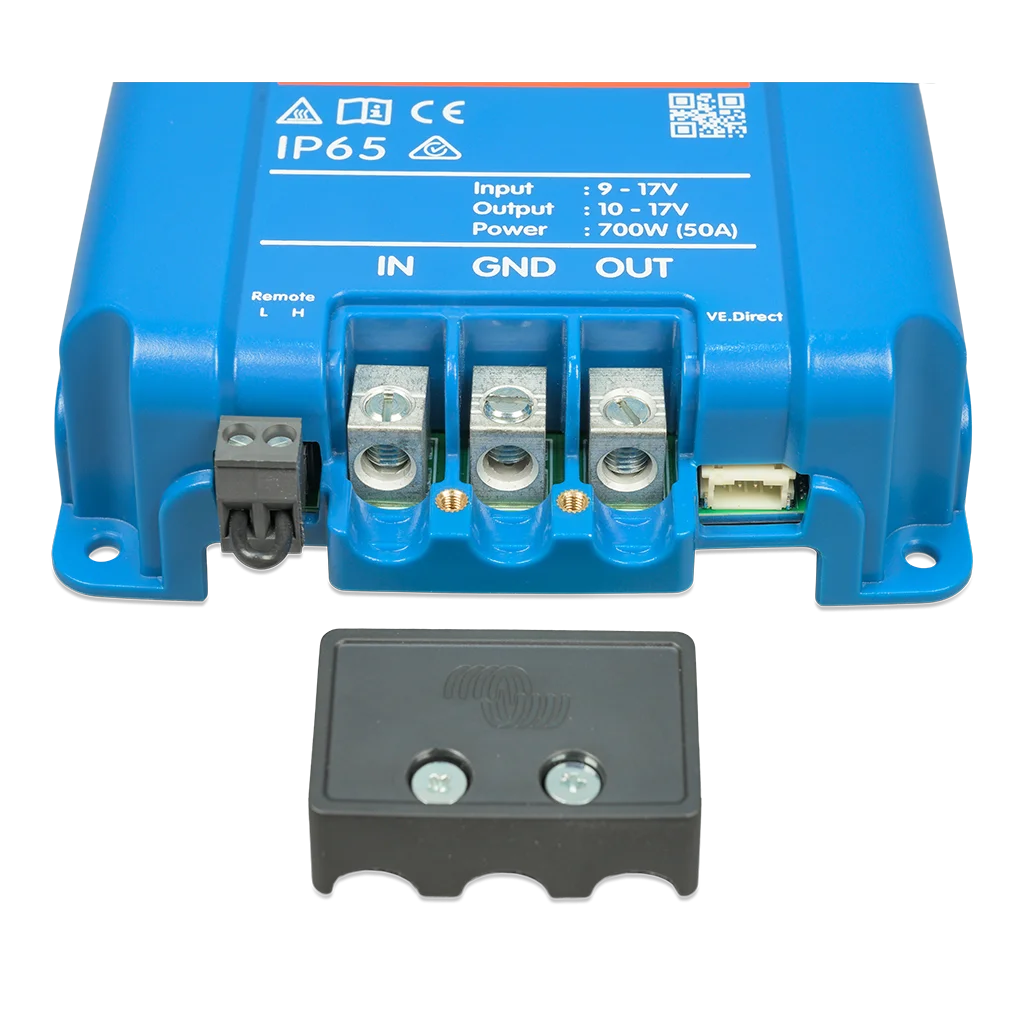

Victron Orion XS 12/12-50A DC-DC Battery Charger

The Victron Energy Orion XS 12/12-50A is a next-generation DC-DC battery charger designed for high-performance dual battery systems in vehicles, boats, and off-grid installations. Delivering up to 50 amps of charge current, it ensures fast, safe, and adaptive charging of auxiliary batteries from a 12V starter battery or alternator source. With full Bluetooth monitoring, advanced protection features, and programmable charging profiles, the Orion XS offers superior efficiency, flexibility, and system integration.

High Output: Up to 50A charge current for rapid battery charging
Smart 3-Stage Charging: Ensures optimal charge profile and battery longevity
Bluetooth Built-In: Monitor and configure settings via the VictronConnect app
Non-Isolated Design: Compact and efficient for common-ground systems
Fully Programmable: Adjustable output voltage, charging algorithm, and more
Multiple Protection Features: Includes input undervoltage, overtemperature, and overload protection
Parallel Operation: Connect multiple units for higher current applications
Ultra-Efficient Thermal Design: Robust cooling without the need for active fans

Dimensions (HxWxD): 50 x 123 x 137 mm
Input Voltage Range: 1017V DC
Output Voltage: 12V nominal
Max Output Current: 50A
Efficiency: Up to 98%

There are currently no documents available for this product.
