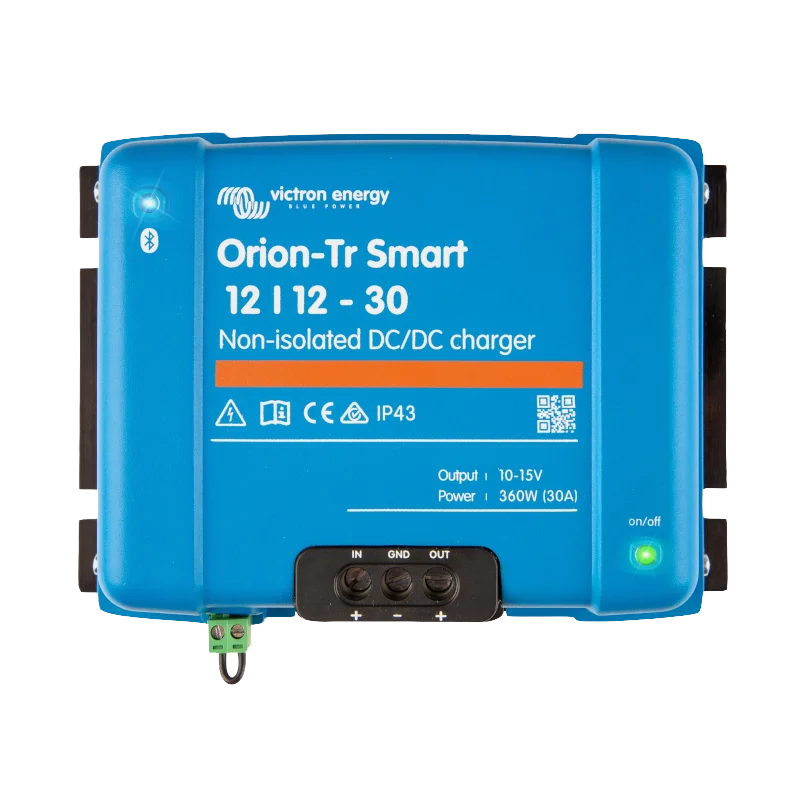

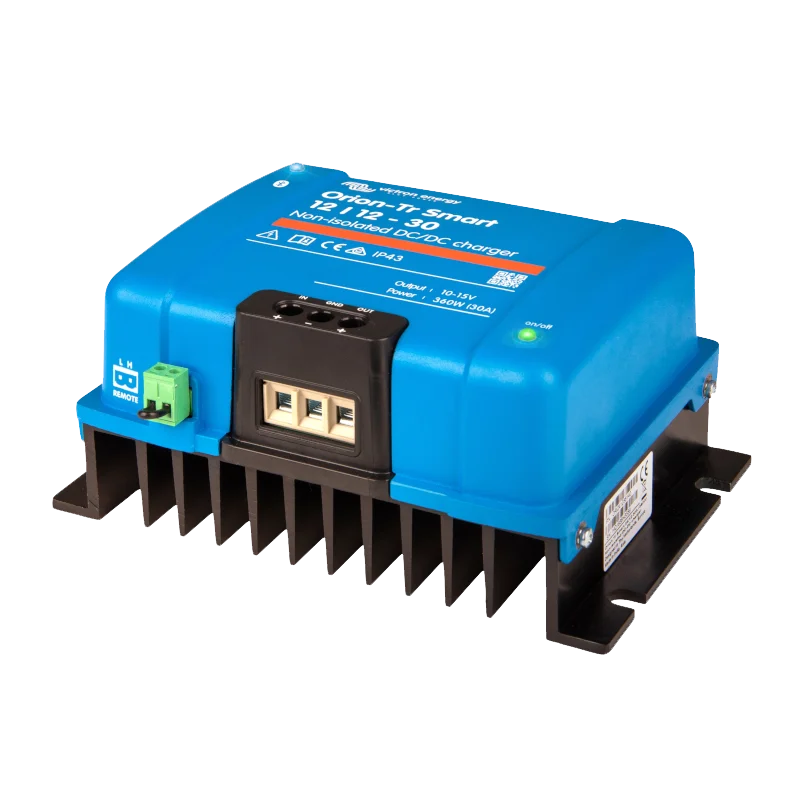

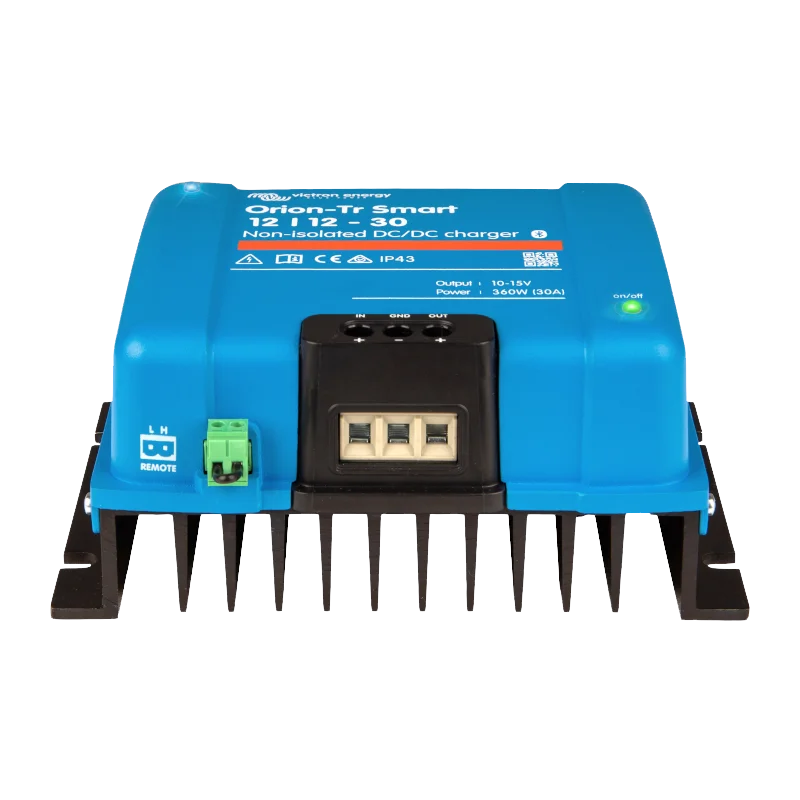

The Victron Orion-Tr Smart 12/12-30A Non-Isolated (360W) DC-DC Charger is designed for high-performance charging in systems where galvanic isolation is not required. With smart charging capabilities, up to 30A output, and Bluetooth connectivity, it’s ideal for modern 12V dual battery systems in campervans, work vehicles, and off-grid setups.
Victron Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC Battery Charger
SKU: ORI121236140
EAN: 8719076048954
360W Output / 30A Charge Current
Non-Isolated: Efficient and compact for common-ground systems
Bluetooth Enabled: Monitor and adjust settings via the VictronConnect app
Fully Programmable Charging: Suits all battery types, including lithium
Remote On/Off Control: Ignition detection compatible
High Efficiency: Minimal heat loss and low standby current
Non-Isolated: Efficient and compact for common-ground systems
Bluetooth Enabled: Monitor and adjust settings via the VictronConnect app
Fully Programmable Charging: Suits all battery types, including lithium
Remote On/Off Control: Ignition detection compatible
High Efficiency: Minimal heat loss and low standby current
Dimensions: 130 x 186 x 80 mm
Weight: 1.8 kg
Input Voltage: 10-17V
Output Voltage: 12V
Efficiency: Up to 95%
Current Rating: 30A
Weight: 1.8 kg
Input Voltage: 10-17V
Output Voltage: 12V
Efficiency: Up to 95%
Current Rating: 30A
