The Victron MultiPlus 12/1200/50-16 is a compact all-in-one pure sine wave inverter and advanced battery charger with VE.Bus communication. It delivers 1200VA of continuous inverter power and features a 50A battery charger with a 16A transfer switch. The MultiPlus seamlessly integrates into off-grid, mobile, marine, and backup power systems, offering smart load prioritisation and generator/shore power support.

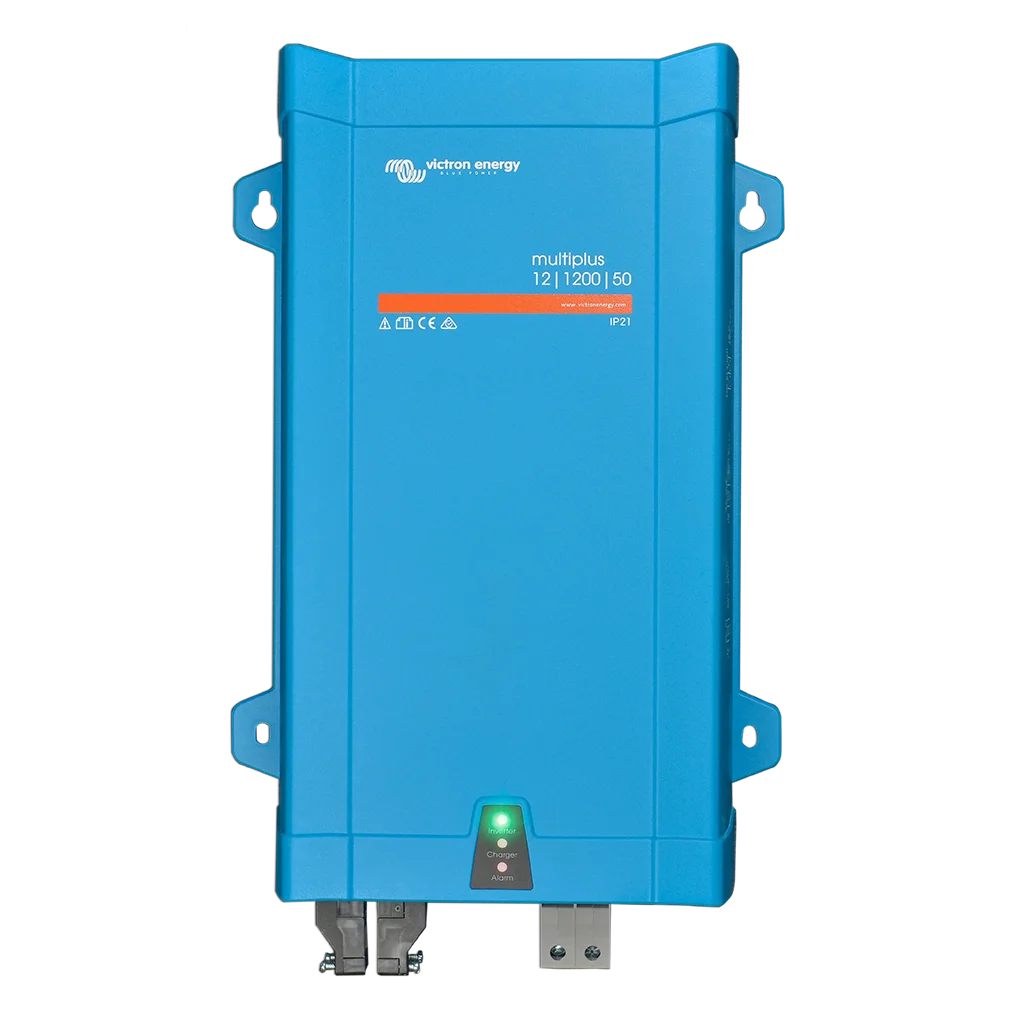

Victron MultiPlus 12/1200/50-16 230V VE.Bus
New
SKU:
PMP122120000
EAN:
8719076039310
- All-in-One Inverter/Charger: Combines pure sine wave inverter, battery charger, and transfer switch
- 1200VA Continuous Output / 2400W Peak Power
- Battery Charger Output: 50A with adaptive 4-stage charging
- VE.Bus Communication: Enables parallel/3-phase operation and remote system integration
- UPS Functionality: Seamless transition between grid/generator and inverter output
- Remote Monitoring & Configuration: With Cerbo GX, Color Control GX, or VictronConnect
- PowerAssist Technology: Boosts capacity when shore/generator power is limited
- Robust Protections: Against overload, battery voltage, temperature, and short circuits
- Dimensions: 375 x 214 x 110 mm
- Weight: Approx. 10 kg
- Input Voltage: 9.5 - 17V DC
- AC Output: 230V 2%, 50Hz 0.1%
- Charger Output: 50A
- Transfer Switch Rating: 16A
- Peak Power: 2400W
- Efficiency: 92%
