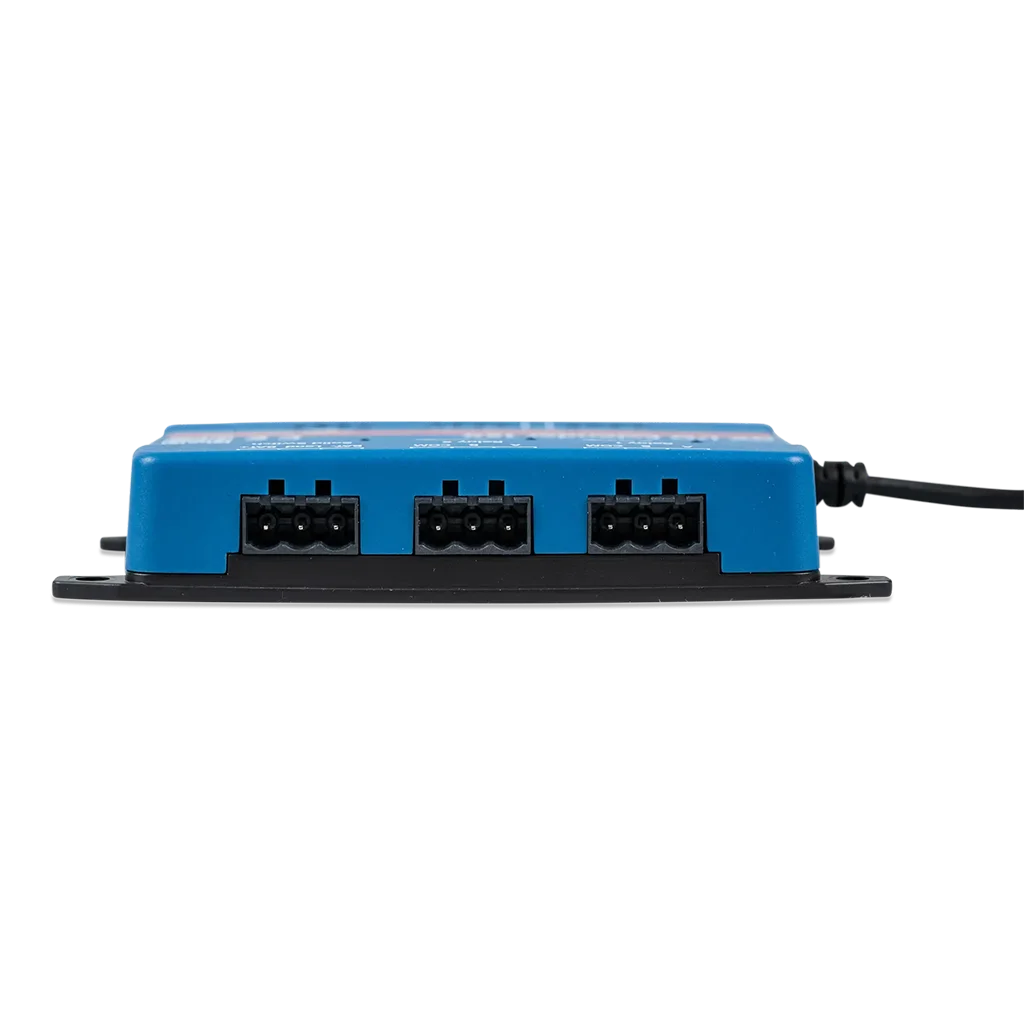

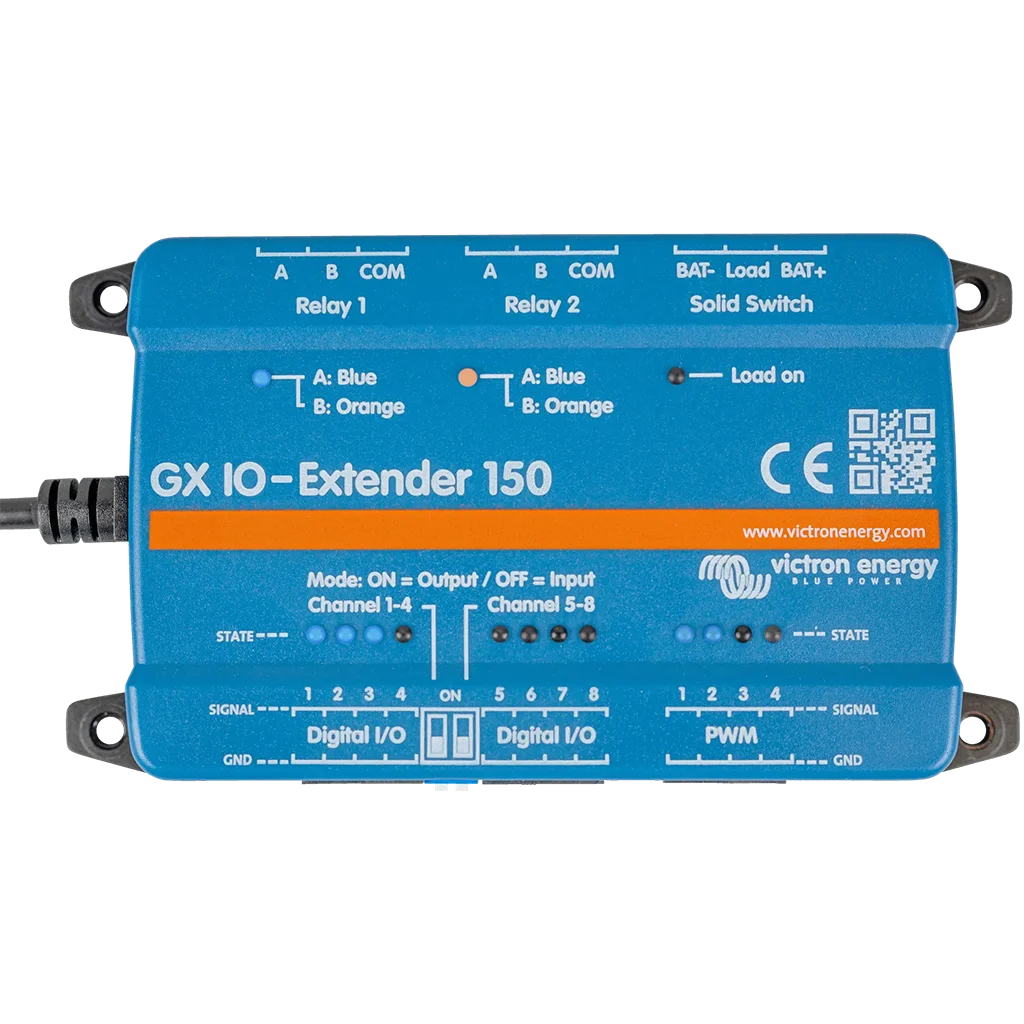

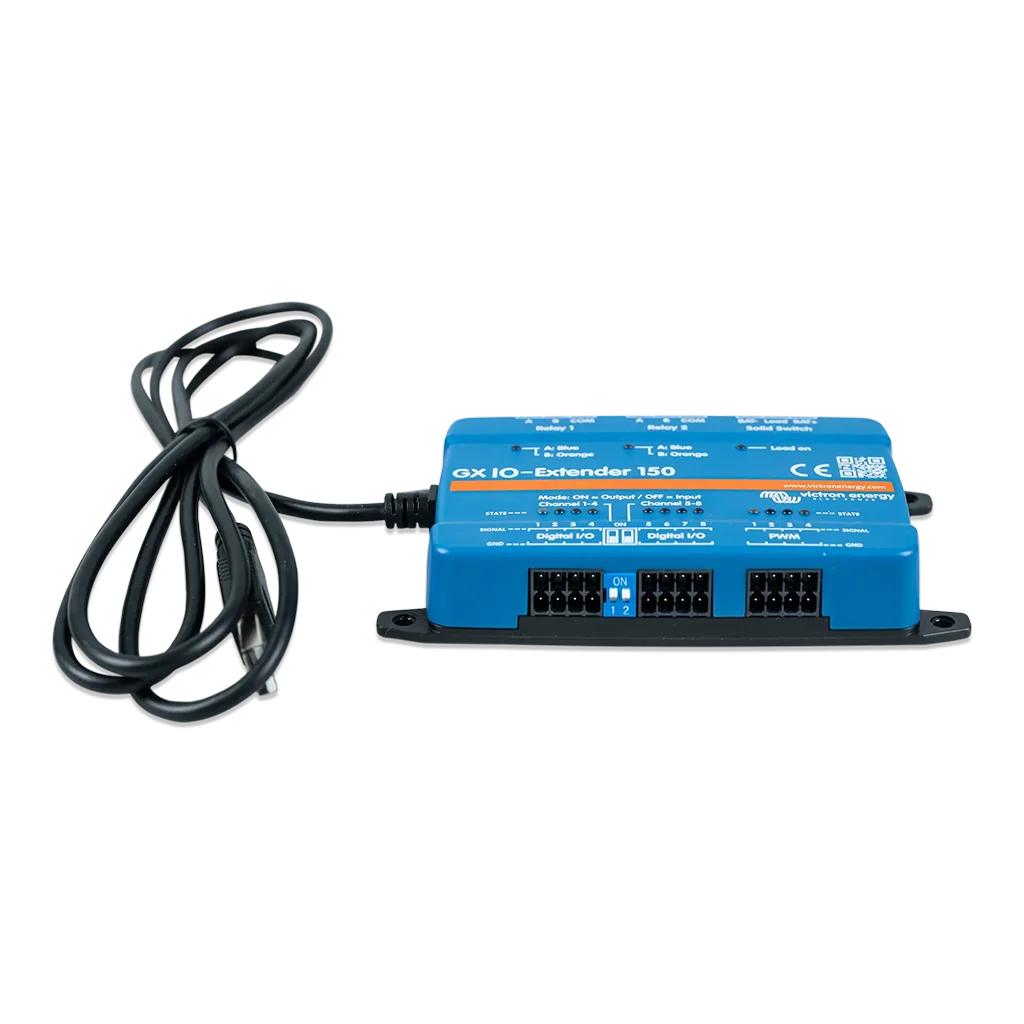

The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.
8 digital I/Os, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs
PWM output for precise control applications
Two latching relays for low-power switching
A solid switch for controlling DC loads that can be resistive, capacitive or inductive
Pluggable spring terminals for fast and secure connections
Configurable via Node-RED for easy automation and custom logic
PWM output for precise control applications
Two latching relays for low-power switching
A solid switch for controlling DC loads that can be resistive, capacitive or inductive
Pluggable spring terminals for fast and secure connections
Configurable via Node-RED for easy automation and custom logic
Dimensions (H x W xD): 123 x 67 x 23 mm
Weight: 0.170 kg
Operating temperature range: -20 C to +50 C
Supply voltage: Powered by USB
Power consumption: < 100 mW when idle, max. 1 W (< 200 mA @ 5V)
Weight: 0.170 kg
Operating temperature range: -20 C to +50 C
Supply voltage: Powered by USB
Power consumption: < 100 mW when idle, max. 1 W (< 200 mA @ 5V)
