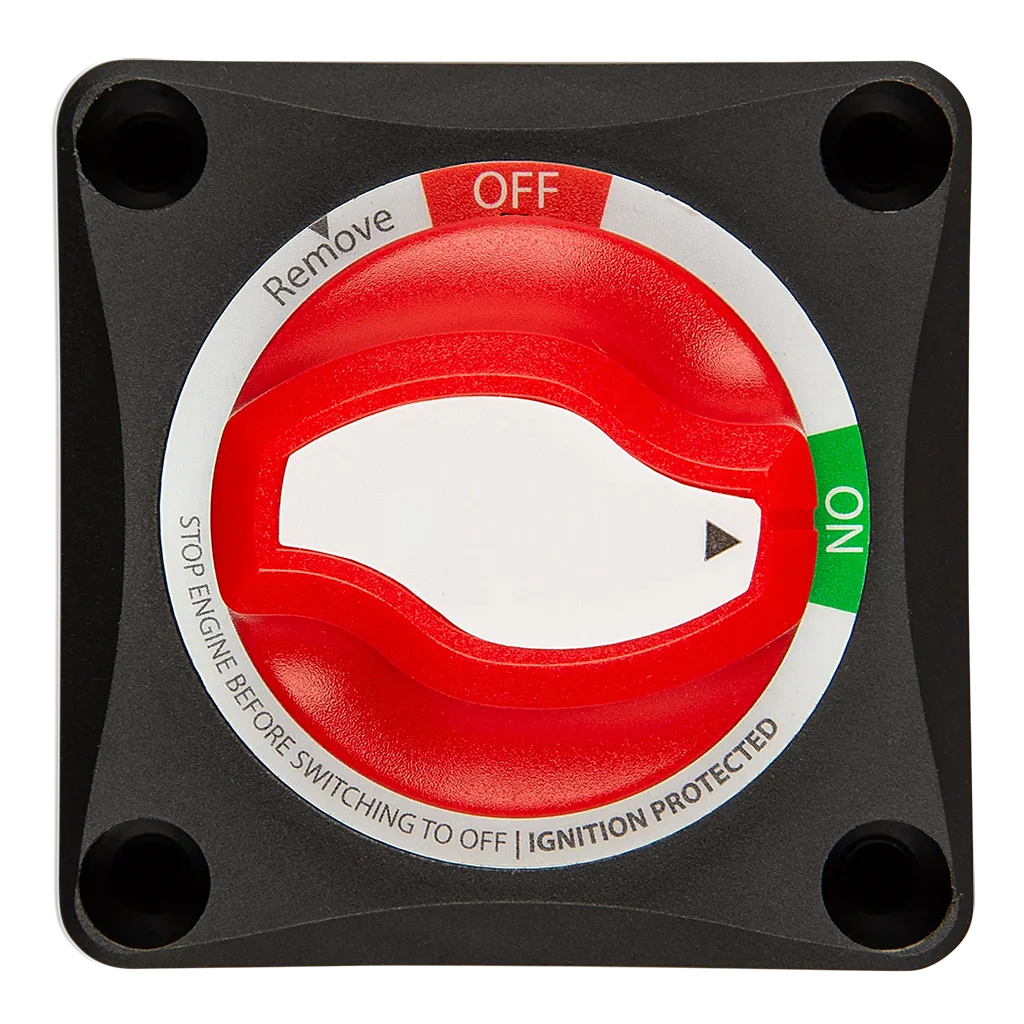

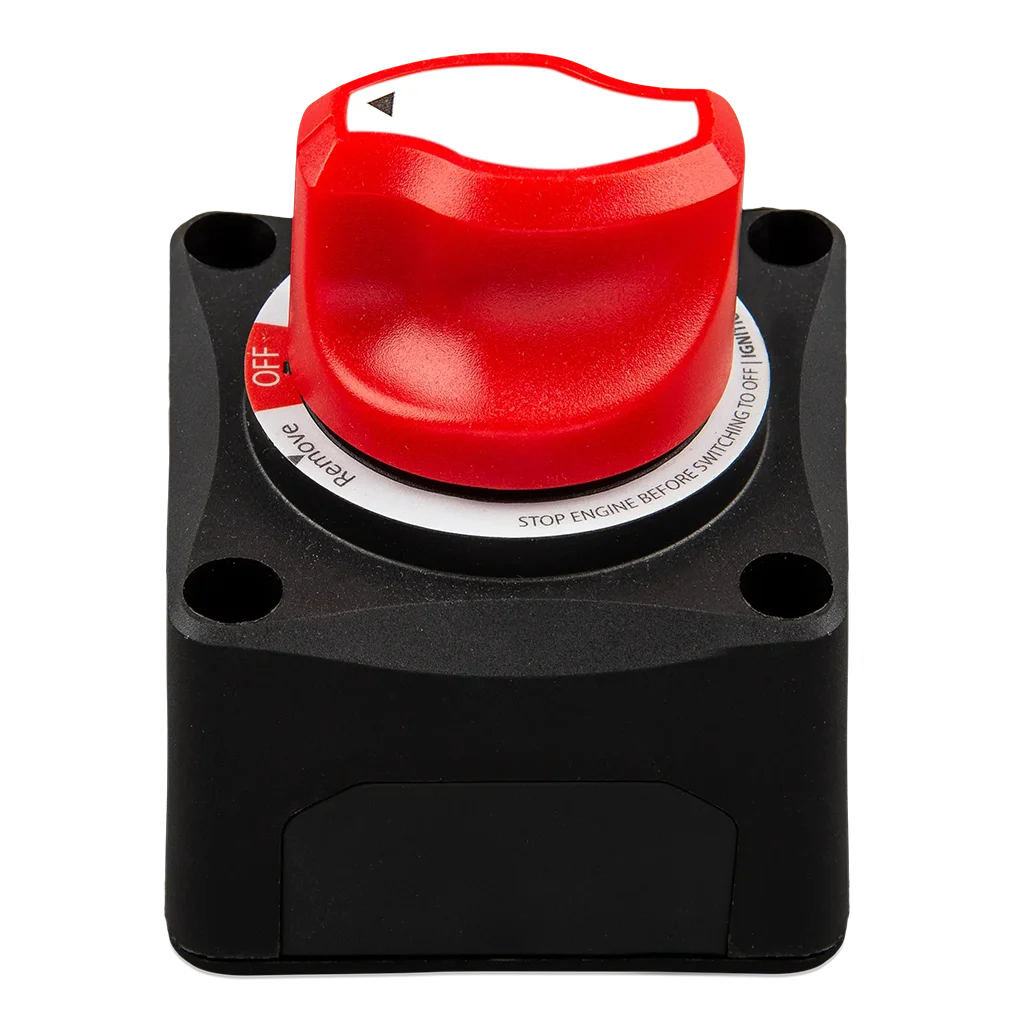

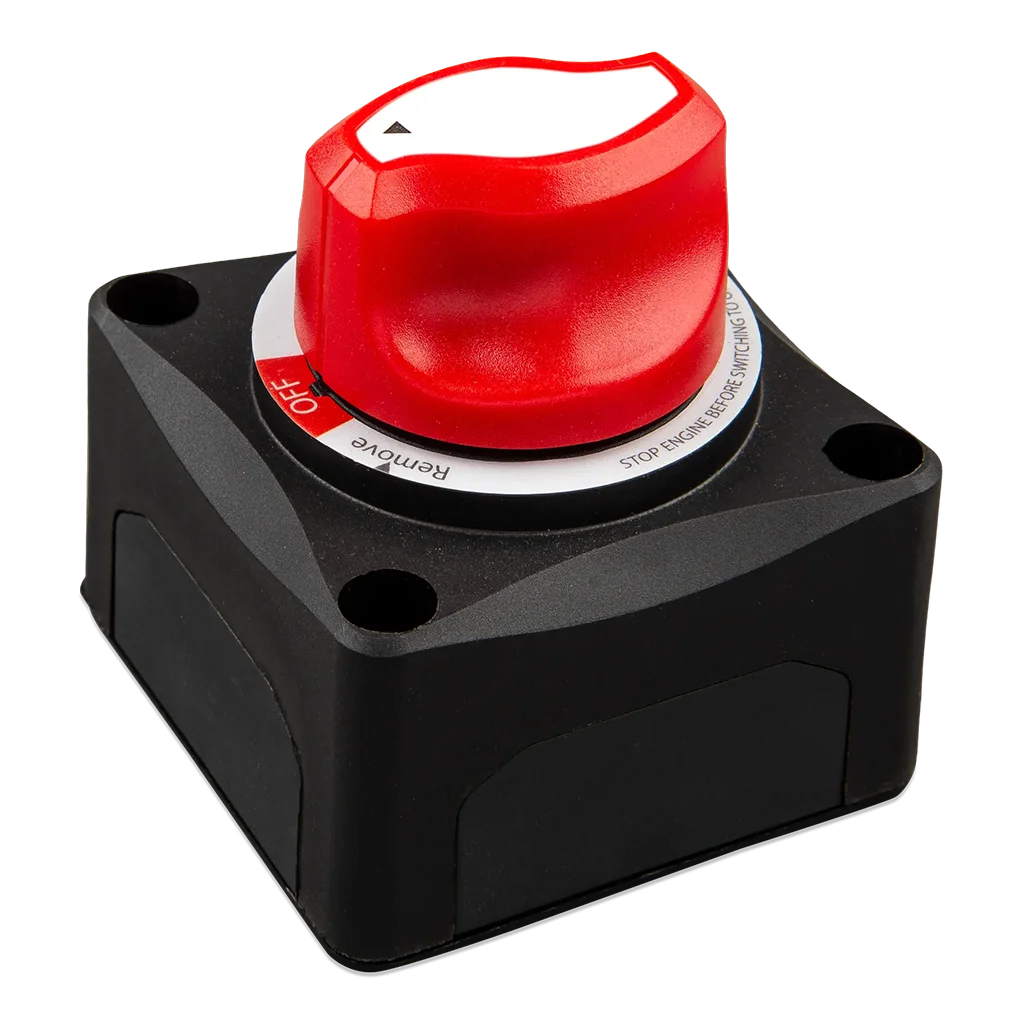

The Victron Energy Battery Switch On/Off 275A is a high-performance, heavy-duty switch designed for safely disconnecting and isolating the battery from the rest of the electrical system. This switch is ideal for marine, RV, and off-grid applications where a reliable, high-current disconnect is required. It can handle up to 275A of continuous current and is built to withstand the harsh conditions of outdoor and mobile environments.
- Rated for continuous current of 275A
- Suitable for DC circuits in 12V, 24V, and other systems
- High-quality, durable construction
- Easy to install and operate
- Simple on/off functionality for secure battery isolation
- Corrosion-resistant materials ideal for marine and outdoor use
- Compact design for space-constrained installations
- Dimensions (LxWxH): 69.5 x 76.3 x 69.5 mm
- Weight: 0.2 kg
- Max. continuous current: 275 A
- One minute rating: 455 A
- Cranking rating: 1250 A
- Maximum operating voltage: 60 V
- Terminal material: Tin-plated copper
- Hex nut material: Tin-plated copper
- Terminal diameter: M10 (3/8 inch / 9.53 mm)
- Recommended torque: 70 lbfinch / 8 Nm
- Base material: Glass fiber reinforced nylon
- Mounting: Surface or rear panel mount
- Ignition protected: ISO8846 / SAE J1171
