Truma Roof flue AKL5x75mm

SKU:

30651-01

EAN:

4052816005355

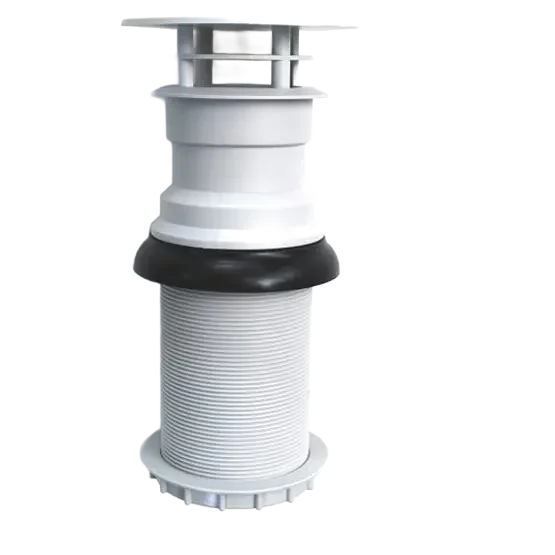

Truma Roof flue AKL5x75mm

The Truma Roof Flue AKL5x75mm (Part No. 30651-01) is an exhaust cowl and chimney assembly designed to vent combustion gases safely through the roof of a caravan, motorhome, or campervan

Commonly used with Truma gas heater systems such as the Trumatic / Truma S3002, S3004, S5002, and S5004 series fires, accepts 65mm diameter stainless flue pipe

Roof Thickness Suitability: Designed for roofs measuring 5 mm to 12 mm thick (with maximum roof thickness accommodation up to 120 mm depending on the full duct setup)

  • Diameter & Size: 70 mm / 75 mm roof flue / chimney assembly (suits exhaust duct AE 5 at 65 mm diameter and insulated duct UR 5 at 75 mm diameter)
  • Compatible Roof Thickness: 5 mm to 12 cm (up to 120 mm)
  • Roof Cowl Top / Cap Dimensions: Approximately 10.5 cm height by 6 cm diameter
  • Installation / Recess Diameter: 70 mm
  • Full Truma Breakdown: 30330-00 -S 3002/ S 3004 roof cowl kit, 30630-02 -Roof cowl AKR, 30651-01 -Roof cowl AKL 5, 70 mm, 30630-03 -Roof cowl AKL, 60 mm, 30630-01 -Roof cowl AK 3, 60 mm, 30620-00 -Exhaust duct support, 30700-03 -Cowl top T-3, 30700-02 -Cowl top T-2, 30010-20900 -Cowl roof KD, 30630-04 -Cowl lead-through UEK, 30690-00 -Cowl extension SKV, 30610-00 -Cowl extension SKD, 30090-00076 -Cowl extension AKV, 30030-04800 -Air intake extension 500 mm
There are currently no documents available for this product.

SKU:

30651-01

Tag:

There is currently no information available for this product
