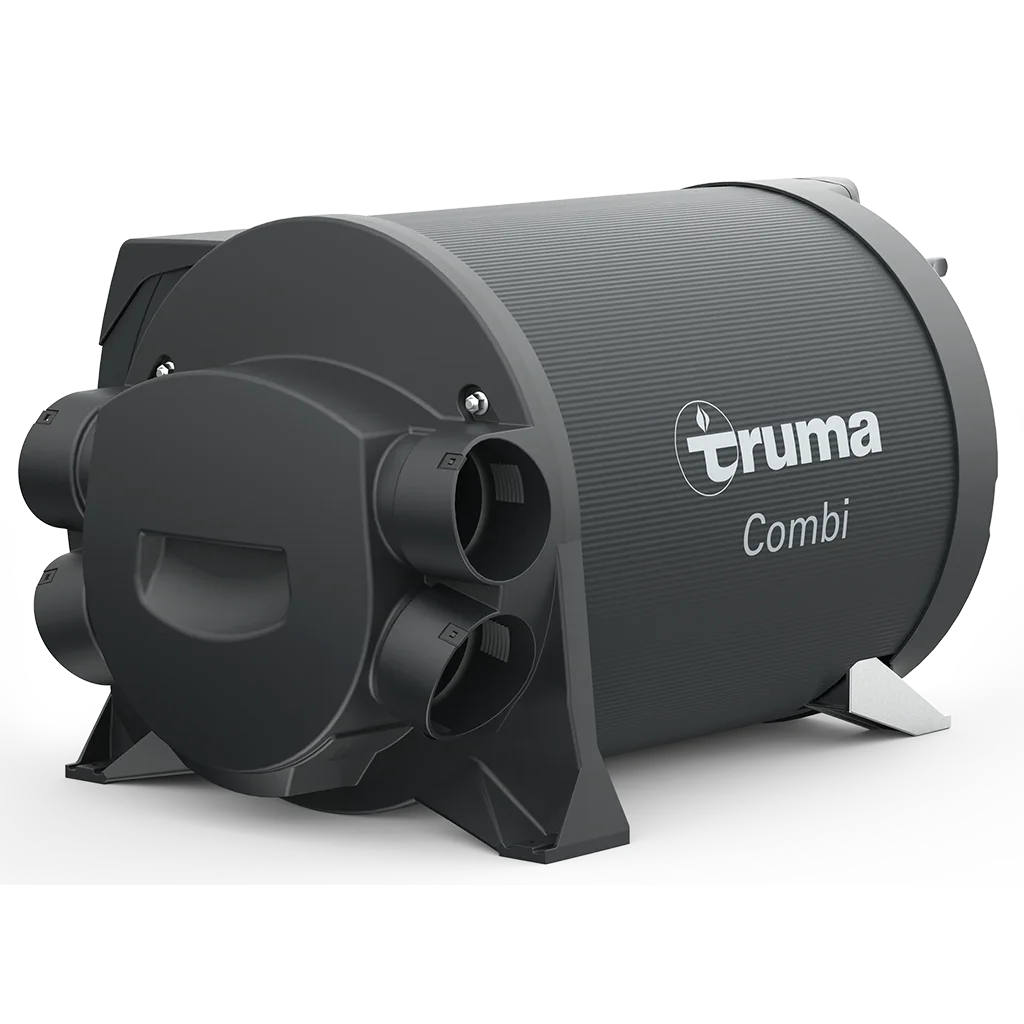

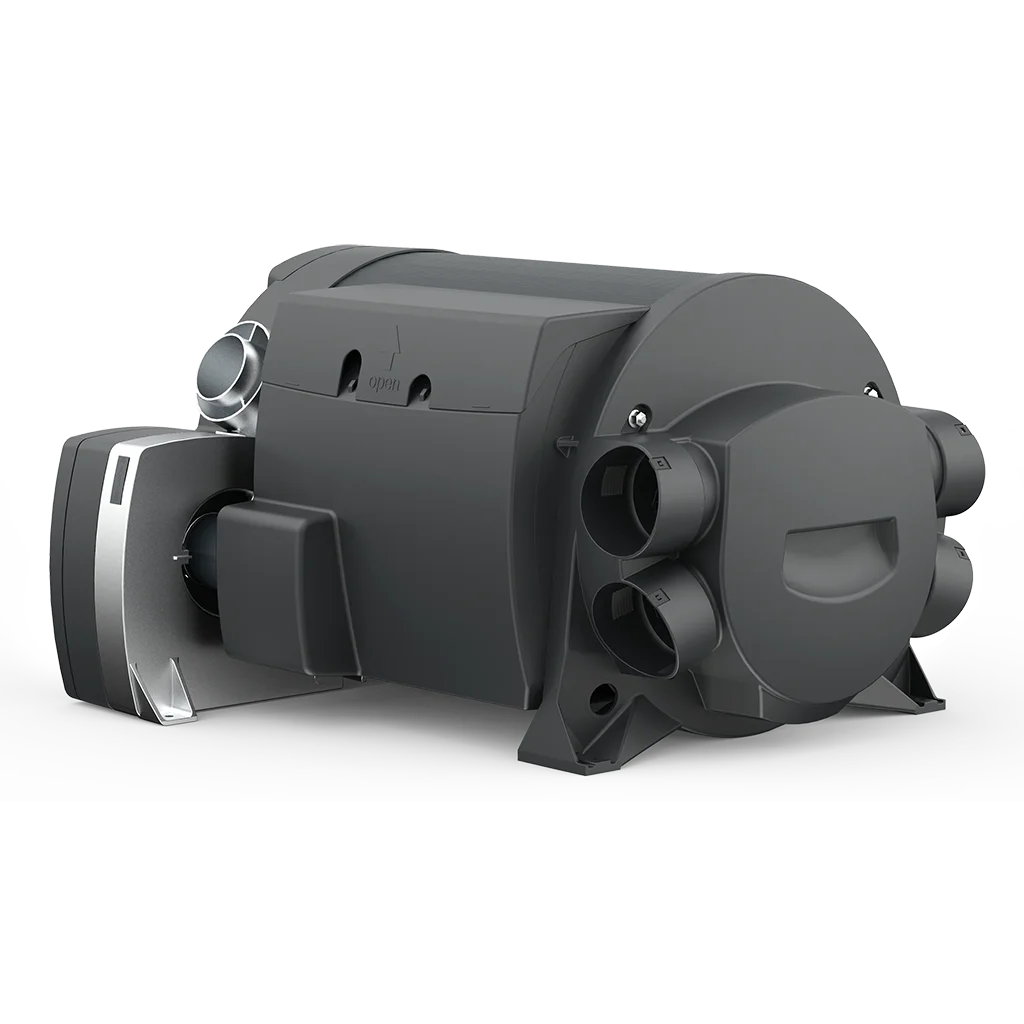

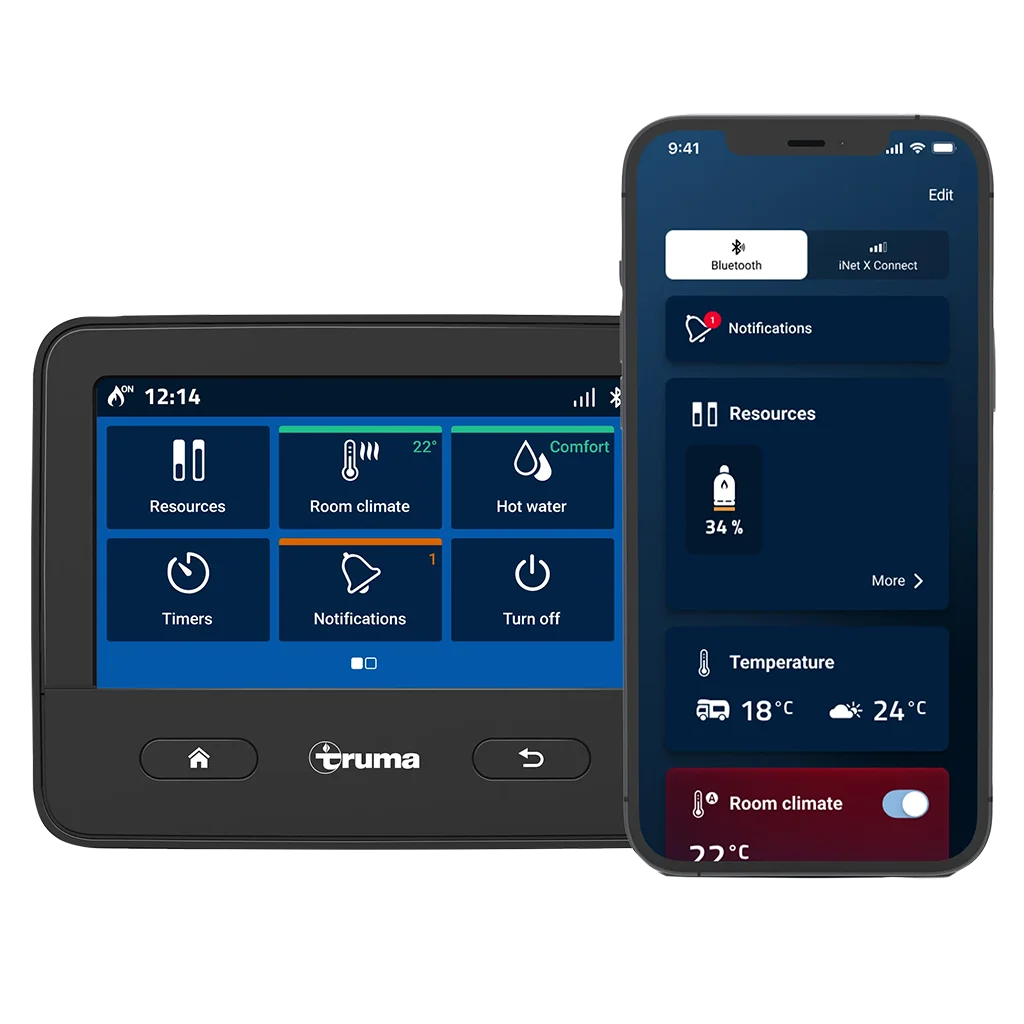

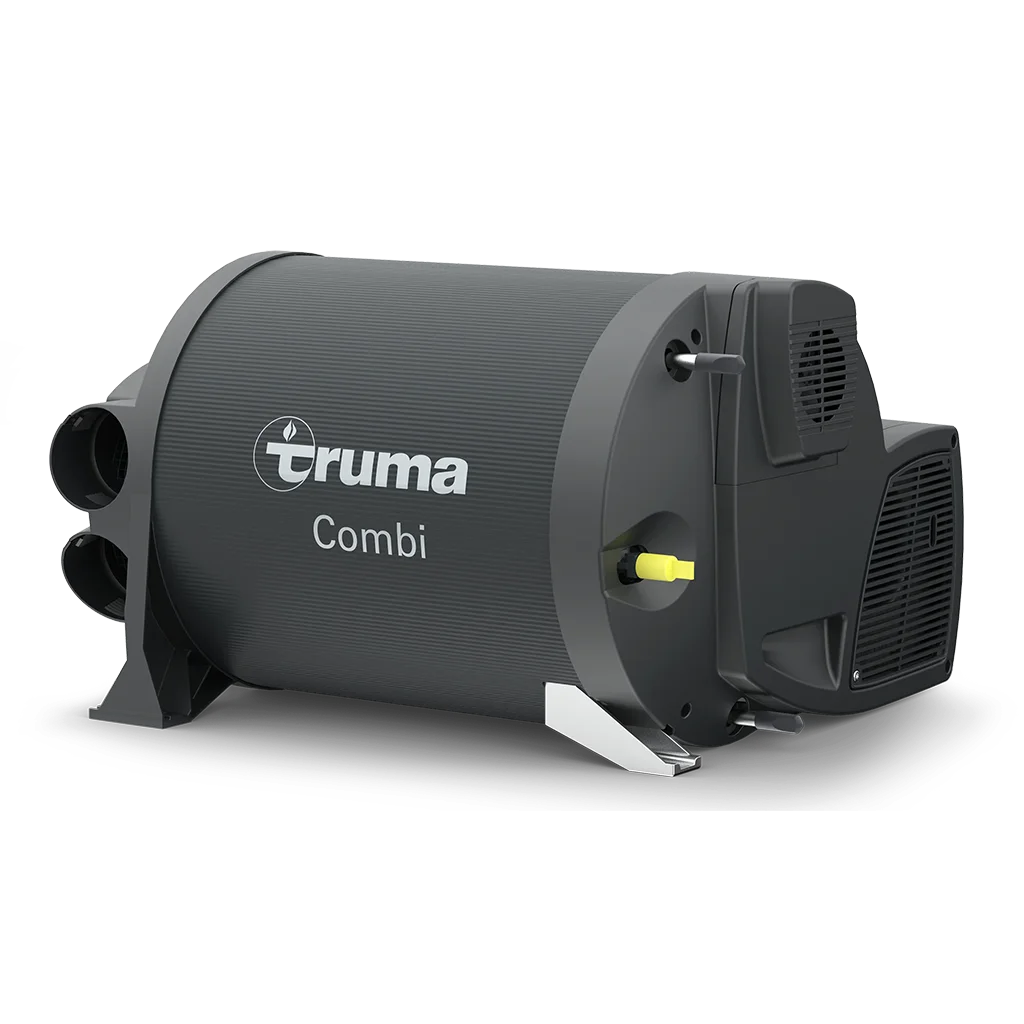

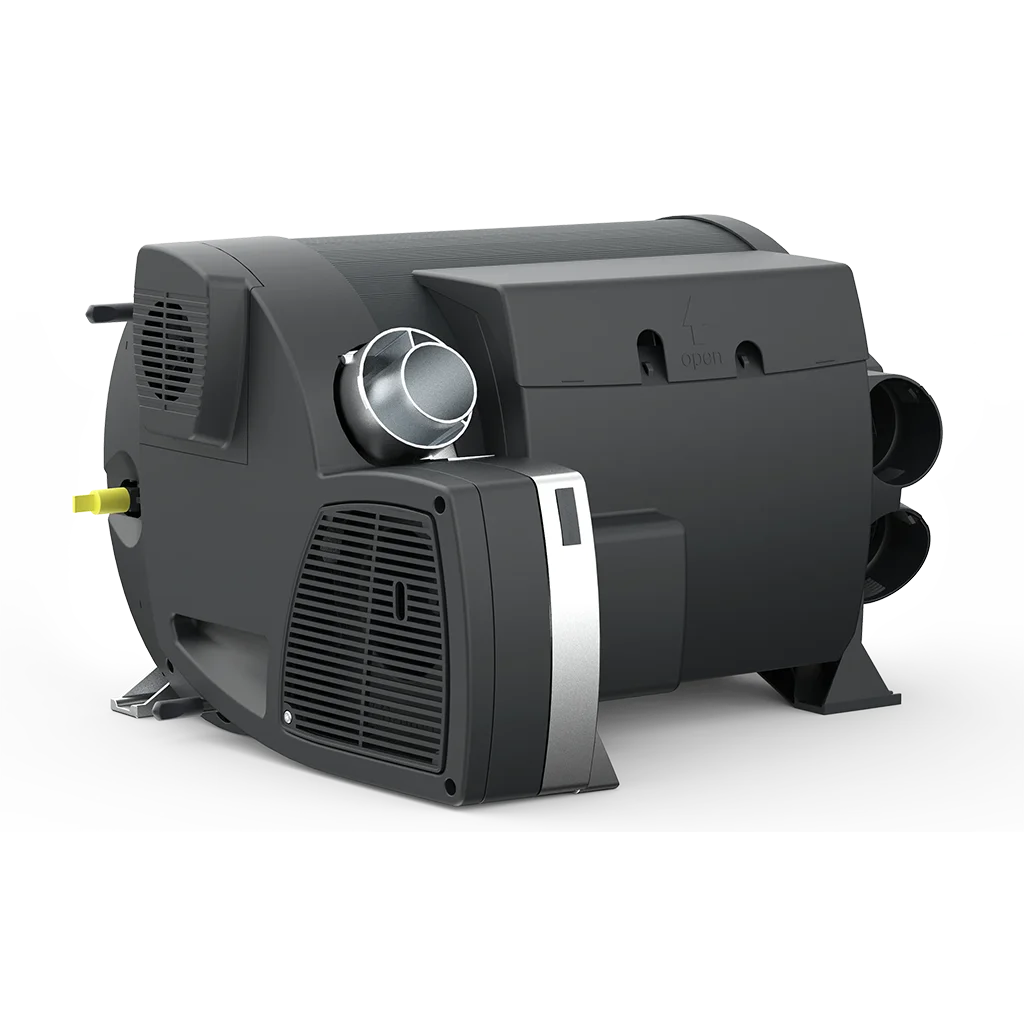

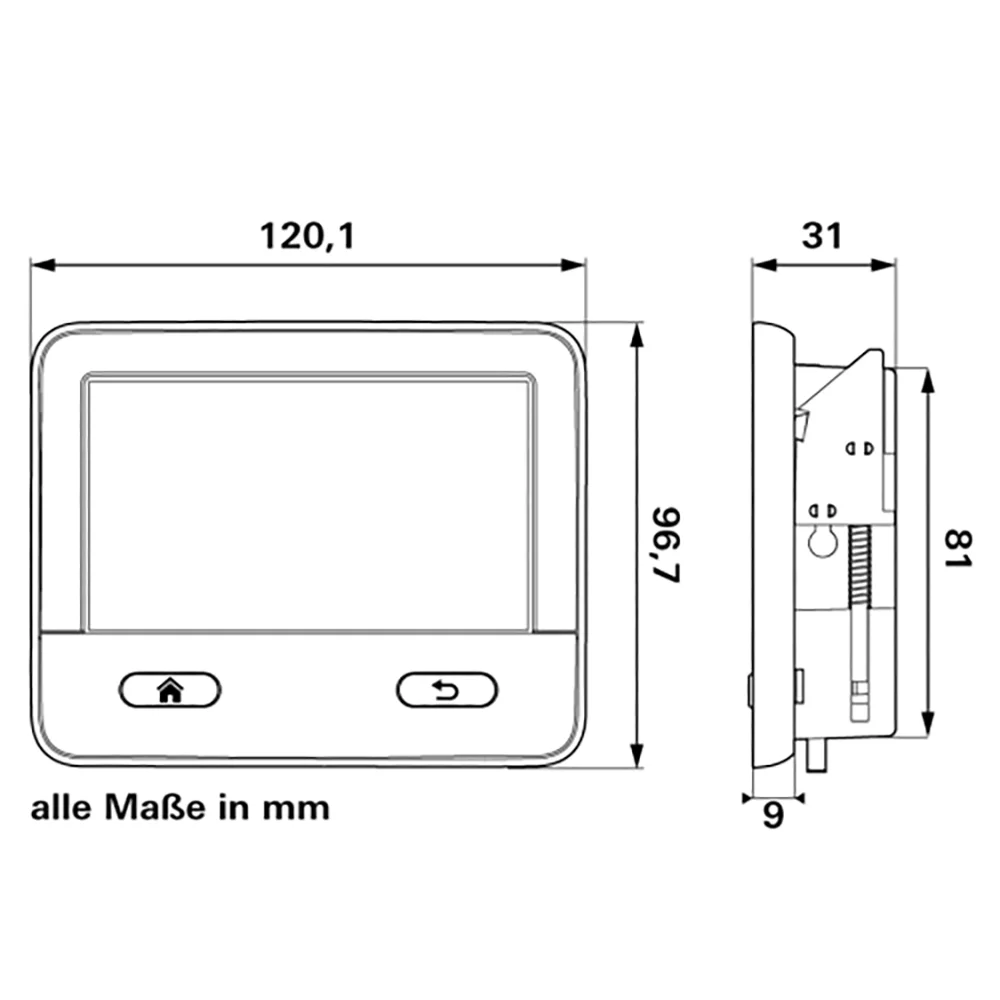

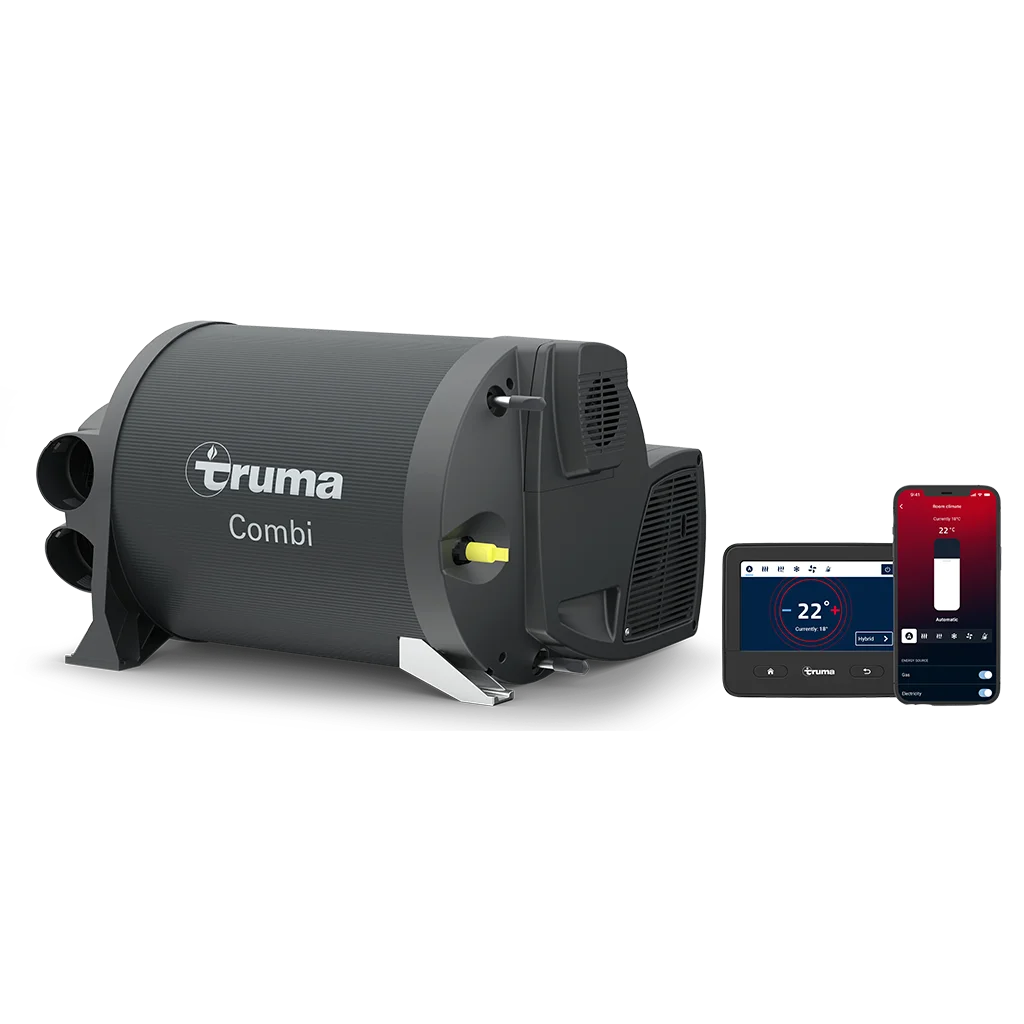

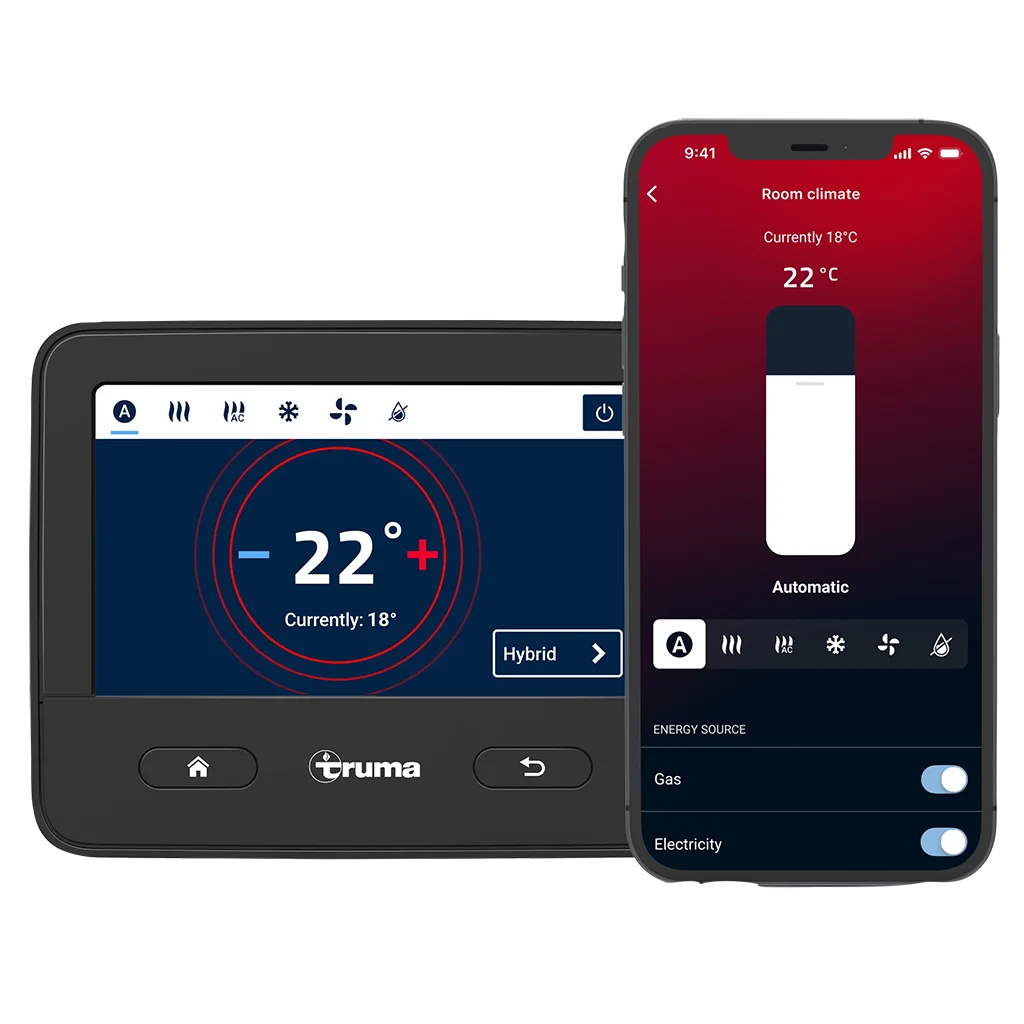

Heater with inet x panel (without waste gas discharge) complete with room thermostat, control panel with 6m cable, fastening parts, current-free frost control safety/drain valve and elbow fitting for 10mm water hoses. JG water kit included

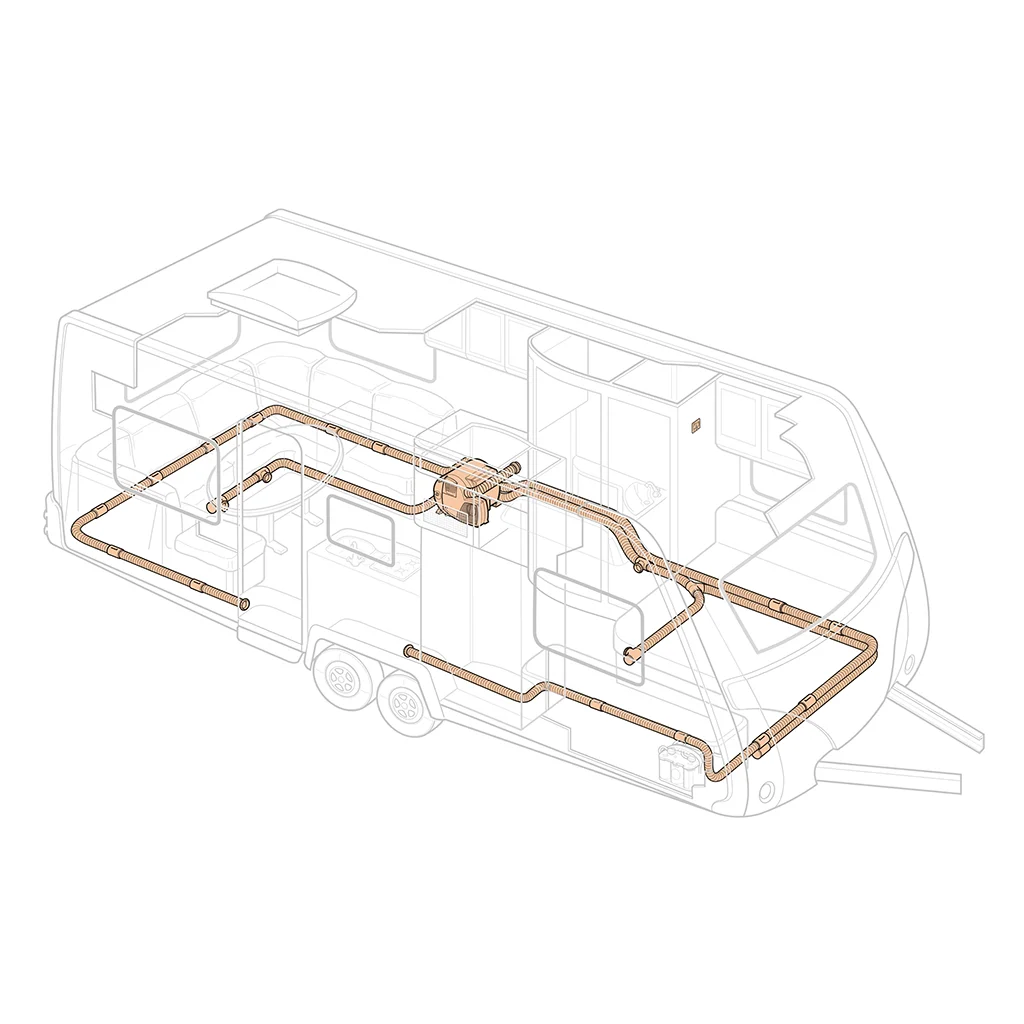

*ducting and outlets sold separately*
With integrated heating rods: Runs in gas, electric or mixed mode
Fast and even water heating in a short time
Extremely low power consumption
Energy sources: Propane / butane + electricity
Operating pressure: 30 mbar
Rated heat output in gas mode: 2000 W / 4000 W / 6000 W
Rated heat output in gas mode: 900 W / 1800 W
Rated heat output in mixed mode: max. 6900 W
Fuel consumption: 160 - 460 g/h
Power consumption (at 12 V): operation of heater and water container: max. 6.5 A for short periods (average approx. 1.4 A)
Power consumption (at 12 V): heating water container: max. 0,4 A
Power consumption (at 230 V): 3.9 A / 7.8 A
Air flow rate (free blowing) with 4 warm air outlets: max. 287 m3/h
Quiescent current: approx. 1mA
Quiescent current consumption CP plus (optional): 3 mA
FrostControl heating element (optional): max. 0,4 A
Water capacity: 10 litres
Pump pressure: max. 2,8 bar
System pressure: max. 4,5 bar
Heating time (from approx. 15 C to approx. 60 C): Water container: approx. 23 minutes
Heating time (from approx. 15 C to approx. 60 C): Heater and water container acc. to EN 15033: approx. 80 minutes
Weight: approx. 15.5 kg
Dimensions (L x W x H): 510x450x300mm
installation dimensions (min.imum dimensions-additional space must be provided for the gas connection. water connections and drain valve (L x W x H) depending on the installation situation): 540 x 500 x 350 mm
Heater (without waste gas discharge) complete with room thermostat, control panel with 6m cable, fastening parts, current-free frost control safety/drain valve and elbow fitting for 10mm water hoses.
