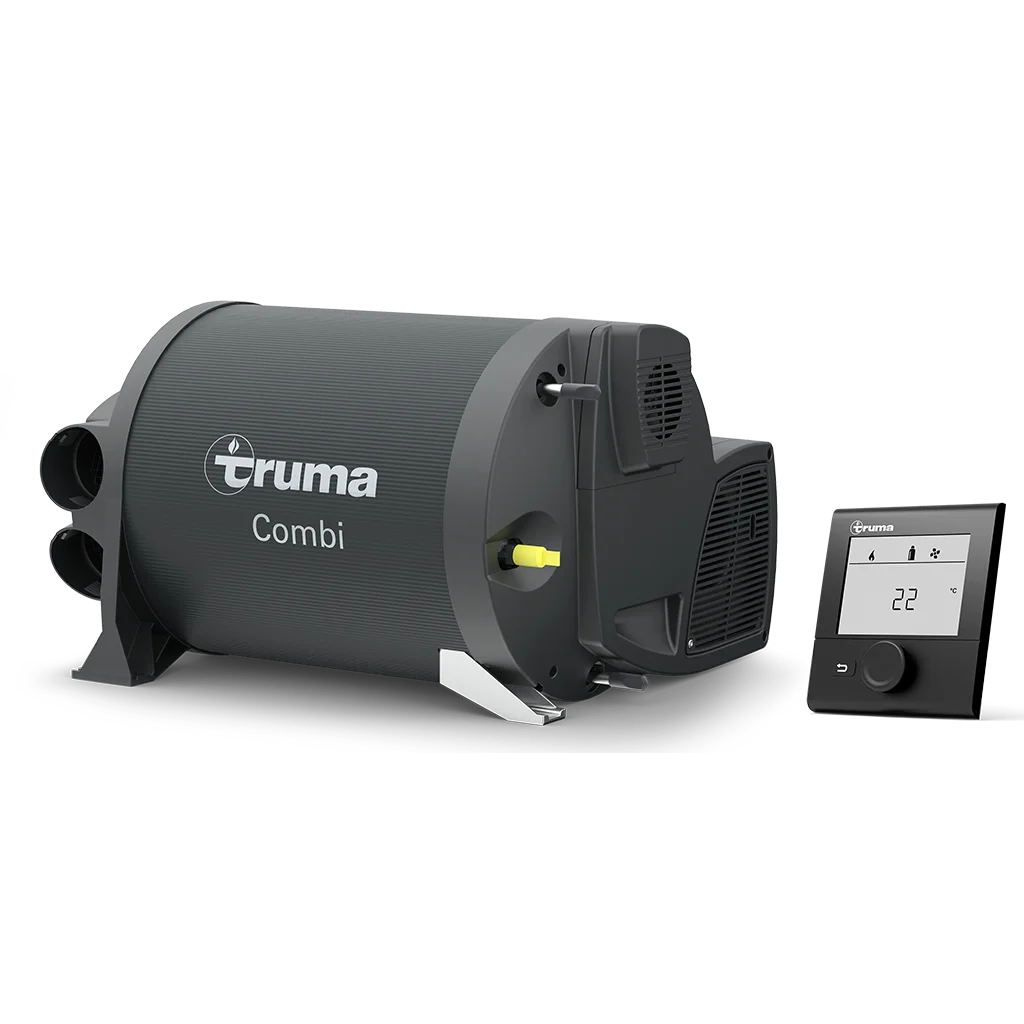

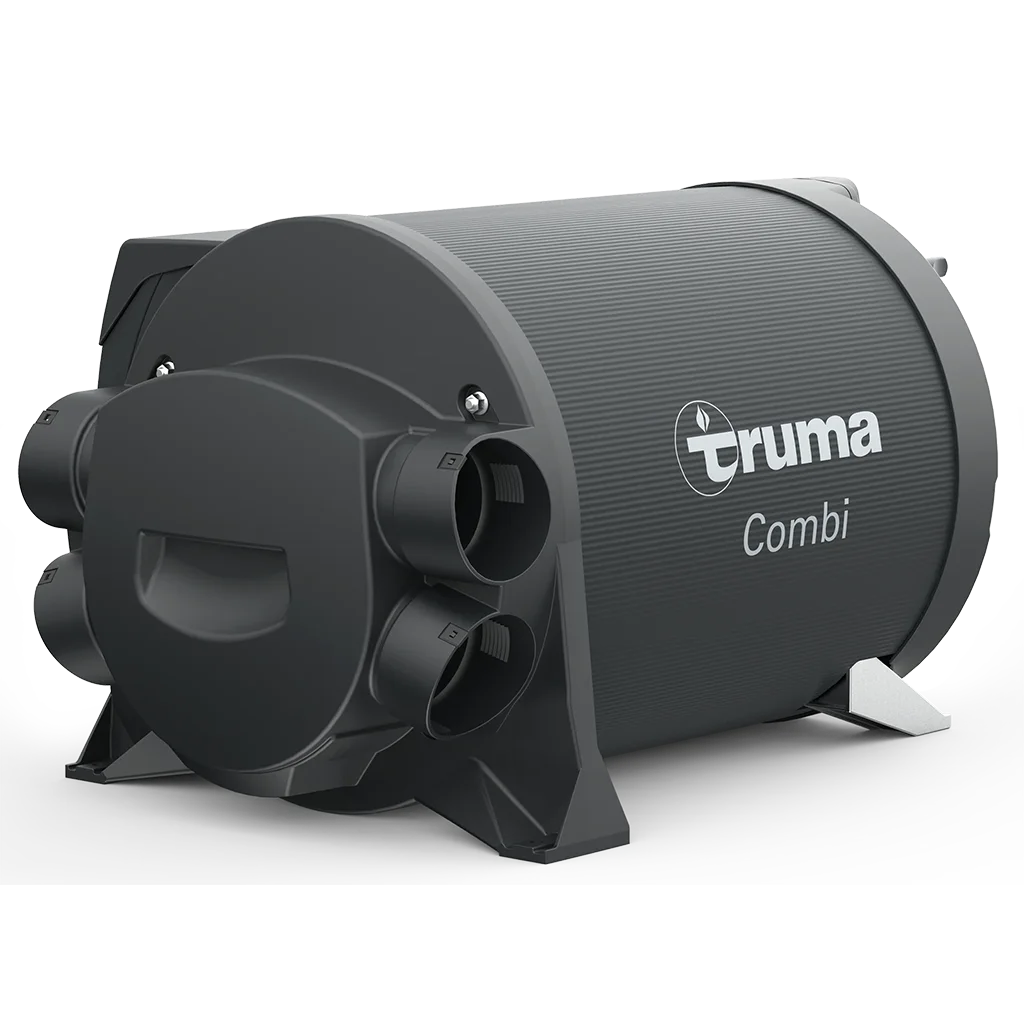

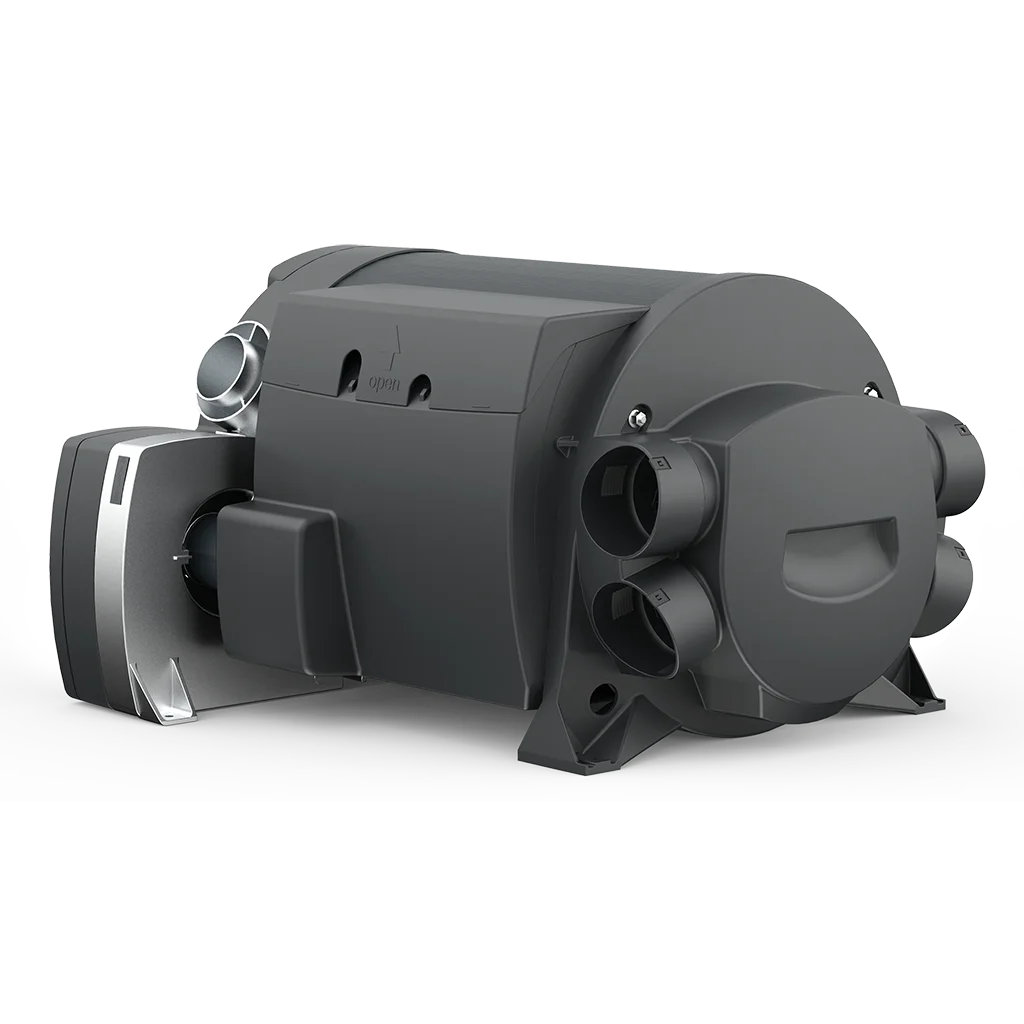

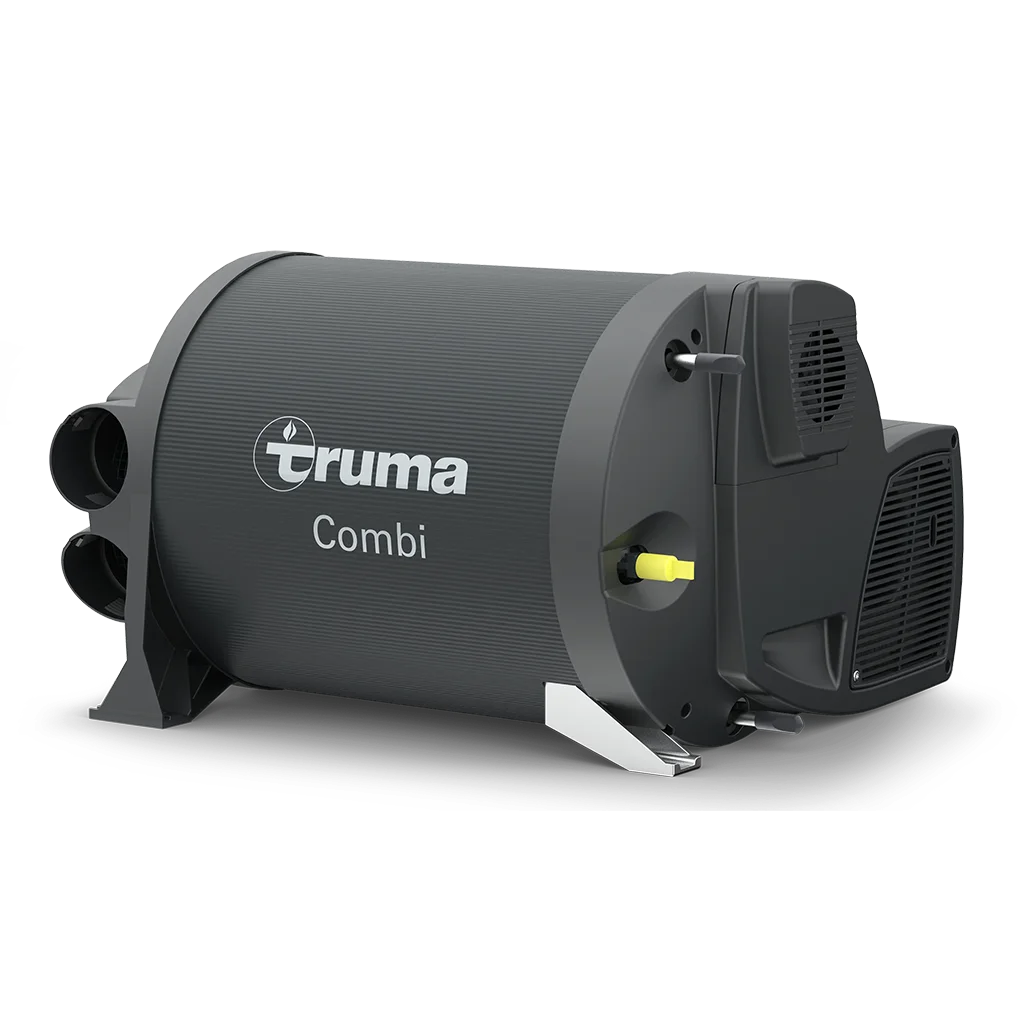

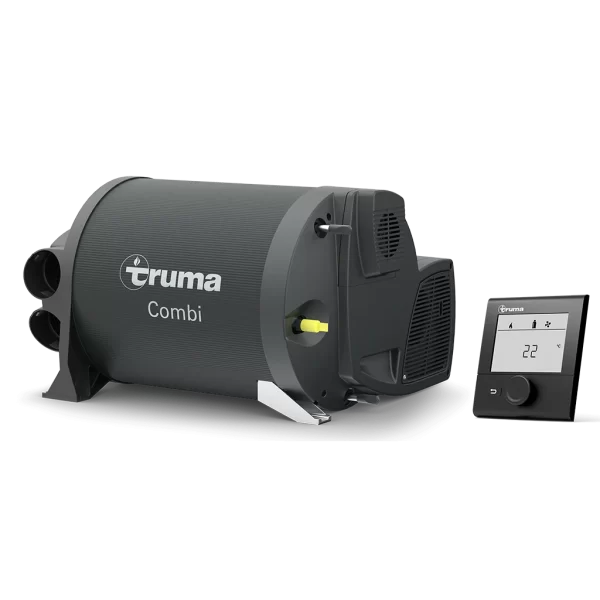

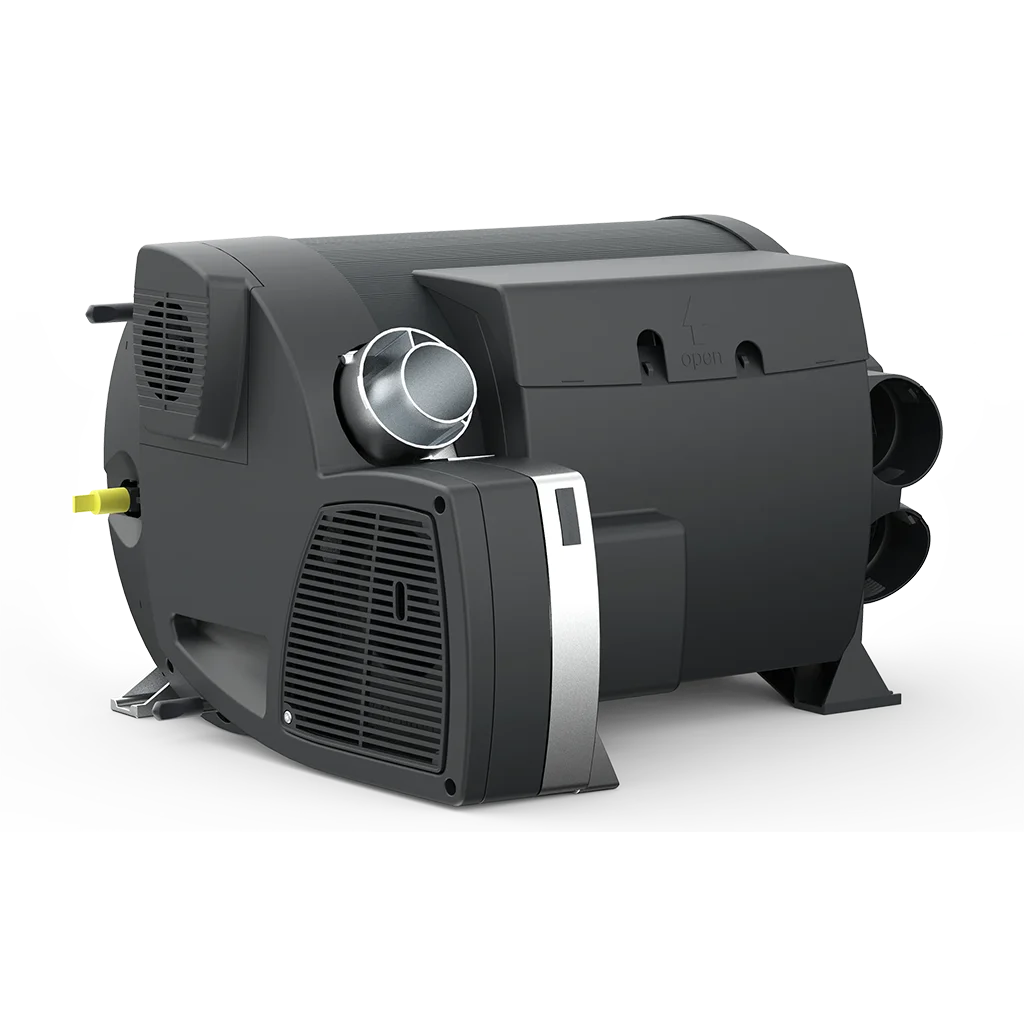

Truma Combi 6E Heater & Boiler with iNet ready CP+ Panel
SKU: 33813-80MB/L
EAN: 4052816005744
Combi 6 E is a warm air heater with integrated hot water generator. Its different from Combi 6 due to its integrated electric heating elements. These allow you to run the heater in gas, electrical or mixed mode. For stationary use at camp sites, you can run the Combi heater with the 12V power supply unit without the vehicle battery.
*ducting and outlets sold separately*
- With integrated heating rods: Runs in gas, electric or mixed mode
- Fast and even water heating in a short time
- Extremely low power consumption
- Energy sources: Propane / butane + electricity
- Operating pressure: 30 mbar
- Rated heat output in gas mode: 2000 W / 4000 W / 6000 W
- Rated heat output in gas mode: 900 W / 1800 W
- Rated heat output in mixed mode: max. 6900 W
- Fuel consumption: 160 460 g/h
- Power consumption (at 12 V): operation of heater and water container: max. 6.5 A for short periods (average approx. 1.4 A)
- Power consumption (at 12 V): heating water container: max. 0,4 A
- Power consumption (at 230 V): 3.9 A / 7.8 A
- Air flow rate (free blowing) with 4 warm air outlets: max. 287 m3/h
- Quiescent current: approx. 1mA
- Quiescent current consumption CP plus (optional): 3 mA
- FrostControl heating element (optional): max. 0,4 A
- Water capacity: 10 litres
- Pump pressure: max. 2,8 bar
- System pressure: max. 4,5 bar
- Heating time (from approx. 15 °C to approx. 60 °C): Water container: approx. 23 minutes
- Heating time (from approx. 15 °C to approx. 60 °C): Heater and water container acc. to EN 15033: approx. 80 minutes
- Weight: approx. 15.5 kg
- Dimensions (L x W x H): 510x450x300mm
- installation dimensions (min.imum dimensionsadditional space must be provided for the gas connection. water connections and drain valve (L x W x H) depending on the installation situation): 540 x 500 x 350 mm
- Heater (without waste gas discharge) complete with room thermostat, control panel with 6m cable, fastening parts, current-free frost control safety/drain valve and elbow fitting for 10mm ø water hoses.
