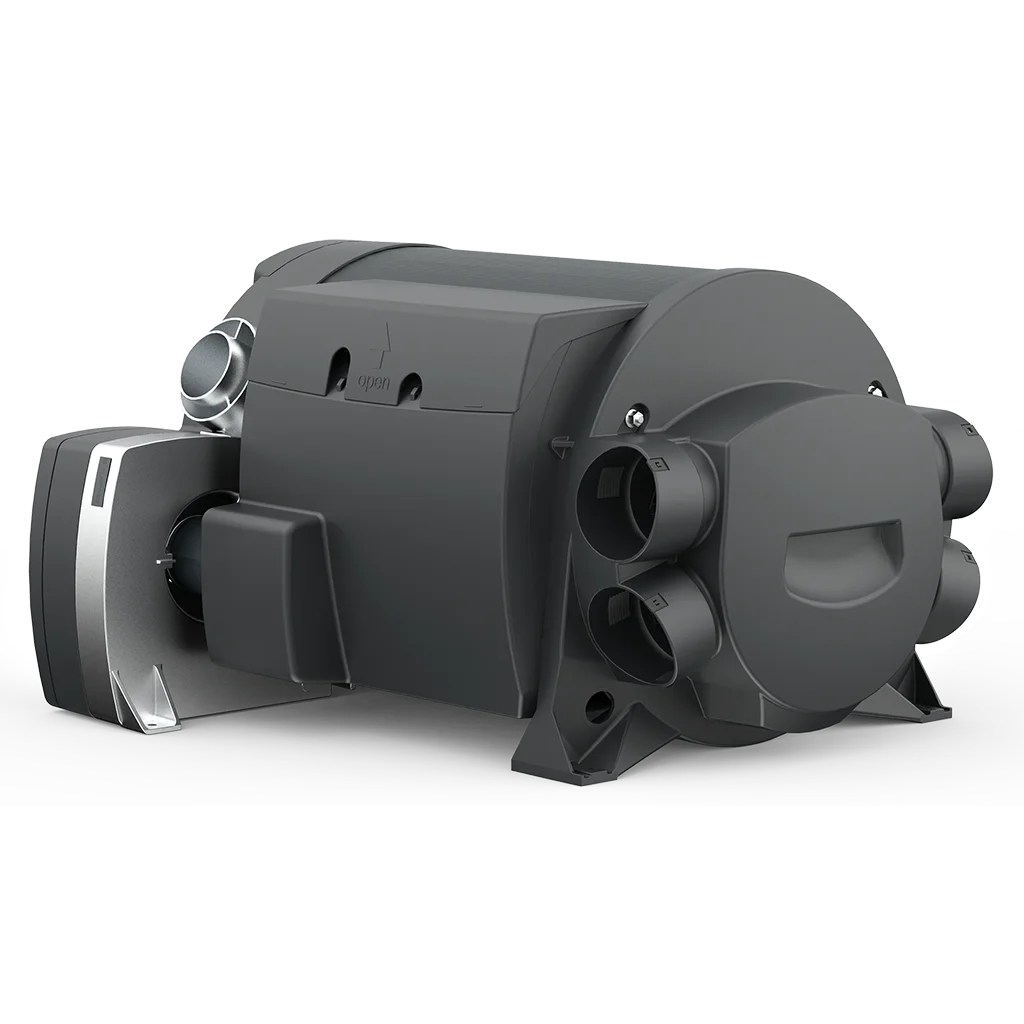

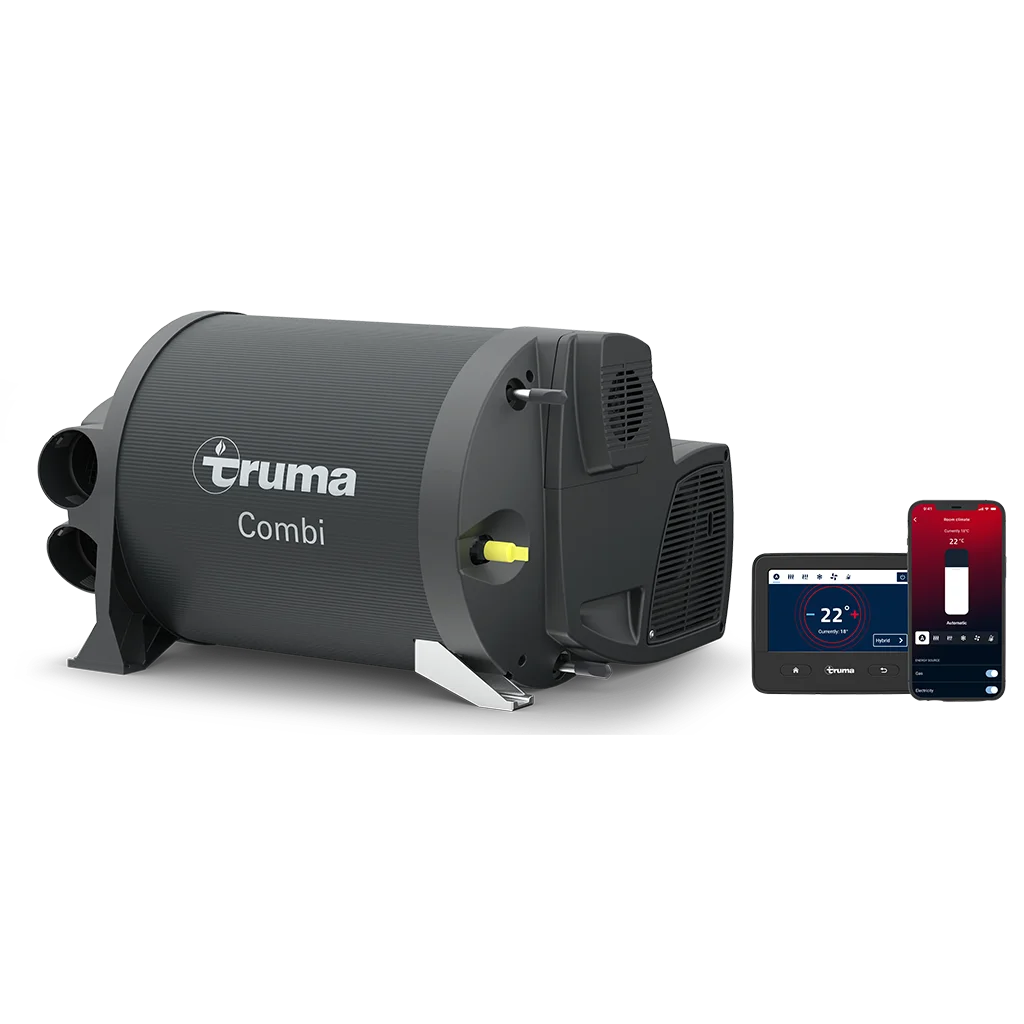

Truma Combi 4E Heater & Boiler with iNetX Panel

SKU:

33713-78MX/L

EAN:

4052816028521

Combi 4 E combines all the benefits of Combi 4 with those of an electric heater. As opposed to Combi 4, it also has integrated heating elements. This allows you to run the heater at camp sites with the 12V power supply unit without the vehicle battery. Combi 4 E uses very little electricity. The heater runs in gas mode for self-sufficient use, in electrical mode at the camp site and in mixed mode when outside temperatures are low. In summer, Combi 4 E heats just the water without running the space heater.

Like all Combi models, Combi 4 E also combines space and water heating in one appliance. The heater provides comfortable warmth in your vehicle in just a few minutes. It also heats the water that you need for showering, washing dishes or washing your hands. And the best thing about it: you only have to install one appliance in your caravan or motor home. This saves space and weight: as opposed to an S heater, there are no obstacles that you have to walk around in your vehicle.

Featuring an integrated 10 litre stainless steel water tank, the combi 4e allows for independent heating of hot water in summer mode as well as both hot water and warm air in winter mode.

Kit contains:
Truma Combi 4E Heater
Truma iNet X control panel
Truma Combi JG assy pack
Truma Combi 6m data cable
Black cowl

ducting & outlets sold seperately

  • With integrated heating rods for additional electric operation
  • Heats the vehicle and heats the water particularly quickly
  • Consumes little energy

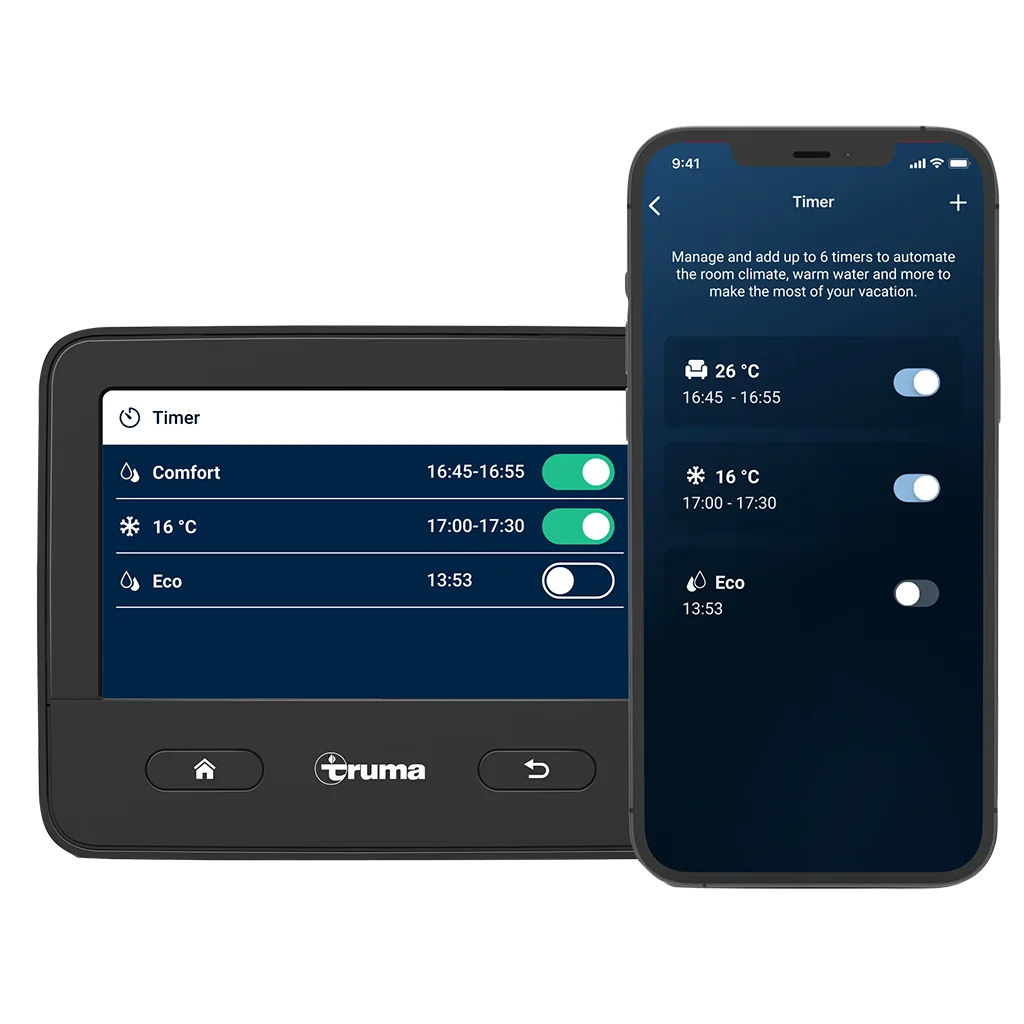

  • Digital iNetx control panel / mobile app - automatic climate control in combination with a Truma air conditioner
  • With integrated heating elements for additional electrical mode
  • Heats the vehicle and water very quickly
  • Uses little energy
  • Many installation options as it is extremely lightweight and compact
  • The warm air from Combi 4 E is distributed optimally via four air outlets
  • Gas, electrical and mixed modes are possible
  • Energy sources: Propane / butane + electricity
  • Operating pressure: 30 mbar
  • Rated heat output in gas mode: 2000 W / 4000 W
  • Rated heat output in electric mode: 900 W / 1800 W
  • Rated heat output in mixed mode: max. 3800 W
  • Fuel consumption: 160 - 335 g/h
  • Power consumption (at 12 V): operation of heater and water container: max. 6.5 A for short periods (average approx. 1.2 A)
  • Power consumption (at 12 V): heating water container: max. 0.4 A
  • Power consumption (at 230 V): 3.9 A / 7.8 A
  • Air flow rate (free blowing) with 4 warm air outlets: max. 287 m/h
  • Quiescent current
  • Quiescent current consumption CP plus (optional): 3 mA
  • FrostControl heating element (optional): approx. 1 mA
  • Water capacity: 10 litres
  • Pump pressure: max. 2.8 bar
  • System pressure: max. 4.5 bar
  • Heating time (from approx. 15 C to approx. 60 C): Water container: approx. 23 min.
  • Heating time (from approx. 15 C to approx. 60 C): Heater and water container acc. to EN 15033
  • approx. 80 min.
  • Weight: approx: 15.5 kg
  • Dimensions (L x W x H): 510 x 450 x 300 mm
  • Installation dimensions (min.imum dimensions-additional space must be provided for the gas connection. water connections and drain valve (L x W x H) depending on the installation situation): 540 x 500 x 350 mm
There are currently no documents available for this product.
