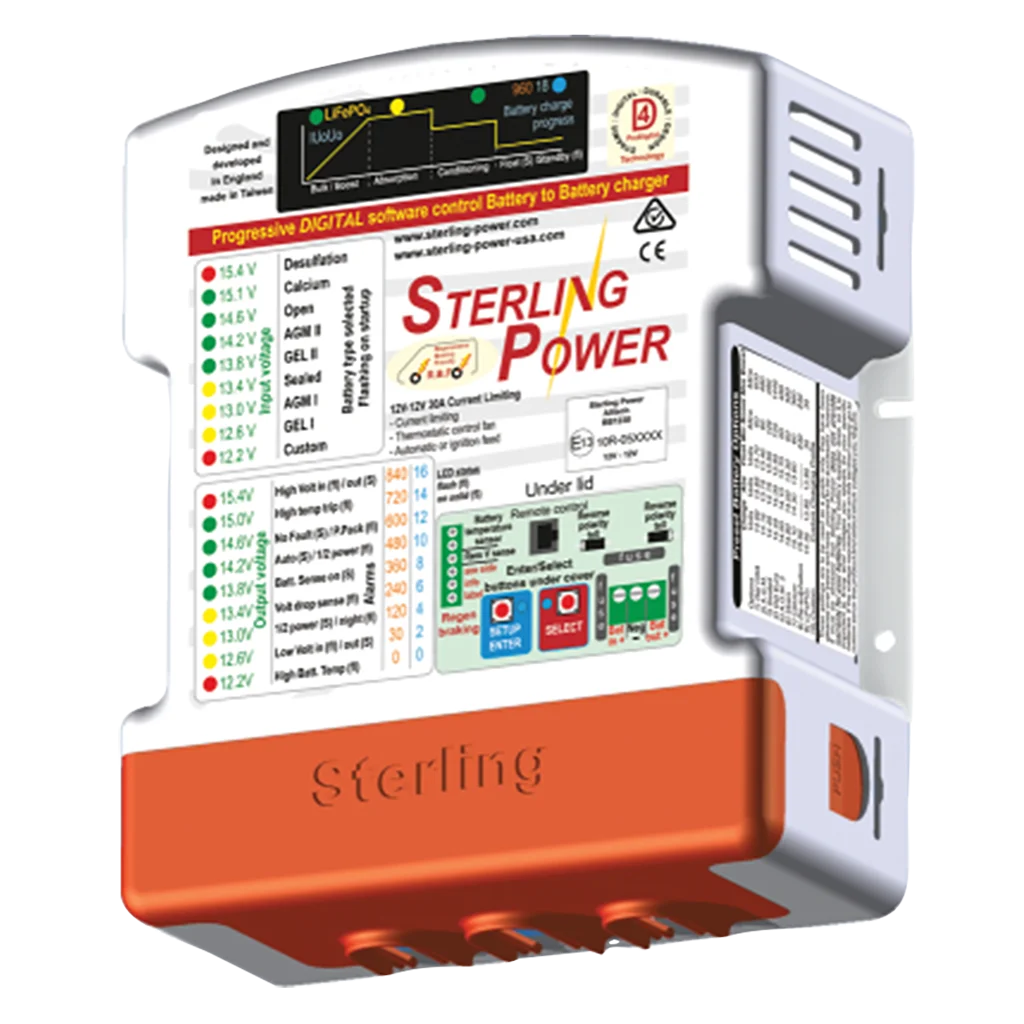

Sterling Battery To Battery 30 amp Charger

SKU:

BB1230

EAN:

5060068294839

Sterling power pro batt ultra compact design battery to battery charger 12v 30a specification

This is the latest model euro 6+ compatible (identifiable by the green strip on front of the casing) – regenerative braking / smart alternator mode can operate without an ignition feed.

The Sterling ‘Pro Batt Ultra’ 12V/12V 30A BB1230 Battery-To-Battery charger offers fast, multi-stage charging of auxiliary batteries in automotive, marine and recreational vehicle applications. Simple to install and configure, it provides a much deeper and faster re-charge than connecting directly to the alternator and is essential if you intend to re-charge a second battery in a modern vehicle where the introduction of ‘smart’ alternators has rendered traditional voltage sensitive relays (VSRs) redundant (please see download section below for more info).

Smart alternators are ECU controlled and their voltage output varies continuously throughout a journey. Often the voltage is too low to provide any charge to the batteries via a VSR and at other times the voltage is very high (with regenerative braking systems) which can damage sealed, AGM & Gel batteries.

Sterling Battery-To-Battery chargers take the variable voltage output from the alternator and boost or reduce it to maintain a stable voltage output according to a multi-stage charging profile, providing a safe, controlled and fast charge for your auxiliary battery. Another benefit is that current flow is limited by the charger’s current rating, eliminating potentially damaging high in-rush currents to deeply discharged batteries and allowing the use of smaller connecting cable compared with VSR split charge systems (which need to handle the max. alternator output). Importantly, once the engine is turned off the charger automatically isolates the starter and leisure batteries from each other to prevent accidental discharge

Please note that this is just the charger and not the complete installation kit

  • high power battery to battery charger
  • 12v 30a specification
  • ideal for commercial/leisure vehicles and marine applications
  • easily installed with no complicated wiring
  • 3 stage battery charging program
  • default mode complements regenerative braking and does not require ignition feed
  • additional modes with ignition feed and timer options
  • 9 preset battery chemistry options plus custom profile settings
  • Input nominal system voltage: 12V DC
  • Output nominal system voltage: 12V DC
  • Current limit: 30A (output limited to this value, input unlimited)
  • Voltage output: Variable dependent on selected charging profile
  • Cooling method: Variable speed fan
  • Cable connection: Screw clamp terminals (max. cable size 16mm2)
  • Ingress Protection rating: IP21 (drip proof - when mounted vertically)
  • Weight: 1.4kg
  • Overall dimensions: 198 (H) x164 (W) x 71 (D) mm
  • Fixing hole dia: 4.5mm
  • Conforms to the following standards: E-Marked (suitable for OEM fitting)
