The Sargent Modular Power System Kit offers a complete, flexible power management solution designed for motorhomes, caravans, and campervans. This system provides 12V and 230V power distribution, allowing you to monitor and control various vehicle accessories such as lighting, heating, and water systems. With its modular design, it can be mounted as a single unit or as separate components, making it ideal for installations in spaces with limited room. The system also features a 4″ touchscreen display for easy operation and intuitive control.This system can be easily expanded through the addition of intelligent CAN Bus accessories like lithium batteries, ultrasonic water sensors, and solar regulators, providing future-proof scalability.
Modular power supply units provide protection and control for all AC and DC circuits

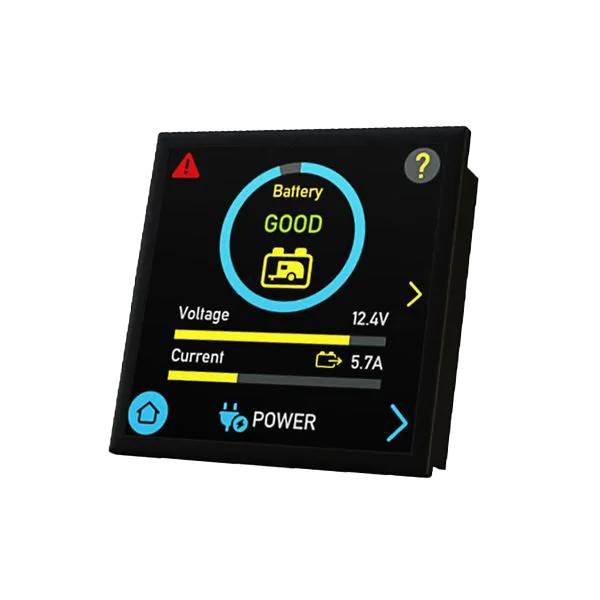

4" Colour Touchscreen provides an easy-to-use interface for controlling lighting, power, water, and environmental sensors.
Multi-stage battery charger offering up to 20Amps for charging leisure or vehicle battery
Fresh and waste tank sensors providing tank monitoring and control panel alerts
Environmental sensors monitor internal temperature, humidity and external temperature
Plug and Play connections enable flexible installation using pre-made harnesses and connector kit
Fully protected with built-in RCD, MCB and 12V fused protection
Expandable System - Easily add CAN Bus accessories like lithium batteries, ultrasonic water sensors, solar regulators, and more
4" Colour Touchscreen provides an easy-to-use interface for controlling lighting, power, water, and environmental sensors.
Multi-stage battery charger offering up to 20Amps for charging leisure or vehicle battery
Fresh and waste tank sensors providing tank monitoring and control panel alerts
Environmental sensors monitor internal temperature, humidity and external temperature
Plug and Play connections enable flexible installation using pre-made harnesses and connector kit
Fully protected with built-in RCD, MCB and 12V fused protection
Expandable System - Easily add CAN Bus accessories like lithium batteries, ultrasonic water sensors, solar regulators, and more

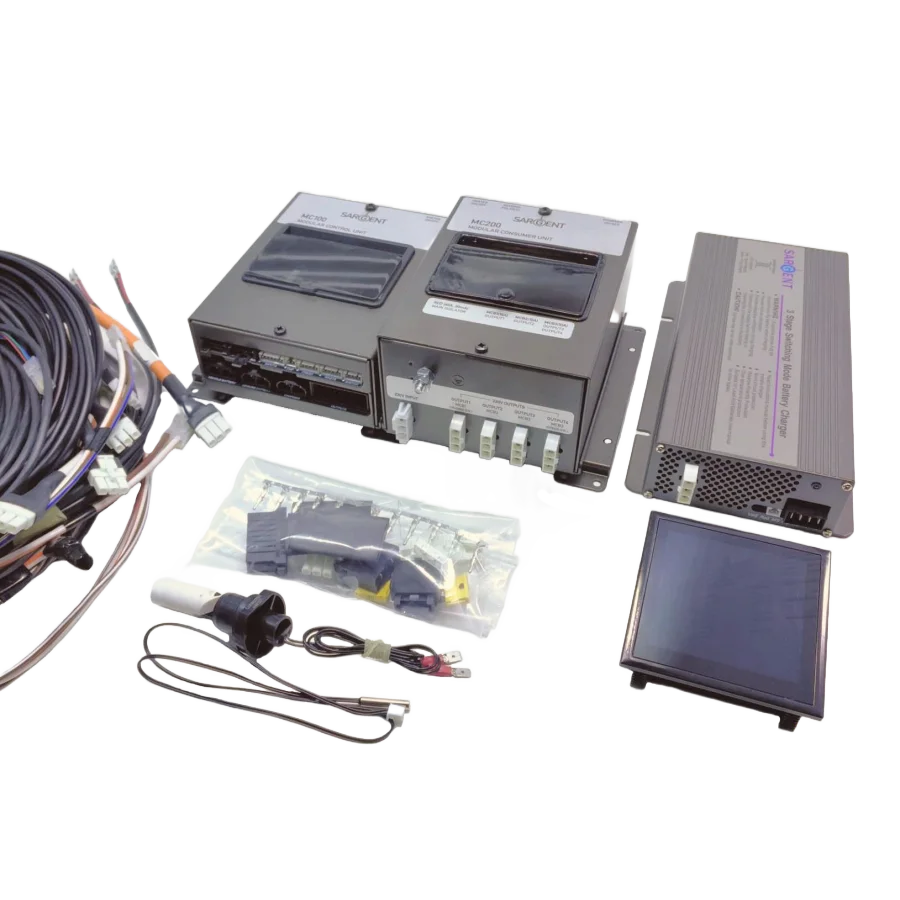

Kit includes: Control Unit, Mains Unit, 4" Display, Battery Charger, Water sensors, Wiring harnesses & Connector/Fuse kit
MC100 Control Unit:
Leisure & Vehicle Inputs: 2 x 20A battery inputs
Charger Input: 1 x 25A input
Outputs: Up to 25A total via 8 blade fuses
Fresh & Waste Inputs: 4 x Fresh tank levels, 1 x Waste level
Temperature Sensor: 1 x external temperature sensor
Data In/Out: 2 x CANBus channels
MC200 Consumer Unit:
Input Voltage: 230V AC @ 0-16A
Input Protection: RCD (1 x 40A, 30mA)
Output Protection: MCBs (1 x 16A, 2 x 10A)
MC100 Control Unit:
Leisure & Vehicle Inputs: 2 x 20A battery inputs
Charger Input: 1 x 25A input
Outputs: Up to 25A total via 8 blade fuses
Fresh & Waste Inputs: 4 x Fresh tank levels, 1 x Waste level
Temperature Sensor: 1 x external temperature sensor
Data In/Out: 2 x CANBus channels
MC200 Consumer Unit:
Input Voltage: 230V AC @ 0-16A
Input Protection: RCD (1 x 40A, 30mA)
Output Protection: MCBs (1 x 16A, 2 x 10A)
