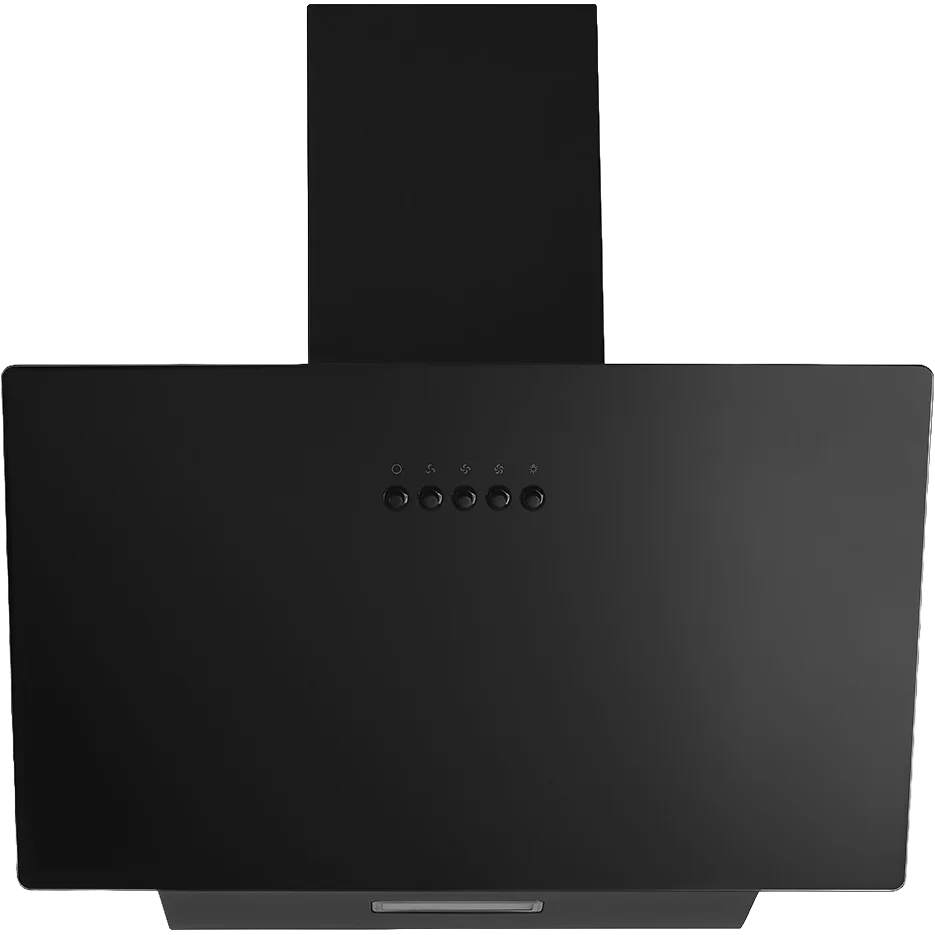

Introducing the sleek and stylish MXAG60BL Black 60cm Angled Extractor. With an A energy rating, this extractor offers exceptional energy efficiency while delivering powerful performance. The intuitive push-button controls make operation effortless, and the bright 2W LED lighting provides excellent illumination for your cooking area. Compatible with the CHA15 filter, this angled extractor effectively removes smoke and odours, maintaining a fresh and clean kitchen environment. Combining modern design with practical functionality, the MXAG60BL is the perfect addition to any contemporary kitchen, ensuring a pleasant and efficient cooking experience.
Features
3 speeds: 1
Height adjustable: 1
Ducted/re-circulating installation: 1
Push button control: 1
Technical Specification
Protection class: Class I
Mains lead length: 1m m
Motor input: 45W W
Outlet diameter: 150 or 125mm mm
Outlet position: Top
Rated electrical power: 47 W
Fuse: 3 A
Required height over electric hobs: 650 mm (min)
Pressure value: 145 Pa
Required height over gas hobs: 750 mm (min)
Extraction Rates And Noise
Noise level speed 1: 55 dBA
Extraction rate speed 3: 300 m3/hr
Noise level speed 2: 62 dBA
Extraction rate speed 1: 214 m3/hr
Extraction rate speed 2: 243 m3/hr
Noise level speed 3: 64 dBA
Filters
Dishwashable grease filter: 1
Type of grease filter: Cassette aluminum
Grease filtering efficiency class: G
Number of layers: 3
Number of charcoal filters (optional): 1
Number of grease filters: 1
Lighting
Wattage of lights: 2W
Lighting energy rating: A
Type of light: LED
Colour temperature: 4000K
Number of lights: 1
Energy
Energy rating: A
Energy consumption per annum: 19 kWh
