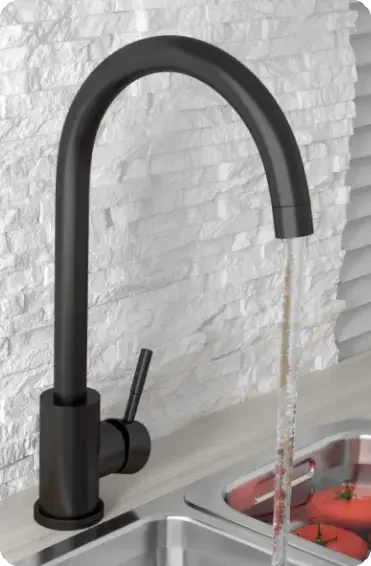

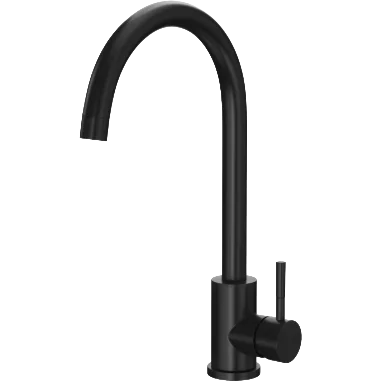

Manhattan kitchen mixer tap with a black finish and curved swivel spout.
Flexible Tails Included: Yes
Number of Tap Holes Required: 1
Handle Type: Lever
Swivel Spout: Yes
Inlet Connection: 1/2" M10
Tap Hole Diameter: 35mm
Tap Type: Mono Mixer
Valve / Cartridge Type: Single Lever Cartridge 35mm
Includes waste: No
Minimum Operating Pressure: 0.5 bar
Maximum Operating Pressure: 5 bar
Number of Tap Holes Required: 1
Handle Type: Lever
Swivel Spout: Yes
Inlet Connection: 1/2" M10
Tap Hole Diameter: 35mm
Tap Type: Mono Mixer
Valve / Cartridge Type: Single Lever Cartridge 35mm
Includes waste: No
Minimum Operating Pressure: 0.5 bar
Maximum Operating Pressure: 5 bar
Tap Hole Diameter: 35mm
Height 367mm
Width 52.5mm
Weight 1.4kg
Operating Pressure: Minimum: 0.5 bar, Maximum: 5 bar
Inlet Outlet: Inlet connection 1/2" M10
Flow rates: - At 0.2 bar: 3.8 l/min
At 0.5 bar: 5.4 l/min
At 1 bar: 7.2 l/min
At 2 bar: 10.8 l/min
At 3 bar: 12.4 l/min
Height 367mm
Width 52.5mm
Weight 1.4kg
Operating Pressure: Minimum: 0.5 bar, Maximum: 5 bar
Inlet Outlet: Inlet connection 1/2" M10
Flow rates: - At 0.2 bar: 3.8 l/min
At 0.5 bar: 5.4 l/min
At 1 bar: 7.2 l/min
At 2 bar: 10.8 l/min
At 3 bar: 12.4 l/min
There are currently no documents available for this product.
