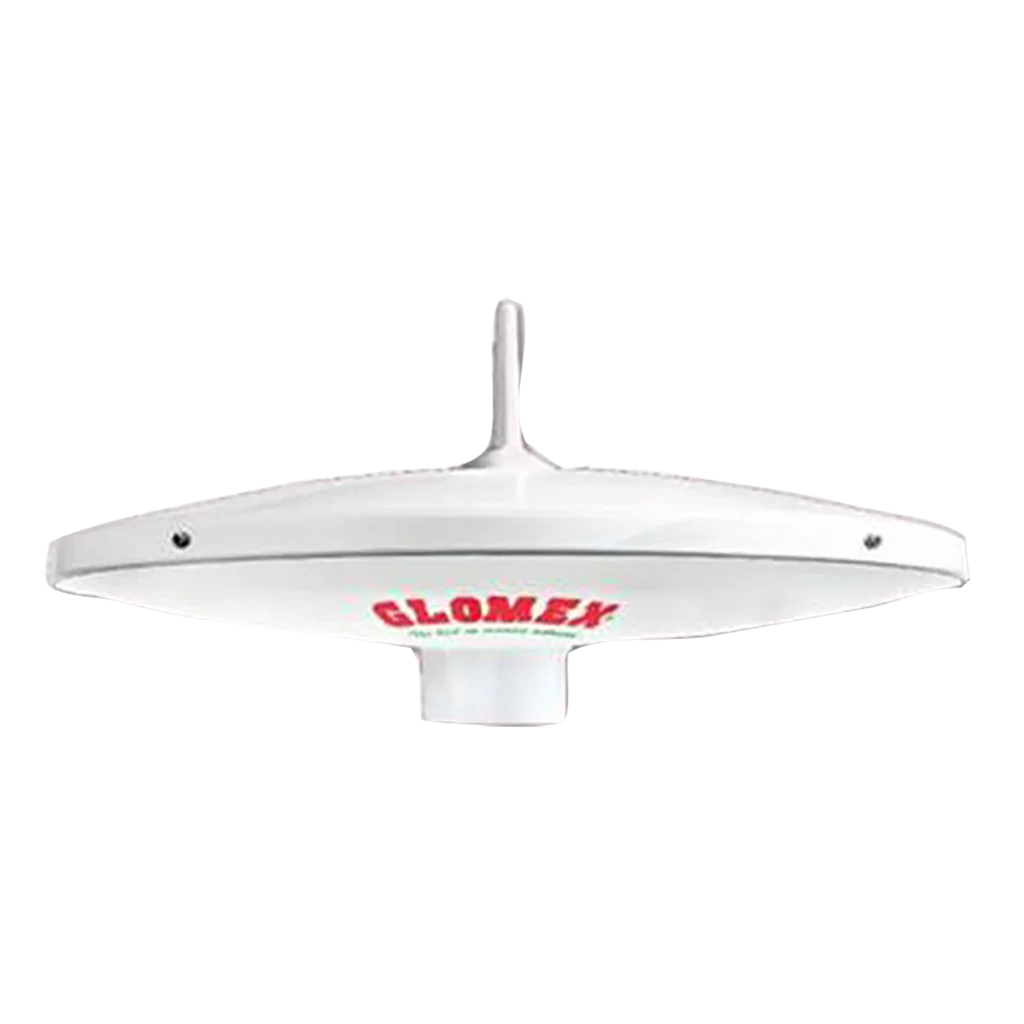

Oasis agc makes your life easier and more comfortable with the new and innovative automatic gain control amplifier. thanks to the new amplifier you have only to turn on the tv, stay comfortably seated and enjoy your favourite full hd programs; oasis agc (diameter: 250mm / 10) will adjust by itself the gain of the tv signal to ensure the best possible reception of television broadcasts.

With conventional amplifiers, in fact, you have to manually adjust the tv signal gain by lowering the amplification when the signal is high and by increasing the amplification when you are far from the tv transmitter. with the new oasis agc, everything will happen automatically and the innovative amplifier can be placed in a hidden location inside the rv. oasis agc is easy to install and provided with all necessary accessories for installation: support for roof installation, 5m (16.5) coaxial cable, 1,5m (5) tv cable and agc amplifier.

*supplied accessories:

Automatic amplifier

5 m (16,4′) coaxial cable to connect the antenna with the amplifier

1,5 m (5′) coaxial cable to connect the amplifier to the tv / decoder

*technical specifications

Antenna dimensions;250 x 205 mm (10×8”)
Base diameter;25 mm (1”)
Antenna weight;350g (12,34oz)
Angle of reception;360°
Frequency range;40/890 mhz
Gain average;26 db
Noise factor;2,2 db
Impedance;75 ohms
Amplifier adjustable gain;Yes
Amplifier by-pass;No
Power consumption;20 ma
Power supply;12/24 vdc
Tv set max;2
Radome type;U.V. resistant asa
Termination;F connector
Polarization;Horizontal and vertical
