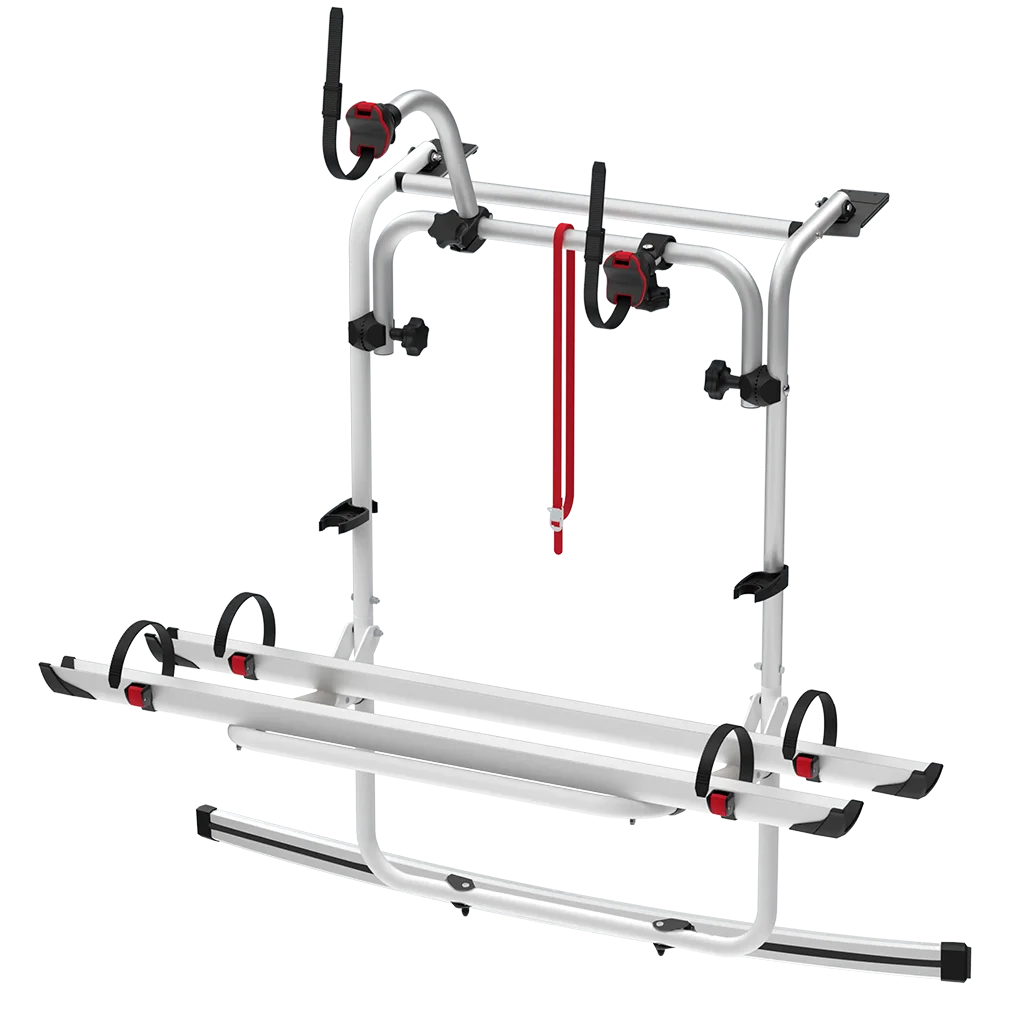

Designed for Volkswagen Caddy models from 2016 to 2020
Mounts directly to the tailgate – no drilling required
Carries 2 bikes as standard, expandable to 4 bikes with additional Fiamma accessories
Tailgate remains operable with rack mounted (when bikes are not loaded)
Adjustable upper structure for precise positioning of Bike-Blocks
Lower tensioning system ensures secure attachment to the vehicle
What’s Included
Bike-Block Pro 1 & Bike-Block Pro 3 (locking systems)
Security Strip
2 x Rail Plus (bike rails)
Mounting Brackets
Specifications
Colour: Aluminium
Bike Capacity: 2 (standard), 4 (max with accessories)
Max Load: 60 kg
Mounting Position: Tailgate
Vertical Wheelbase: 113 cm
Horizontal Wheelbase: 68 cm
Dimensions: 138 x 59 x 113 cm
Upper brackets
Designed to follow the shape of the vehicle
Curved bottom fixing-bar
For greater adhesion to the tailgate
Rail Plus
New design for increased torsion and flexural strength
Bike-Block
To securely lock the bike
Telescopic rail support base
To transport up to 4 bikes
Installation
On the tailgate of the vehicle
Designed to follow the shape of the vehicle
Curved bottom fixing-bar
For greater adhesion to the tailgate
Rail Plus
New design for increased torsion and flexural strength
Bike-Block
To securely lock the bike
Telescopic rail support base
To transport up to 4 bikes
Installation
On the tailgate of the vehicle
Vehicle type - Campervans
Weight - 11.7kg
Max load - 60kg
Colour - Aluminium
Weight - 11.7kg
Max load - 60kg
Colour - Aluminium
