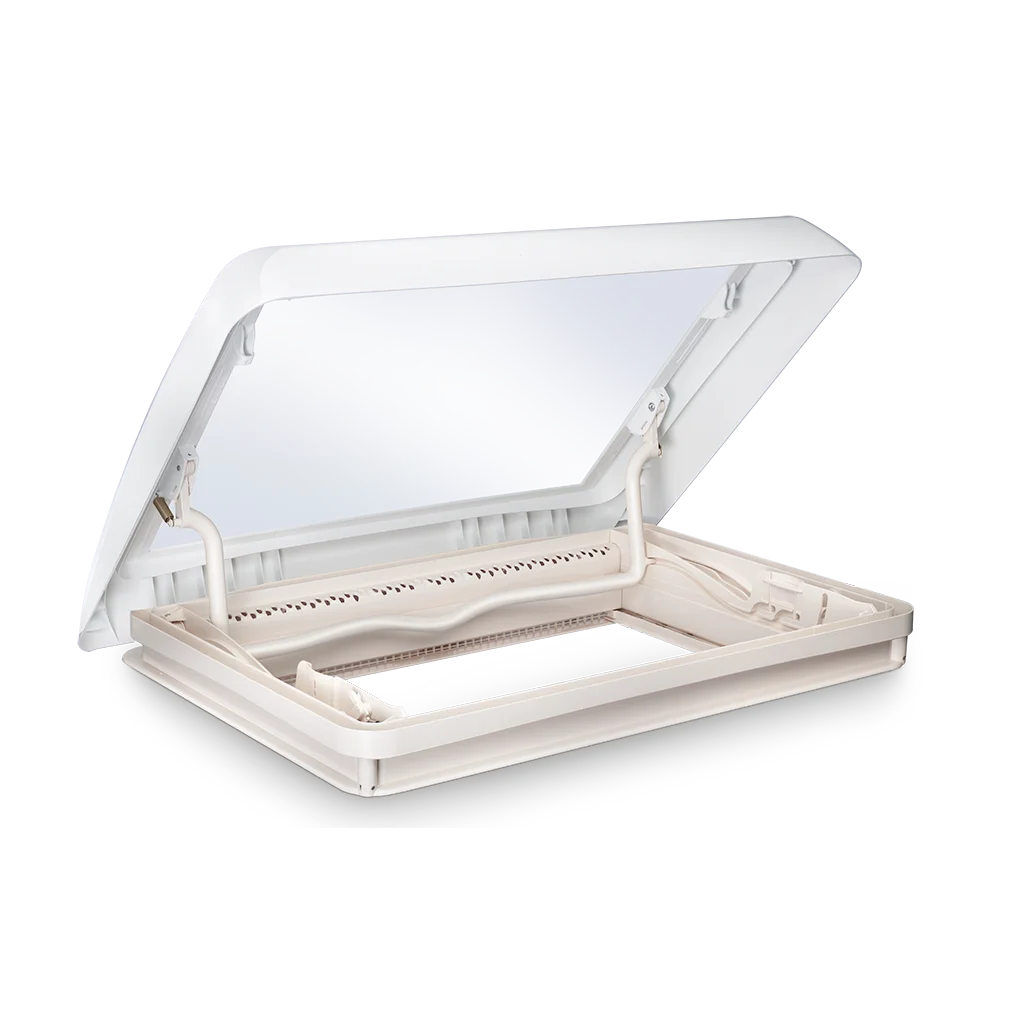

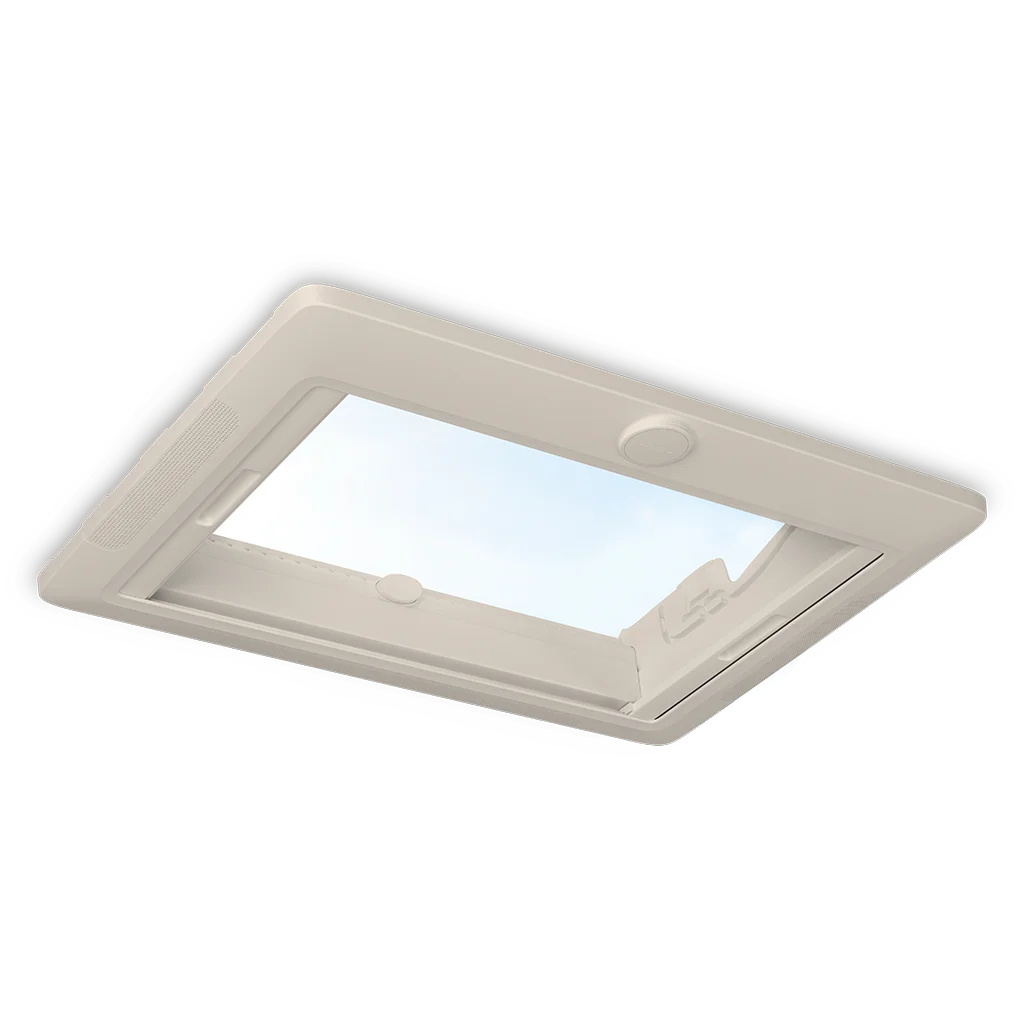

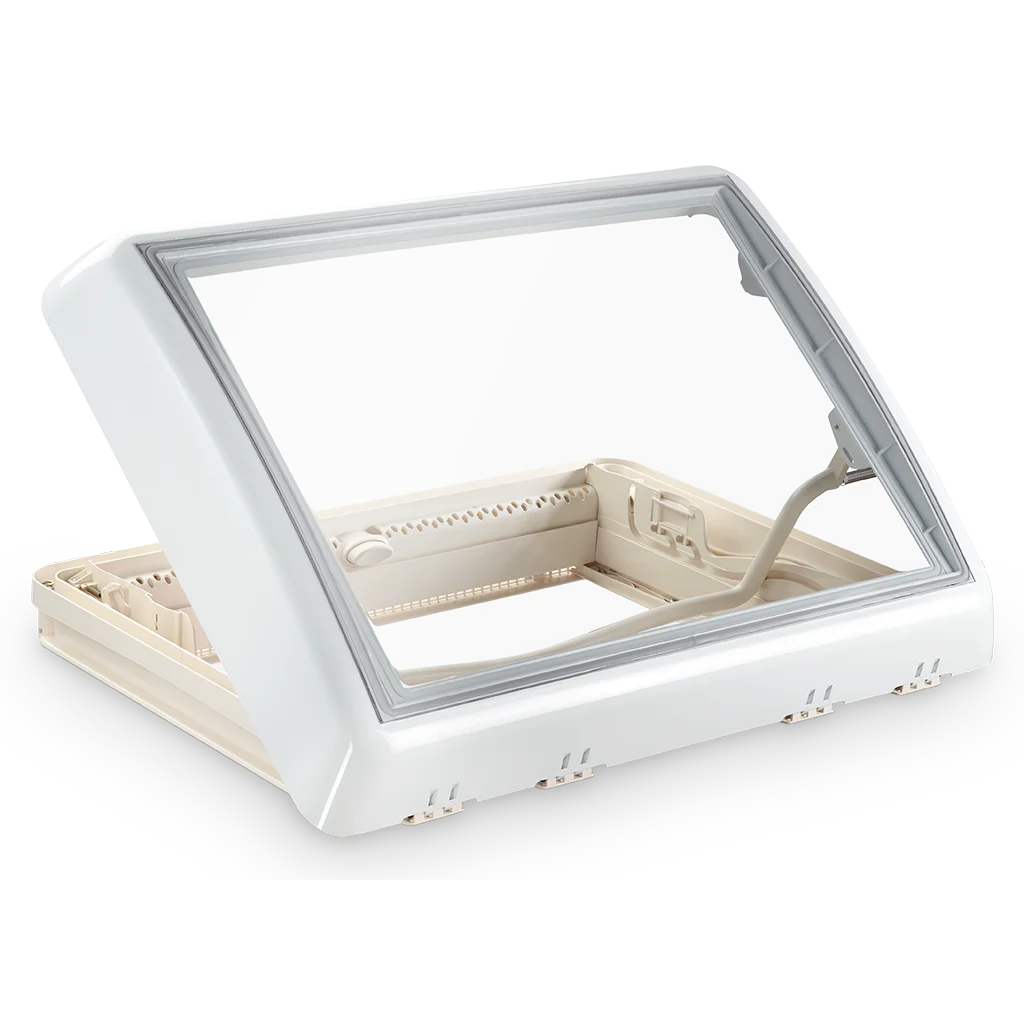

A large roof opening of 700 x 500mm makes the vehicle interior a lot brighter and the influx of fresh air is also easily regulated with midi heki by dometic. this model has forced ventilation and lever handle.

Features:

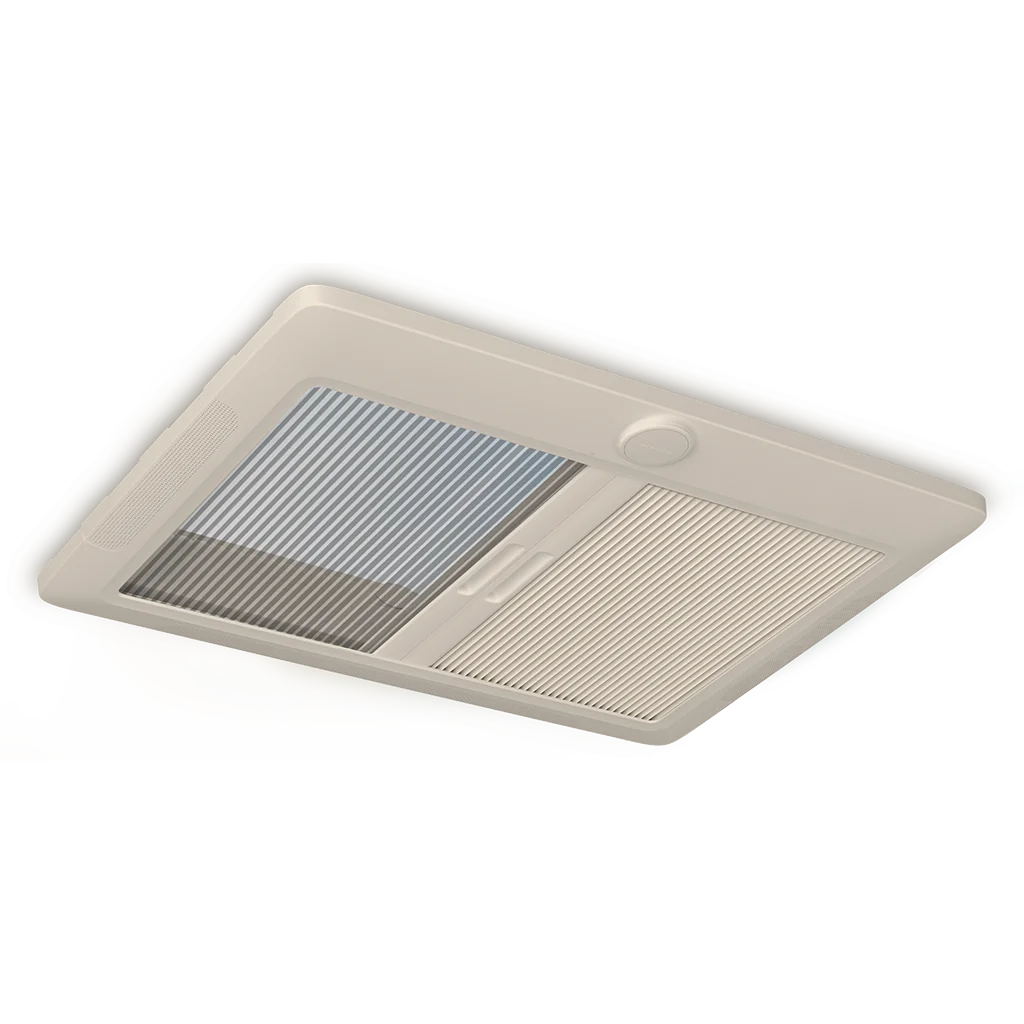

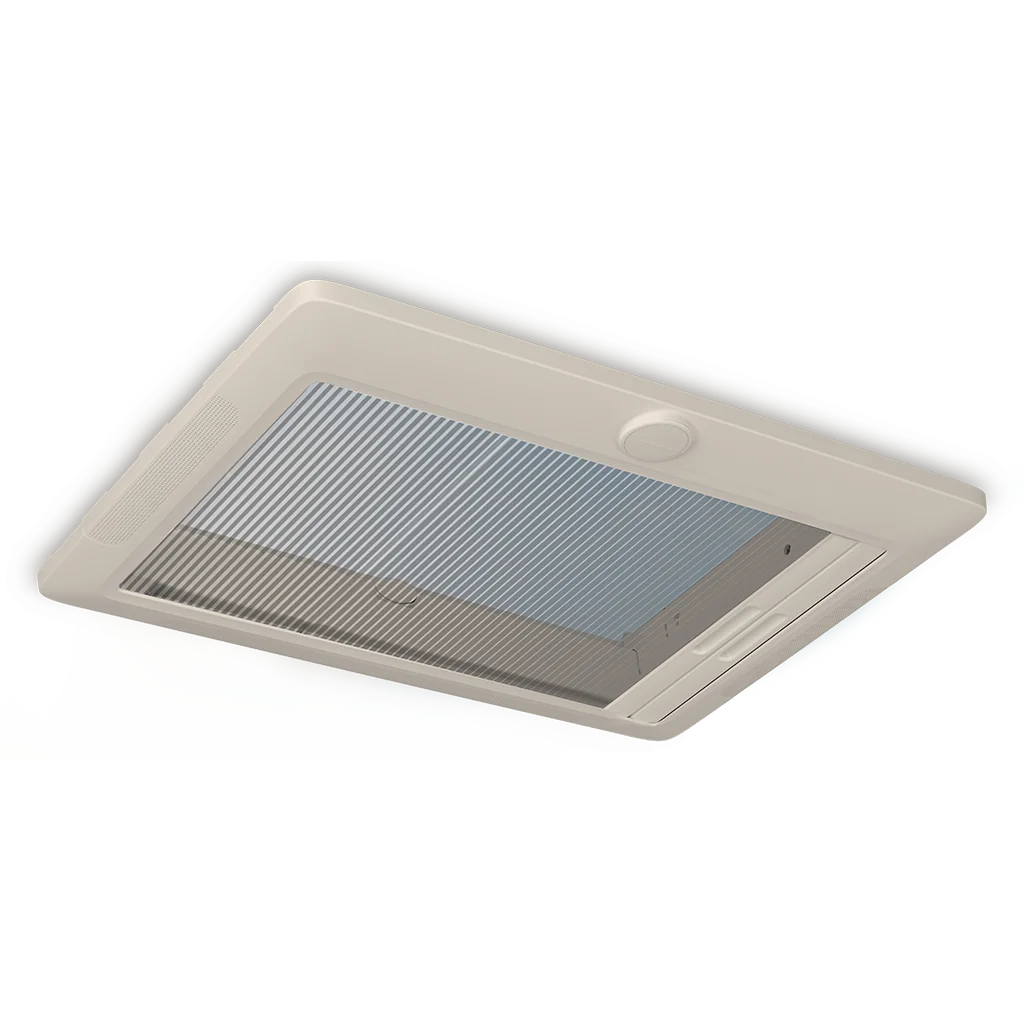

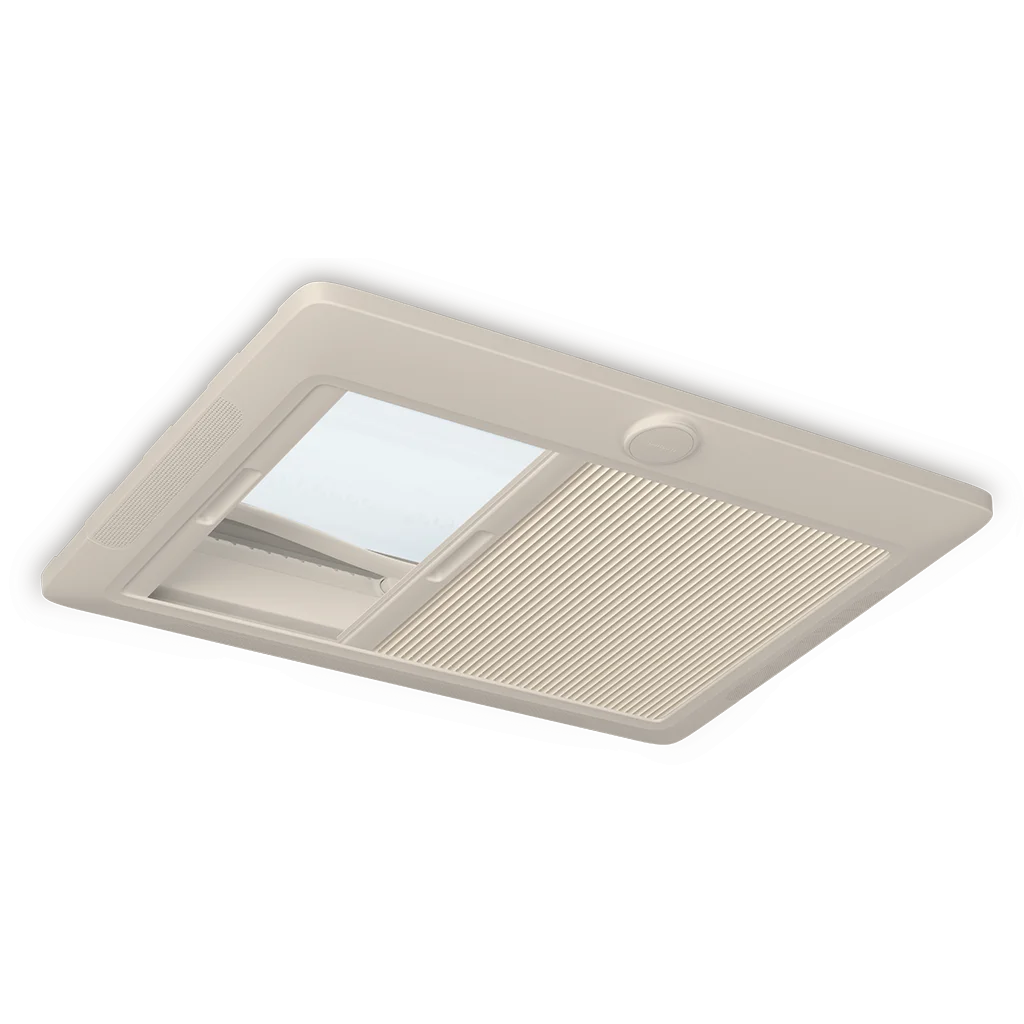

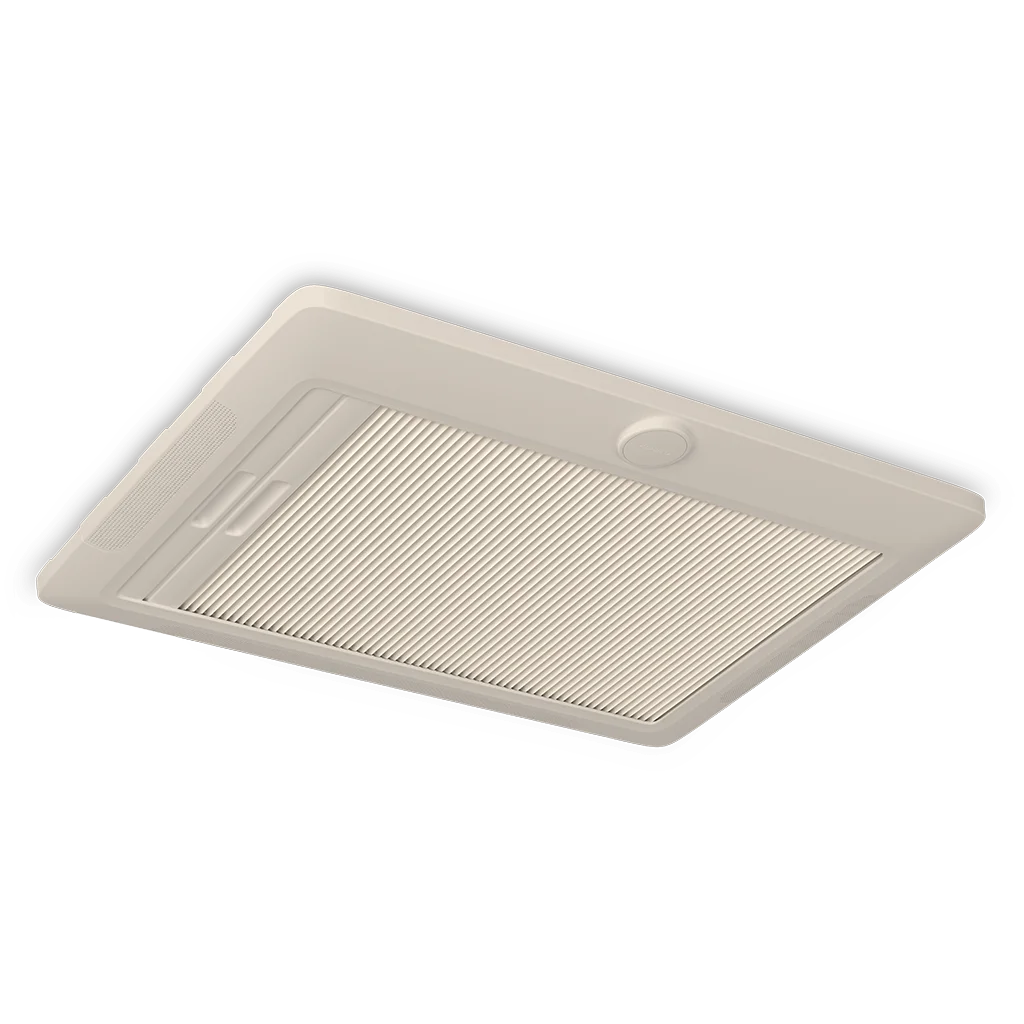

separately adjustable darkening and fly screens
well insulated dome with double acrylic glazing
improved aerodynamics reduce by 20 %
hinge and lock integrated into frame for improved safety and mechanical reliability

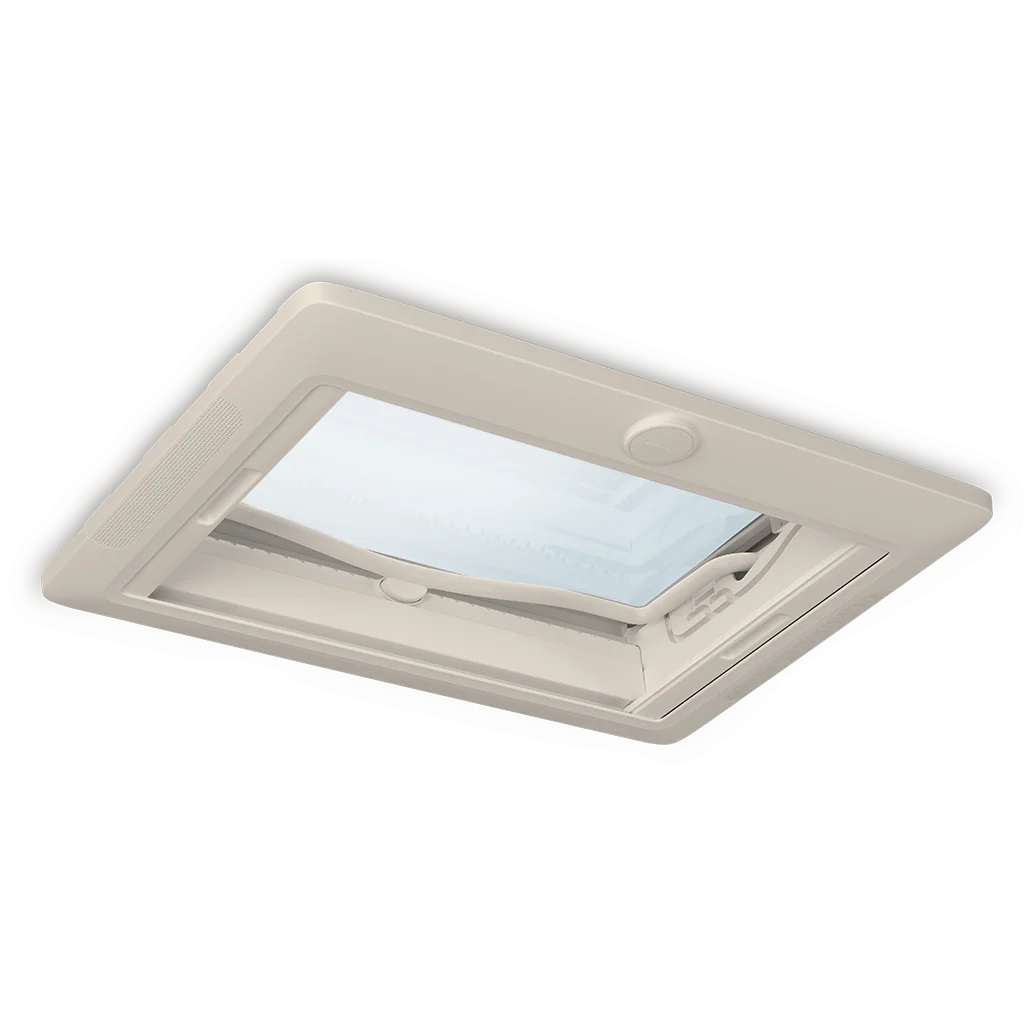

opens to three positions: fully open, half-open and bad-weather position
with forced ventilation
modern design for stylish interior and exterior appearance

dimensions and technical specification: imensions
dimensions product depth 617 mm
dimensions product width 846 mm
dimensions ordered width 700 mm
dimensions ordered height 500 mm
dimensions opening width 585 mm
dimensions opening height 404 mm
net weight 8,2 kg
standard mount. material thickness 1 min 30 mm
standard mount. material thickness 1 max 34 mm
possible material thickness 1 min 25 mm
possible material thickness 1 max 29 mm
cut out height 500.00 mm
cut out width 500.00 mm
max opening angle is 45 degress
3 fixed positions
