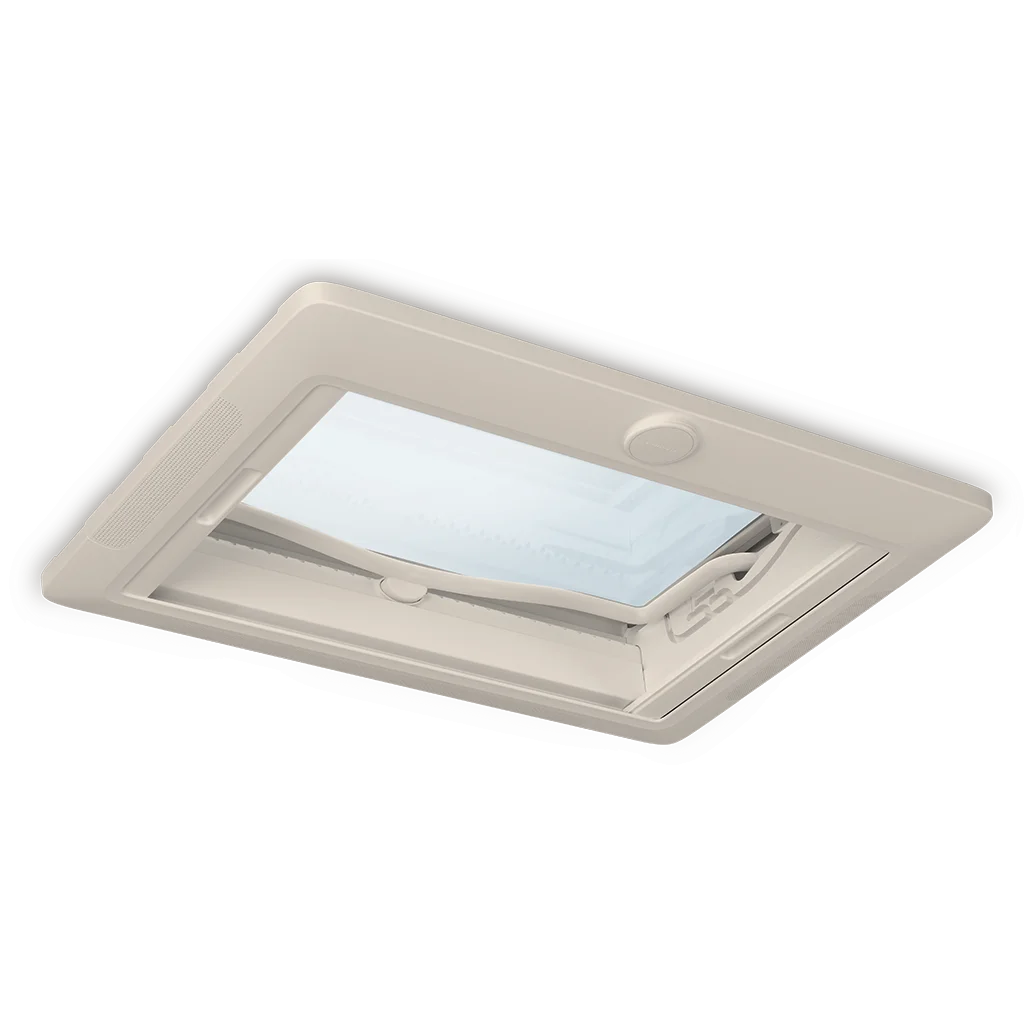

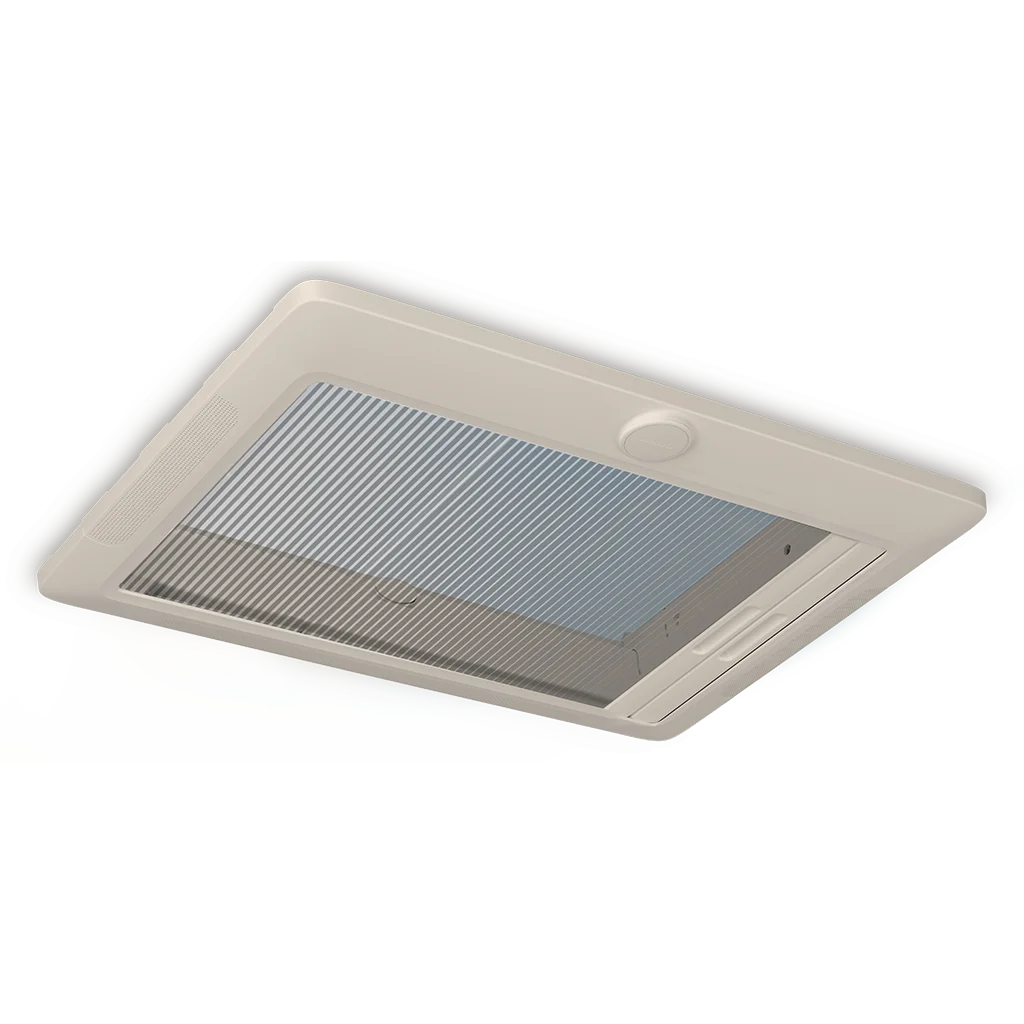

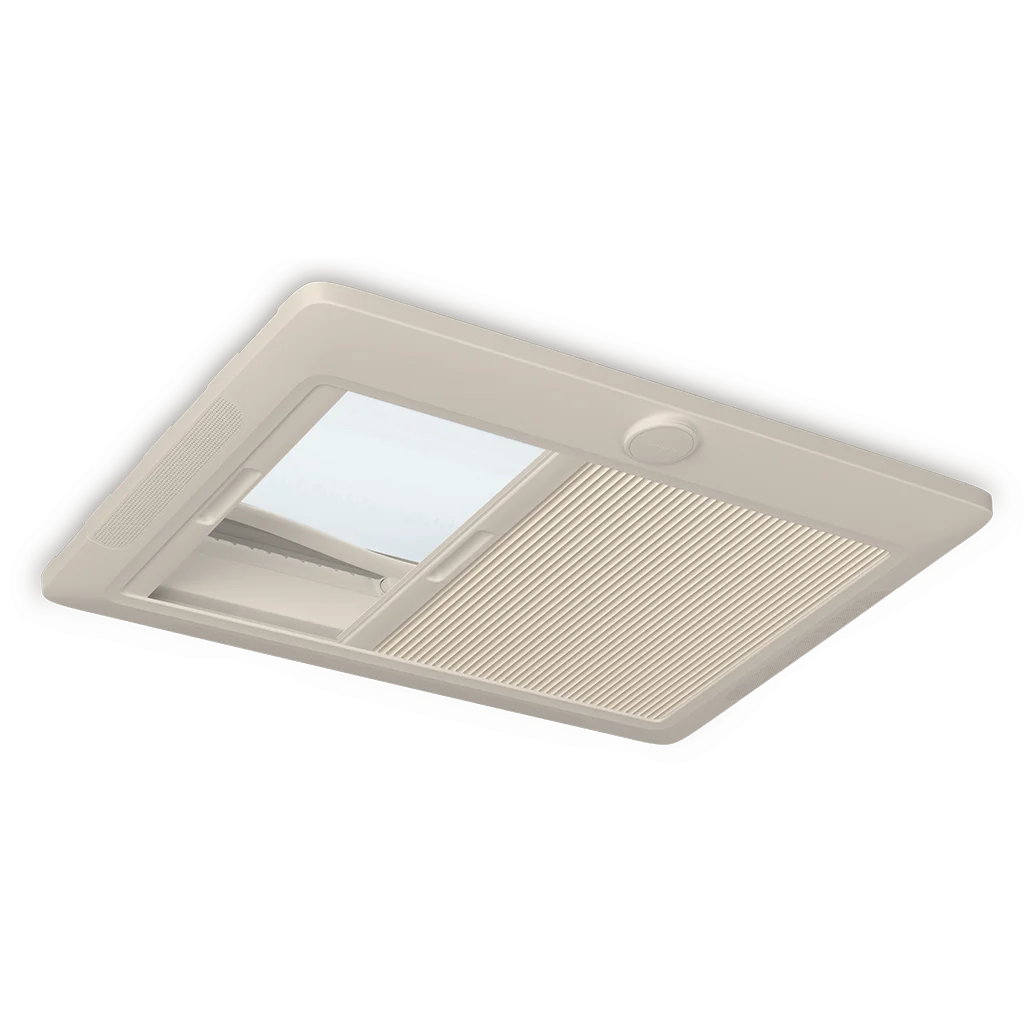

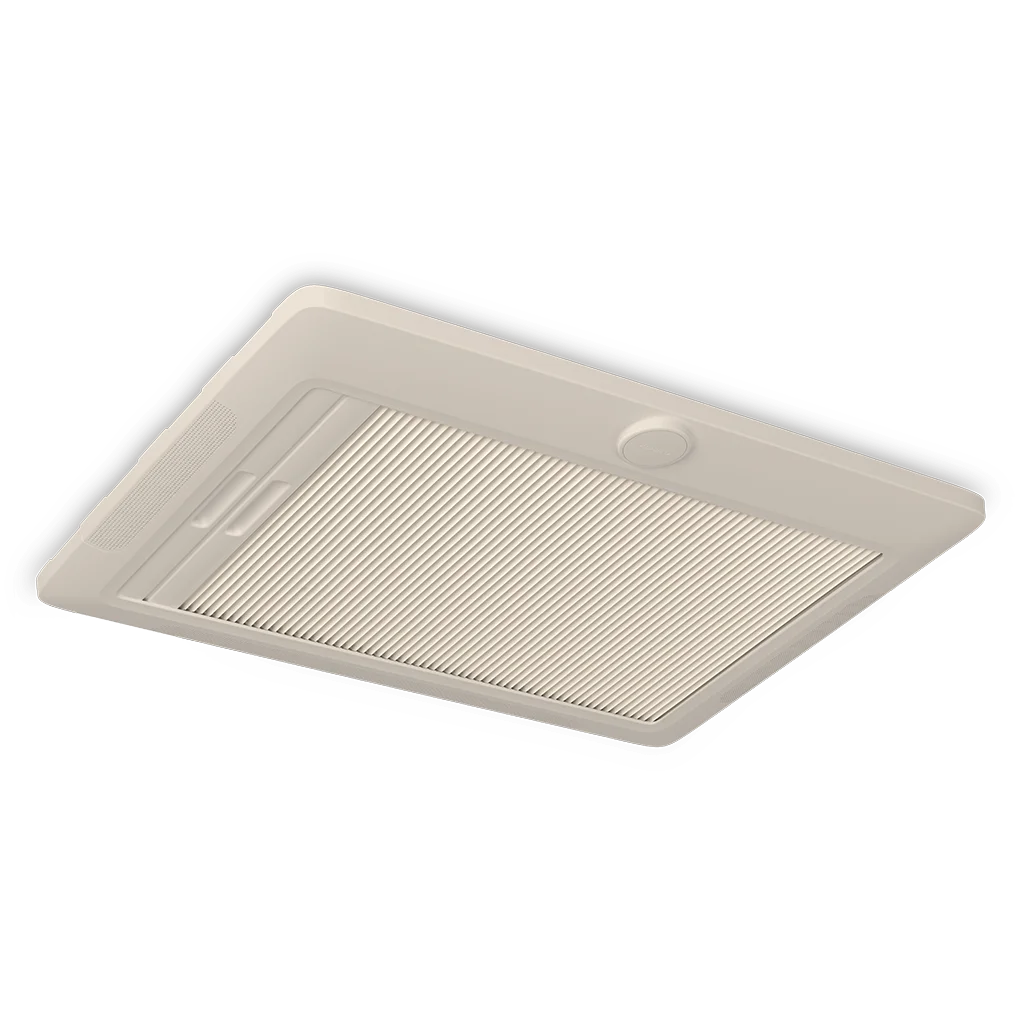

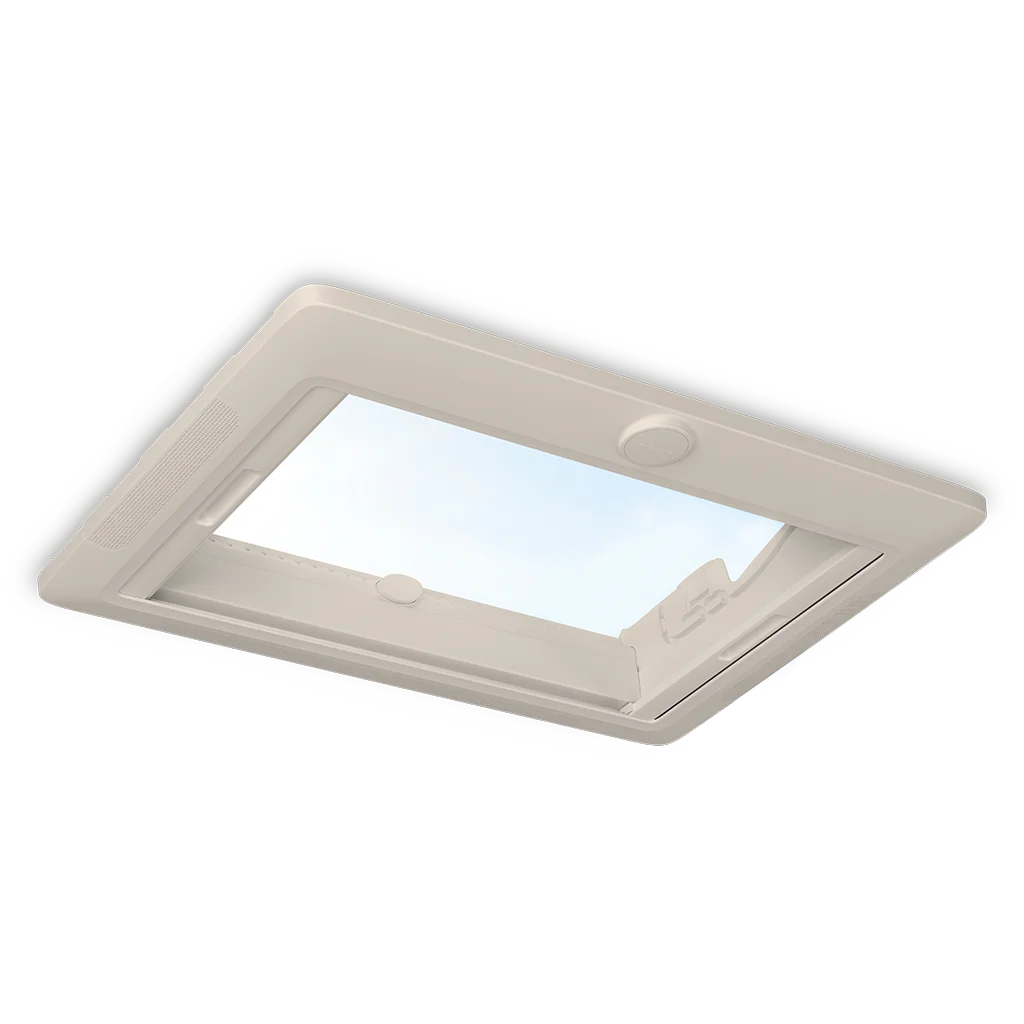

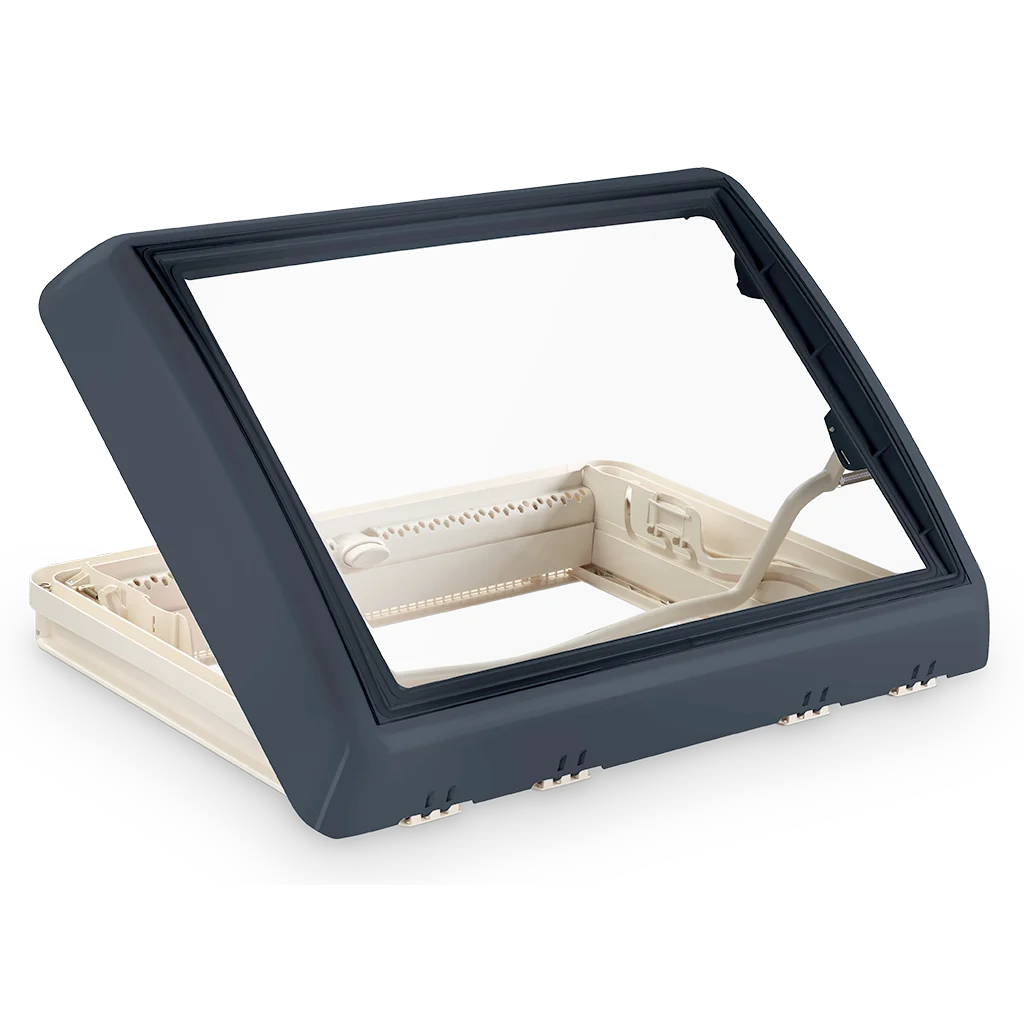

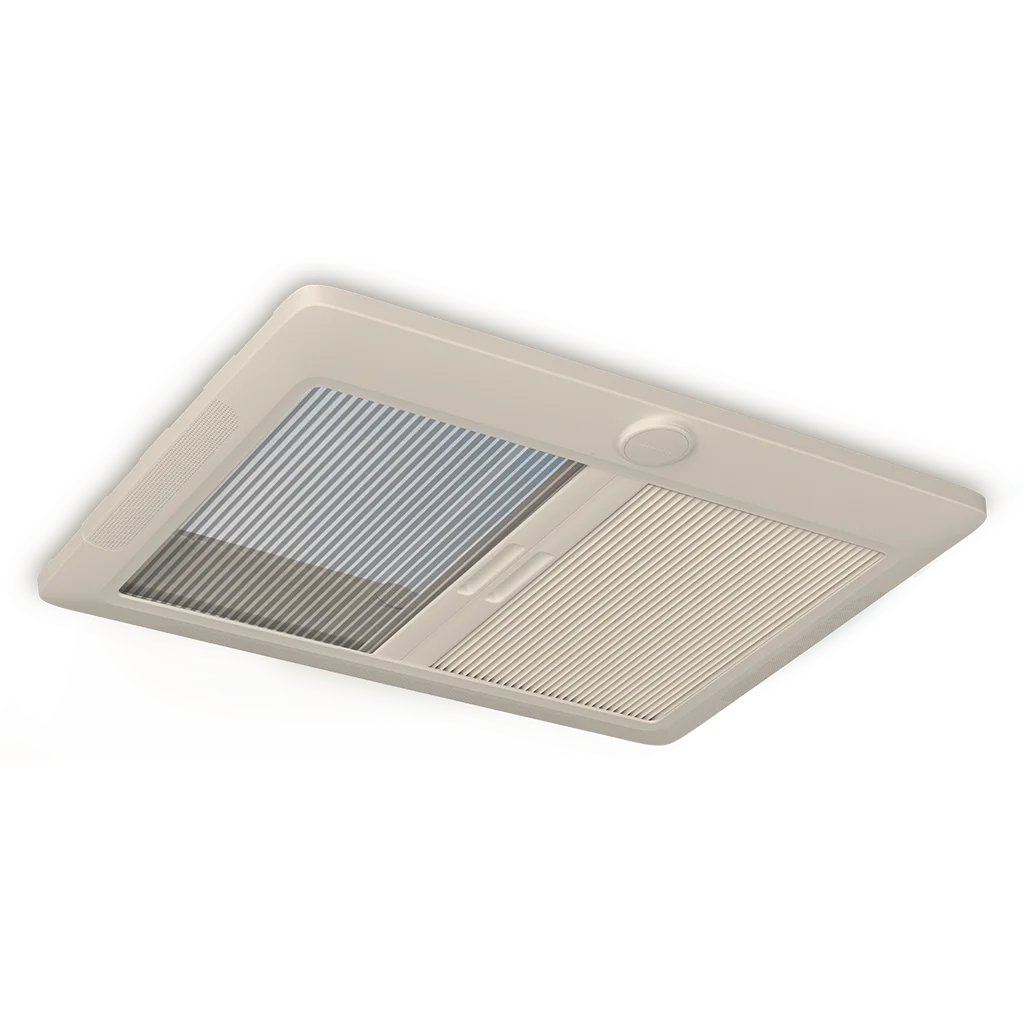

This dometic midi heki style is an advanced version of dometic’s mid-sized roof windows. it features a newly designed dome with double acrylic glazing for enhanced insulation and better visual integration. with its improved design, the midi heki style is both easier to clean and generates up to 20 % (3 db) less noise thanks to improved aerodynamics. an inner frame with separately adjustable darkening blind and fly screen conveniently keep sunlight and insects out of the vehicle
Dometic Grey Midi Heki 700×500 Lever Rooflight with forced ventilation
SKU: 9620008629
EAN: 7315091516617
Size : 617 x 617 x 846 mm (D x H x W)
Net weight 8.40 kg
Opening width 585 mm
Opening height 404 mm
Standard mount. material thickness 1 min 30 mm
Standard mount. material thickness 1 max 34 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 29 mm
Ventilation opening 150.00 cm2
Cut out height 500.00 mm
Cut out width 700.00 mm
Net weight 8.40 kg
Opening width 585 mm
Opening height 404 mm
Standard mount. material thickness 1 min 30 mm
Standard mount. material thickness 1 max 34 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 29 mm
Ventilation opening 150.00 cm2
Cut out height 500.00 mm
Cut out width 700.00 mm
There are currently no documents available for this product.
