Truma CP+ Control Panel i-NET

SKU:

36023-54

EAN:

4052816047096

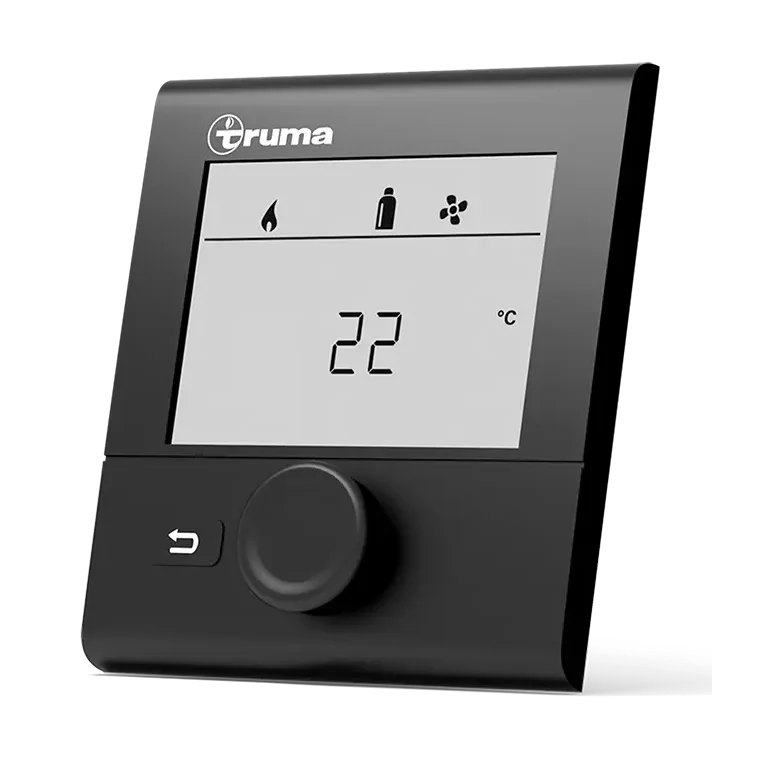

The electronic Truma CP plus control panel is used to control and monitor a Combi CP Plus ready heater and or a Truma air conditioning system. The Truma CP plus serves as an interface for operating connected appliances via Truma App and Truma iNet Box.

The following air conditioning systems can be operated with the Truma CP Plus.
Saphir compact
Saphir comfort RC
Aventa eco
Aventa comfort

The Truma CP Plus is intended for installation in caravans and motorhomes. Installation in boats is not permitted.

Truma CP+ control panel (gar) CP+ (1 connector)

  • Easy operation with rotary push button
  • Clear LCD display with backlight when in use
  • Can set timers for heating systems
  • Automatic climate control coordinates Truma heaters
  • Boost feature for on-demand temperature control
  • iNet ready
  • 1 data connection
  • Ergonomic design and intuitive operation
  • Standby screen
  • Modern design
  • Status display
  • Usual basic functions (room temperature, water temperature and power selection) can be set very quickly
  • New comfort functions: fan modes, faster initial heat-up, waterboost, time switch, offset (temperature sensor)
  • PCB board needs to be version 5 or later to be compatible
  • Power supply: 8 V - 16.5 V
  • Power consumption: max. 65 mA
  • (100% backlit)
  • 6.5 mA - 10 mA (standby)
  • Quiescent current consumption: 3 mA (off)
  • Dimensions: 92 x 103 x 40 mm (L x W x H)
  • Weight: approx. 100 g
