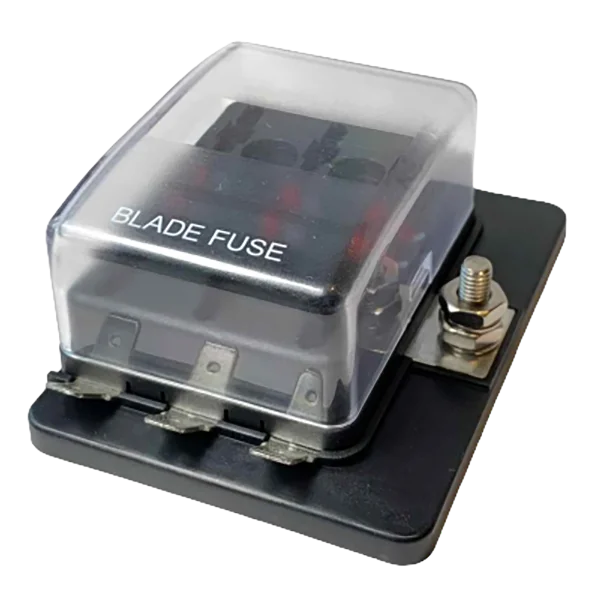

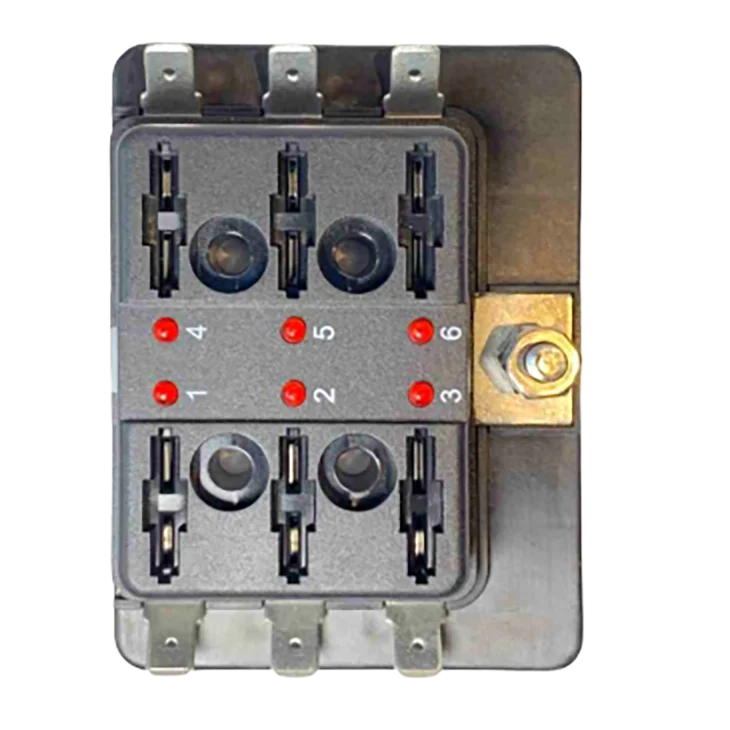

6 Fuse Fusebox With RED Light

SKU:

R3-76-01-3L106

EAN:

6 way ATC fuse block

ATC fuse block for 6 fuses with red failure indicator light for each fuse. for marine, boat and automotive use. featuring 1 common negative. the clear protective cover snaps over the block securely.

  • for marine, boat and automotive use
  • Weight: 87g
  • Dimensions: 85 L x 63 W x 35.5 H mm
  • Leads dimensions: 6.3mm
  • Body colour:black
  • Number of ways: 6
  • Flammability rating: UL94V-0
  • Contact plating:tinned
  • Body material: PBT
  • Max. voltage: 32V DC
  • Fuse accessories features
  • LED indicator that signals if the fuse blows out
  • Input wire cross-section, max. 13.2mm2
  • Output wire cross-section, max. 1.31mm2
  • Fuse accessories application: automotive fuses
  • Operating temperature: -20...85C
  • Type of fuse accessories: fuse boxes
  • Fuse size: 19mm
  • Maximum current: 30A
  • Mounting: screw
  • Leads: connectors
