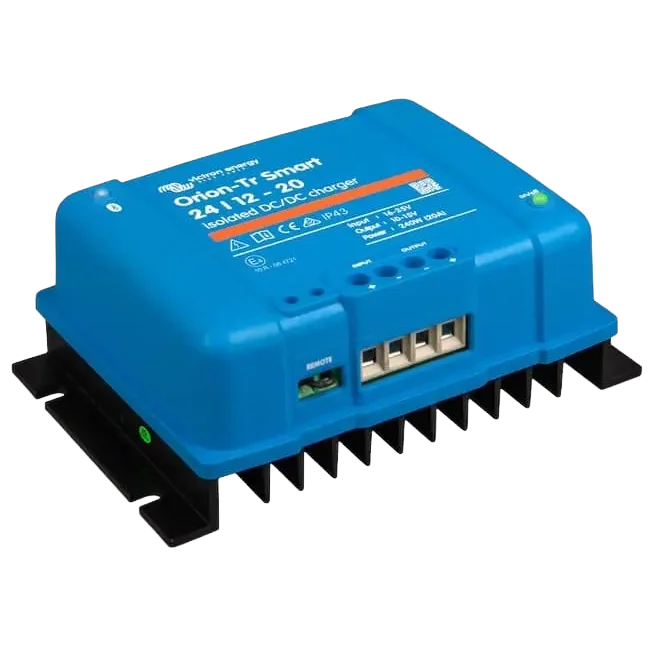

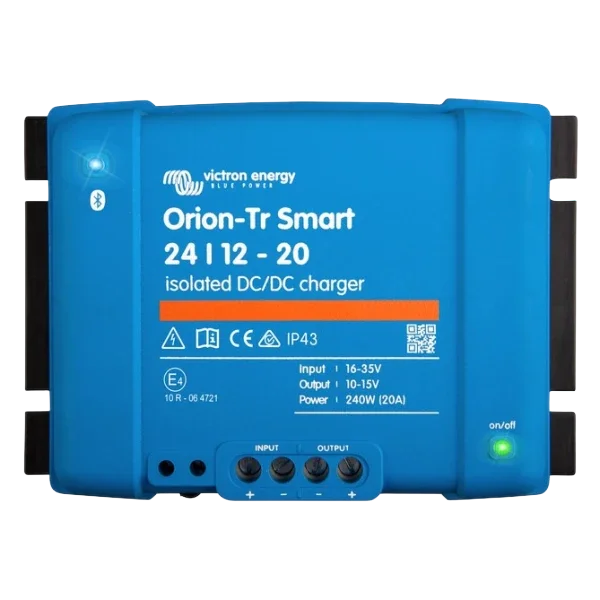

Victron Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC Charger

New

SKU:

ORI241224120

EAN:

8719076046080

The Victron Orion-Tr Smart 24/12-20A Isolated DC-DC Charger is a professional-grade adaptive 3-stage charger with built-in Bluetooth connectivity. Designed for dual-battery systems in vehicles and boats, it efficiently charges the service battery from the starter battery or alternator – including smart alternators.

Fully programmable and Bluetooth Smart enabled, the charger allows easy monitoring, configuration, and firmware updates via any smart device using the VictronConnect app.
Suitable for both lead-acid and lithium batteries, the Orion-Tr Smart features intelligent charging algorithms, high temperature protection, and parallel connection capability for increased output power.

  • Bluetooth Smart enabled - monitor and configure via the VictronConnect app
  • Adaptive 3-stage charge algorithm (bulk, absorption, float)
  • Fully programmable output - selectable battery charge profile or fixed voltage
  • Smart alternator compatible with engine running detection
  • Remote on/off control - via switch, relay, or battery signal
  • Parallel connection possible - connect multiple units to increase output current
  • High temperature protection - automatic output reduction at high ambient temperatures
  • IP43 protection rating (when screw terminals face down)
  • Screw terminal connections - no special tools required
  • Short circuit proof and input fused (non-replaceable fuse)
  • Dimensions (HxWxD): 130 x 186 x 70 mm
  • Weight: 1.3 kg
