Propex LPG Underslung Tank Kit – New Crafter/MAN TGE Sill Mount Filler

New

SKU:

G-096

EAN:

This Propex LPG Underslung Gas Kit is a purpose-built, complete solution for VW Crafter and MAN TGE vans (2018 onwards). Designed to take the guesswork out of fitting a refillable LPG system, this kit includes everything from the sill-mounted fill point to the regulator and CE-approved internal controller.

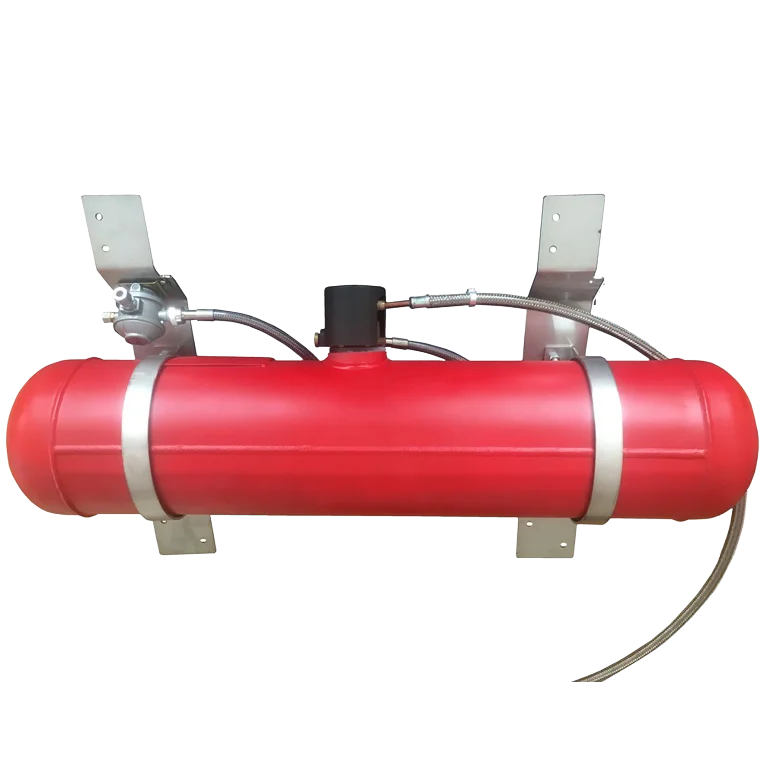

The included 25L gas tank fits securely under the vehicle using custom mounting hardware, with no need for complex plumbing or sourcing additional fittings. The sill-mounted fill comes fully pre-assembled, saving time and simplifying installation. Once installed, this system allows full internal control of gas supply and live level monitoring via the GASTORE digital controller.

What’s Included?
-25 Litre LPG Tank with Multivalve
-1.5 Metre Level Gauge Cable
-4.5 Meter Solenoid/Signal Cable
-2x Stainless Steel Vehicle Mounting Brackets
-2x Tank Brackets

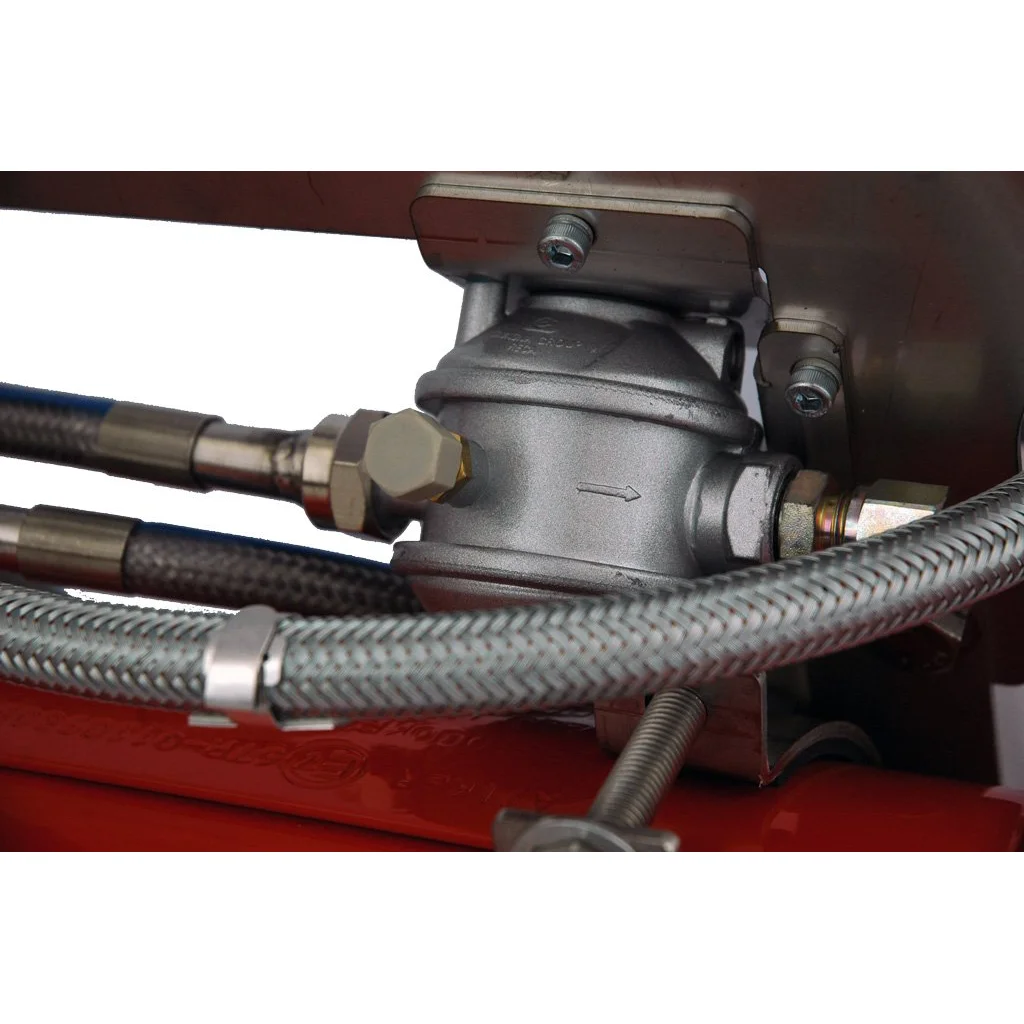

-1x 30 mBar Cavagna Regulator
-2 Meter Filler Poly Hose
-2x 8mm Hose Connections
-1x Electrical Solenoid & Level Gauge
-1x Electrical Junction Box
-3x M8 Rivnuts
-3x M8 x 2S Set Screws
-3x M8 Spring Washers
-6x P Clips
-4x M10 Rivnuts
-6x M10 25 Set Screws
-4x M10 Washers
-4x M10 Spring Washers
-2x M10 Locknuts
-2x M5 Set Screws
-2x M5 Spring Washers
-2x M5 Nuts
-Tank & Valve Certificates/ Instructions/Log Cards

  • Vehicle-specific LPG solution for VW Crafter / MAN TGE (2018 onwards) - please note this tank is not suitable for RWD or 4WD variants
  • 25L refillable LPG tank with electronic solenoid shutoff
  • Sill-mounted fill point with integrated BBQ gas outlet

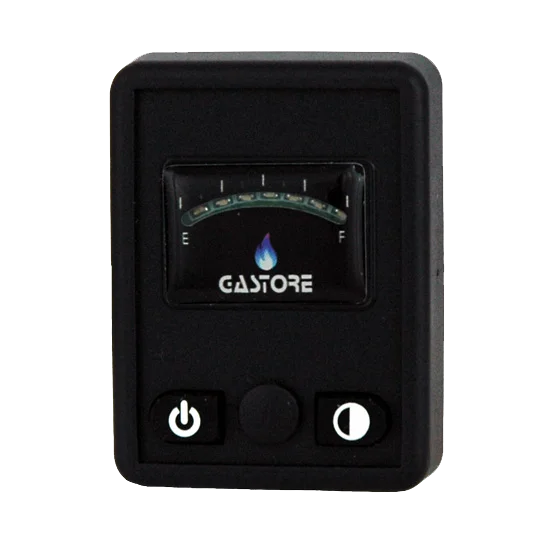

  • CE-approved GASTORE gas controller with level display
  • No drilling or gas system expertise required
  • All mounting hardware included
  • UKLPG CoP 11 compliant
  • Vehicle Fitment: VW Crafter / MAN TGE - 2018+ (not suitable for RWD or 4WD variants)
  • Tank Capacity: 25L (20L usable at 80%)
  • Weight: 18kg dry / 28kg full
  • Control Power: 12V @ 1A startup, 3V @ <100mA continuous
  • Certifications: PED 2014/68/EU, CE-approved components
  • Installation Standard: UKLPG CoP 11 compliant
  • Bracket Material: Stainless steel (min. 3mm thick)
