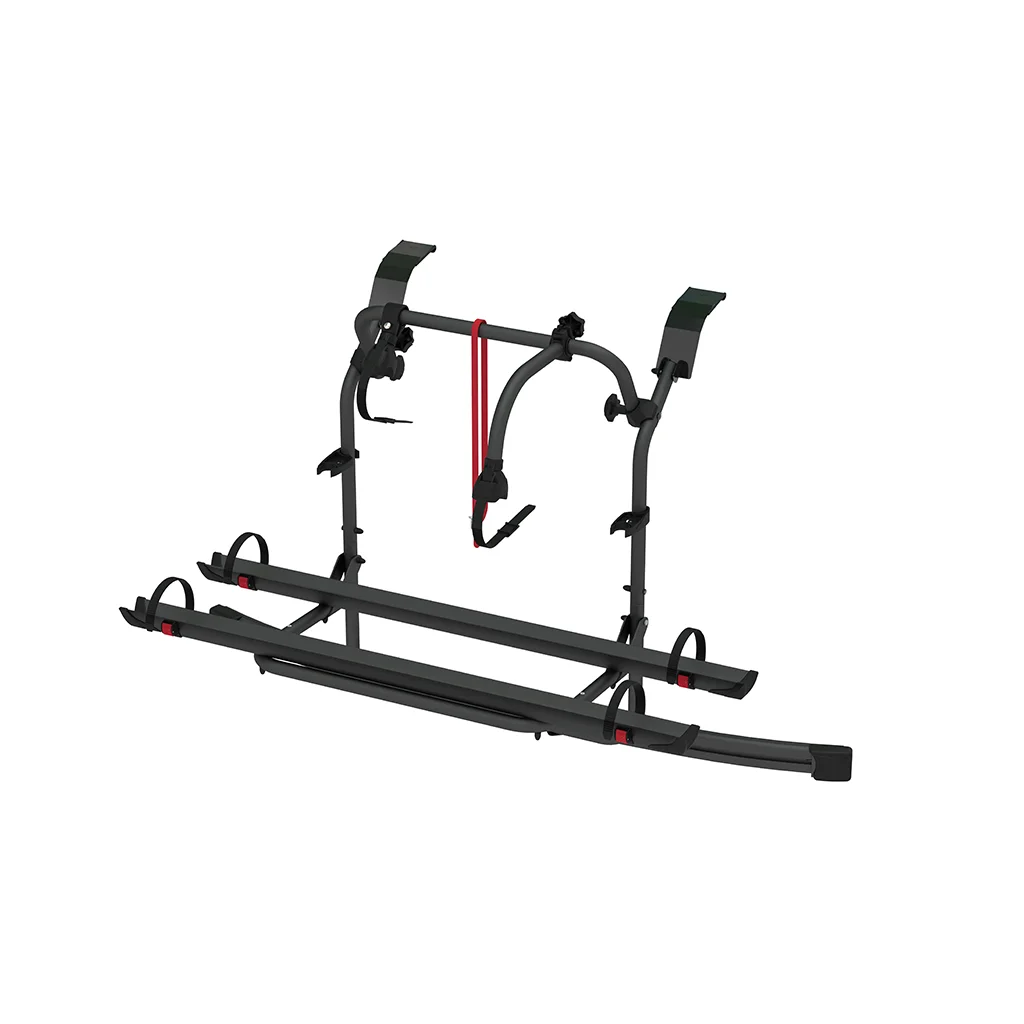

Fiamma Cb Ford Custom Nugget/Plus Hr Db

New

SKU:

02096-07A

EAN:

8004815438272

Tailgate Mount: Curved profile fits the lower part of the tailgate, matching the vehicle’s shape.
Bike Capacity:
Standard: 2 bikes (including e-bikes)
Expandable: Up to 3 bikes (with additional Fiamma parts)
Max Load: 50 kg
E-Bike Compatible: Yes
Compatibility:

Ford Transit Custom Nugget (from 2015)
Ford Transit Custom Nugget Plus (from 2012)
Ford Cap Land (from 2015)
Ford Cap Fan (2015-2018)
Ford Cap Coast (from 2018)
Ford Cap Life (from 2019, H1 roof)
Supplied With:

1 x Bike-Block Pro 1 (locking system)
1 x Bike-Block Pro 3 (locking system)
Security Strip
2 x Rail Plus (bike rails)
Brackets

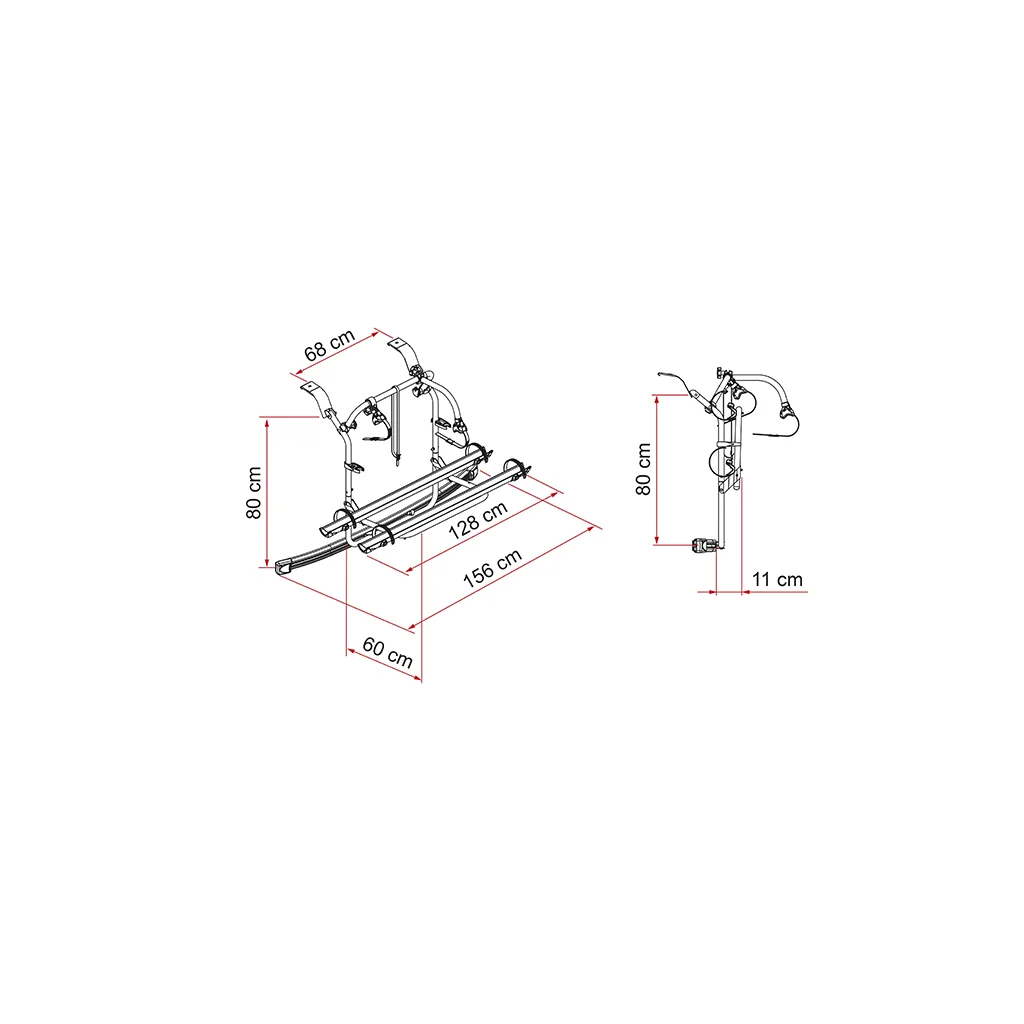

Technical Specs:

Colour: Deep Black
Position: Tailgate
Vertical Wheelbase: 80 cm
Horizontal Wheelbase: 68 cm (distance between brackets)
Dimensions: 156 x 60 x 80 cm (standard open position)
Distance Between Rails: 15 cm
Licence Plate Carrier: Optional (sold separately)

  • Upper brackets
  • Designed to follow the shape of the vehicle
  • Curved bottom fixing-bar
  • For greater adhesion to the tailgate
  • Rail Plus
  • New design for increased torsion and flexural strength
  • Bike-Block
  • To securely lock the bike
  • Rail support base
  • Made of aluminium to transport up to 3 bikes
  • Installation
  • On the tailgate of the vehicle
  • Vehicle type - Campervans
  • Weight - 8.4kg
  • Max load - 50kg
  • Colour - Deep Black
