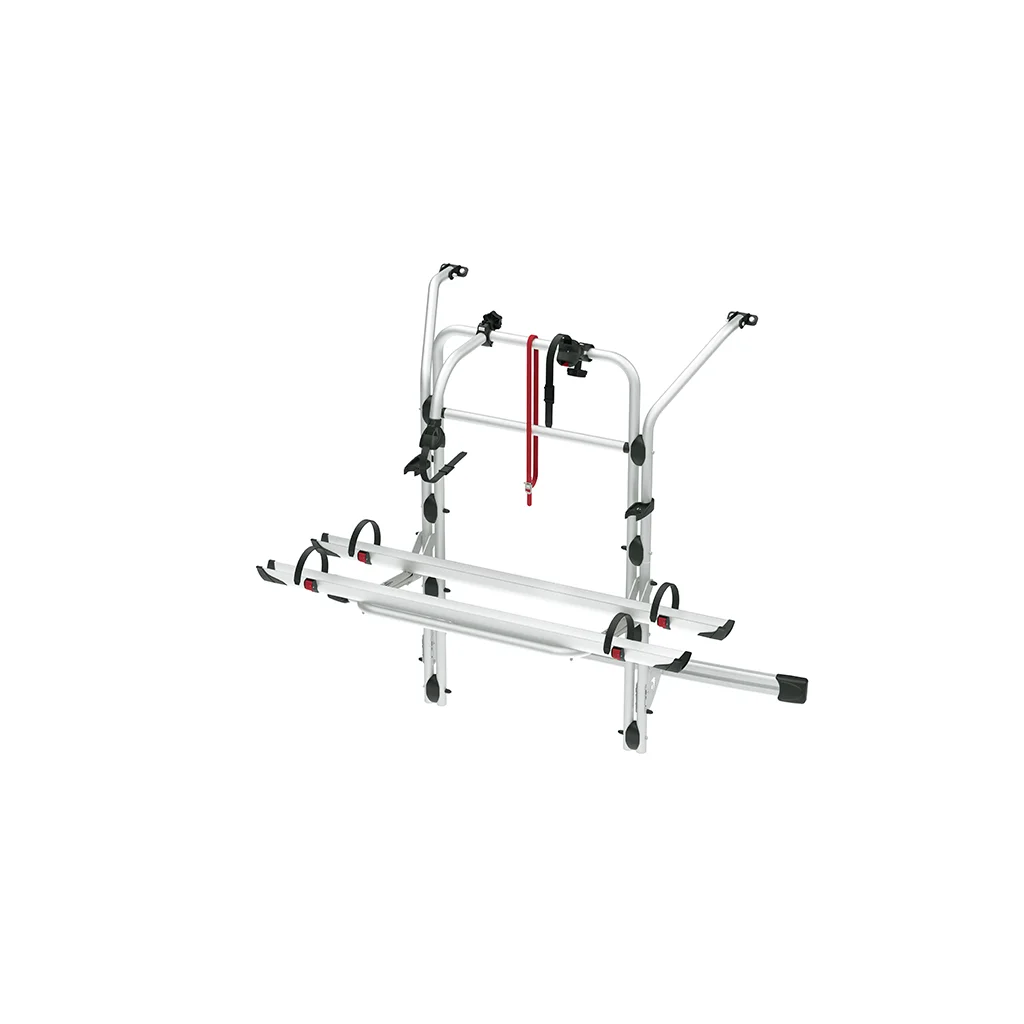

Fiamma Carry-Bike Mercedes V CLass Premium NEW SHAPE

Mounting Position: Tailgate
Bike Capacity:
Standard: 2 bikes
Expandable: Up to 4 bikes (or 2 e-bikes) with additional Fiamma parts
Max Load: 60 kg
E-Bike Compatible: Yes
Dual Rail Support Positions:
Standard Position
Lower Position (easier loading; requires Fiamma Licence Plate Carrier with lights and plate holder)
Supplied With:

2 x Rail Plus (bike rails)
Fixing bar
Brackets

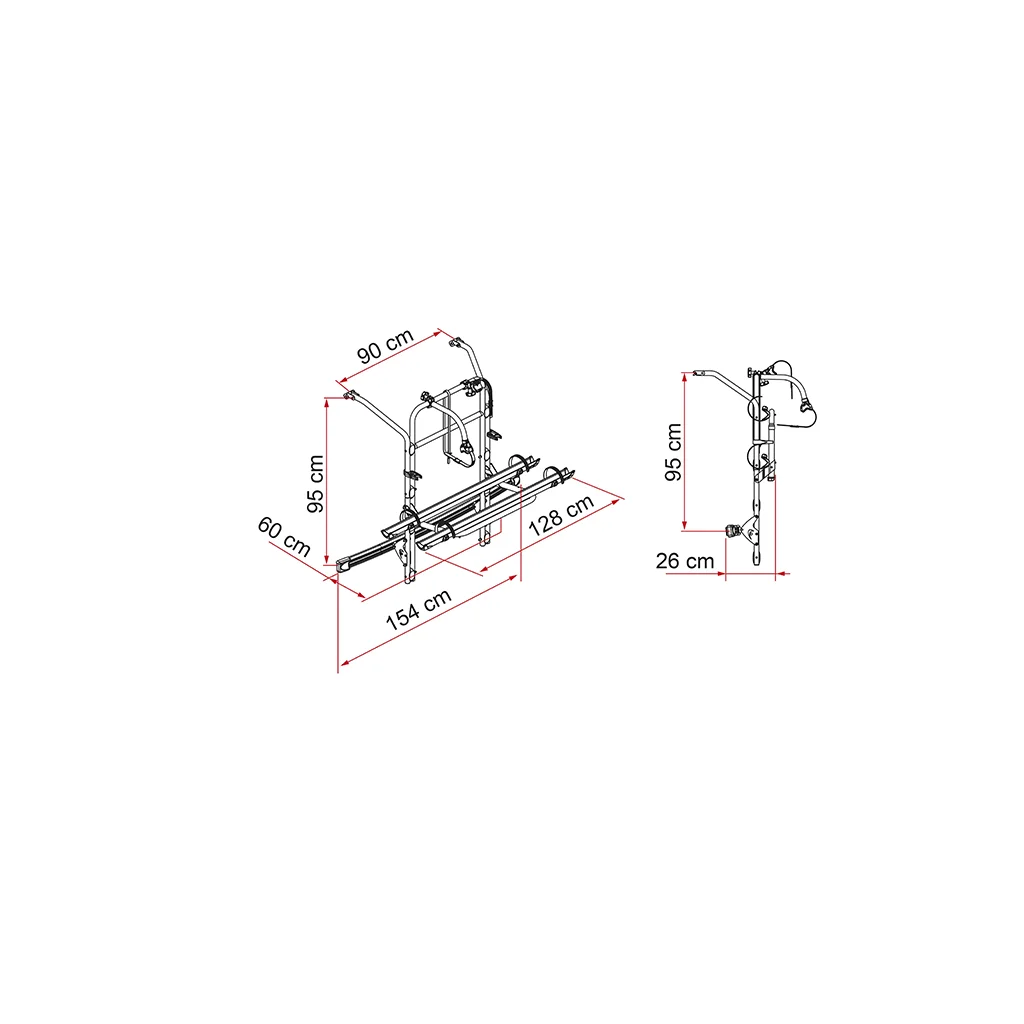

Technical Specs:

Colour: Aluminium
Vertical Wheelbase: 95 cm
Horizontal Wheelbase: 90 cm
Distance Between Rails: 15 cm
Dimensions: 154 x 60 x 9 cm (standard open position)
Weight: 18.3 kg
Licence Plate Carrier: Optional, sold separately

Upper brackets
Designed to follow the shape of the vehicle

Curved bottom fixing-bar
For greater adhesion to the tailgate

Bike-Block
To securely lock the bike

Rail Plus
New design for increased torsion and flexural strength

Rail support base
Made of steel to transport up to 4 bikes

Installation
On the tailgate of the vehicle

Vehicle type - Campervans
Weight - 18.3kg
Max load - 60kg
Colour - Aluminium
