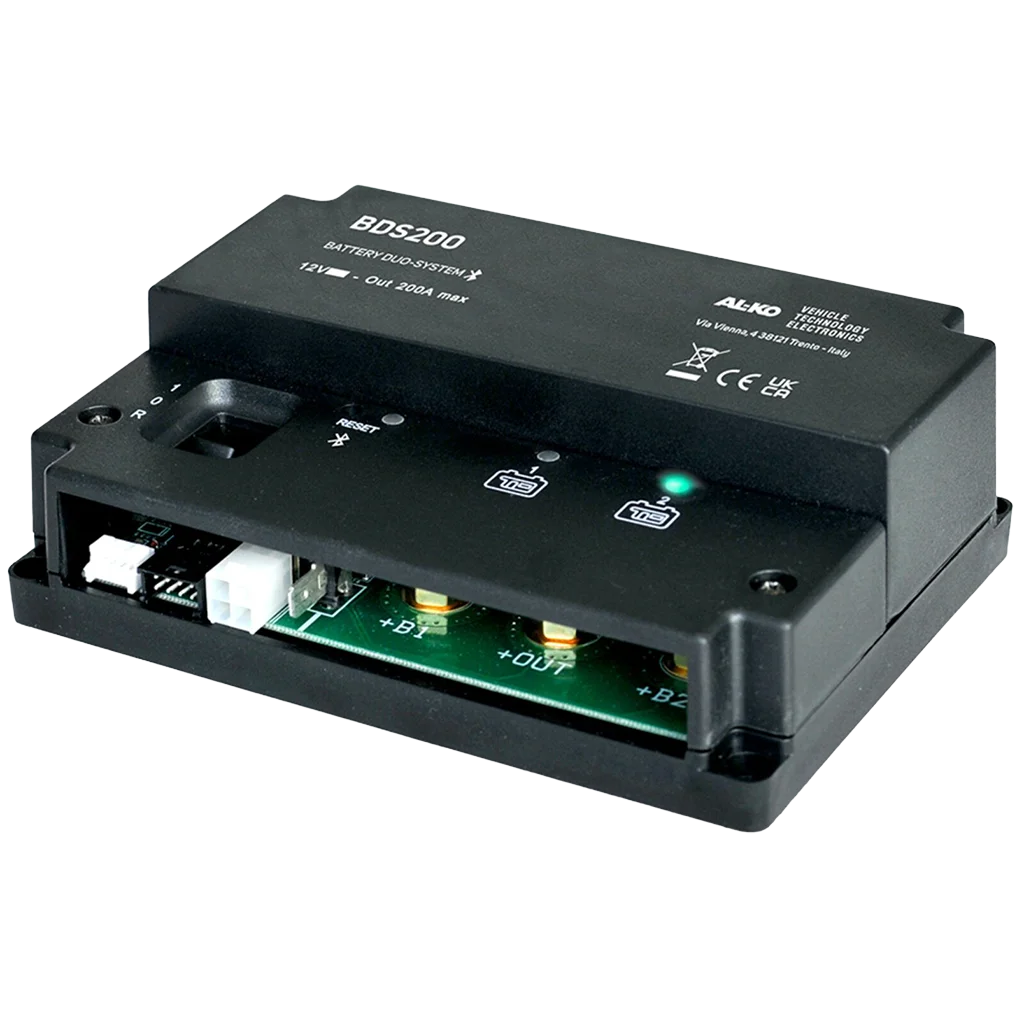

The duo-system battery is an electronic device with integrated microprocessor able to intelligently manage two lead, gel, AGM and lithium 12 V service batteries, both during charging (with alternator, battery charger and photovoltaic modules) and during discharging.
Management of battery charge and discharge separately and alternately
Possibility of connecting two batteries of different capacities and different ages
Control of the functionality of each individual battery and, in case of faulty battery, isolation of the same with light signalling (yellow LED on the BDS200)
'Save battery' function, which disconnects the batteries when a safety voltage is reached to avoid irreversible damage
Possibility of electrically disconnecting both service batteries (in case of prolonged periods of inactivity) using the switch located on the device or via a remote switch management of High currents (charge and discharge) up to a maximum of 100A with peaks of 120A for each battery
Possibility of connecting utilities with consumption up to a maximum of 200A
Possibility of connecting a control panel (MC-180) for selecting the operating mode of the equipment (automatic/manual)
Possibility of connecting two batteries of different capacities and different ages
Control of the functionality of each individual battery and, in case of faulty battery, isolation of the same with light signalling (yellow LED on the BDS200)
'Save battery' function, which disconnects the batteries when a safety voltage is reached to avoid irreversible damage
Possibility of electrically disconnecting both service batteries (in case of prolonged periods of inactivity) using the switch located on the device or via a remote switch management of High currents (charge and discharge) up to a maximum of 100A with peaks of 120A for each battery
Possibility of connecting utilities with consumption up to a maximum of 200A
Possibility of connecting a control panel (MC-180) for selecting the operating mode of the equipment (automatic/manual)
Dimensions (mm): 150 x 110 / h 48
Colour: Black
Colour: Black
