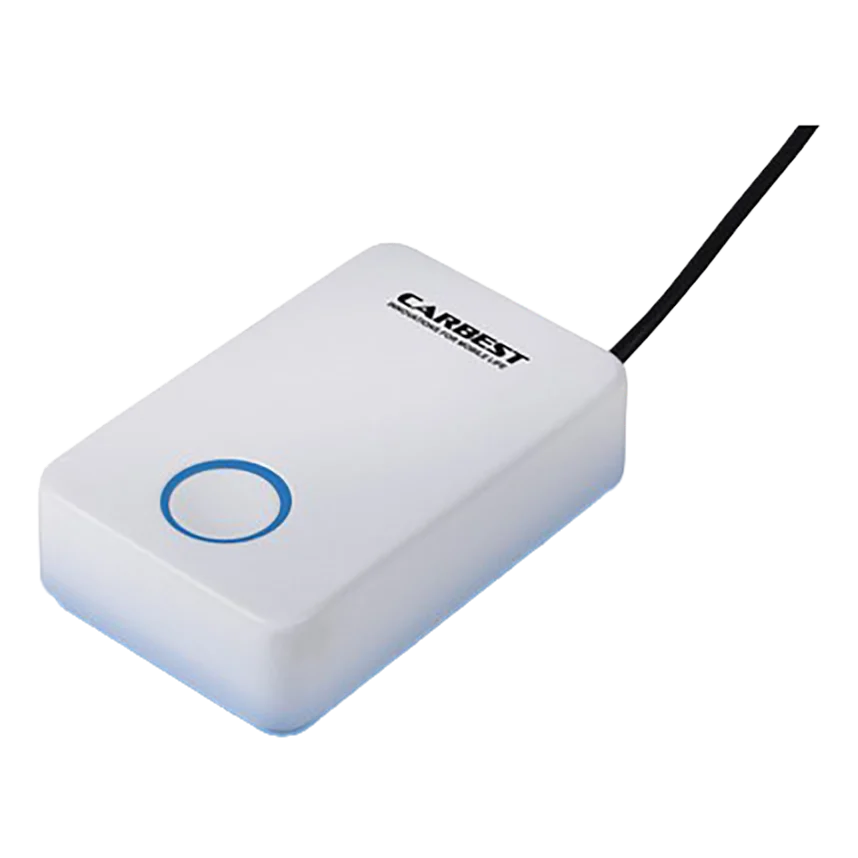

Gas cube is a high sensitivity alarm for detecting leaking propane/butane gas (lpg), carbon monoxide (co) and narcotic gases.
When gascube is switched on, an automatic bumb test verifies the electronic functions and sensor technology. a microprocessor-based automatic calibration ensures maximum sensitivity and prevents false alarms.
Warns of propane/butane gas (LPG) and narcotic gases
Visual & audible indication of operational readiness, calibration phase & alarm
Blue light = Ready for operation / Red light = Alarm!
Central button: ON/OFF
Connection: fixed connection to 12 V on-board power supply
Pressure switch: ready for operation after 3 minutes
Supply voltage: 12 to 30 volts DC
Current consumption additional sensor: 95 mA
Sensor: temperature-controlled sensor that also works reliably above 25C
Mounting: approx. 100 cm above the ground
Width: 55.6 mm
Height: 24 mm
Weight: 100 g
Voltage: 12 V
Current consumption: 0.18 A
Standby consumption: 0.1 Ah
Operating volume: 80 dB
There are currently no documents available for this product.
