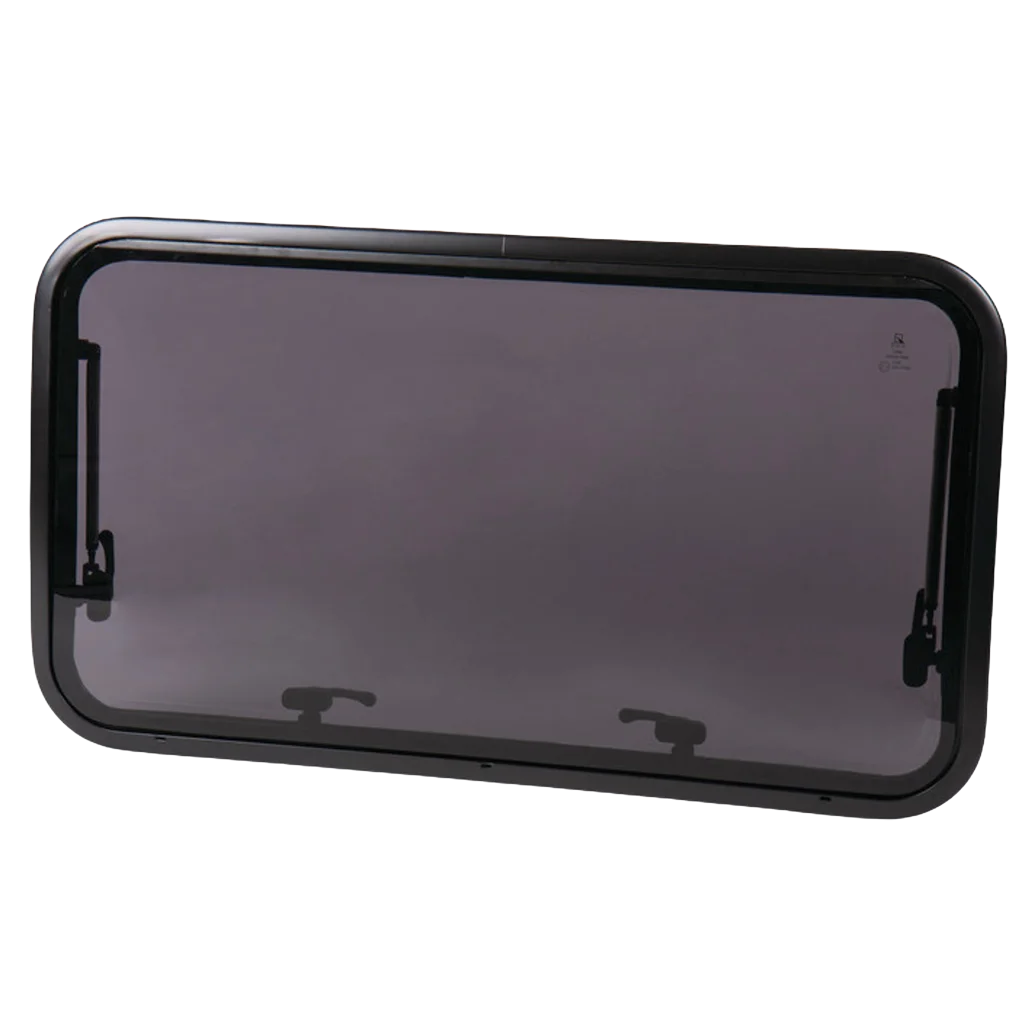

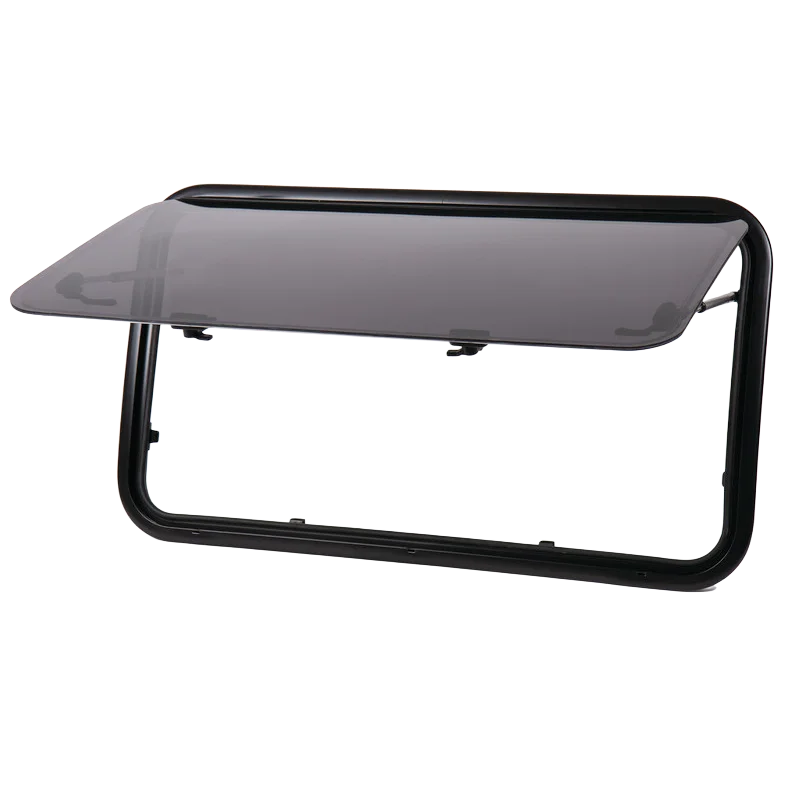

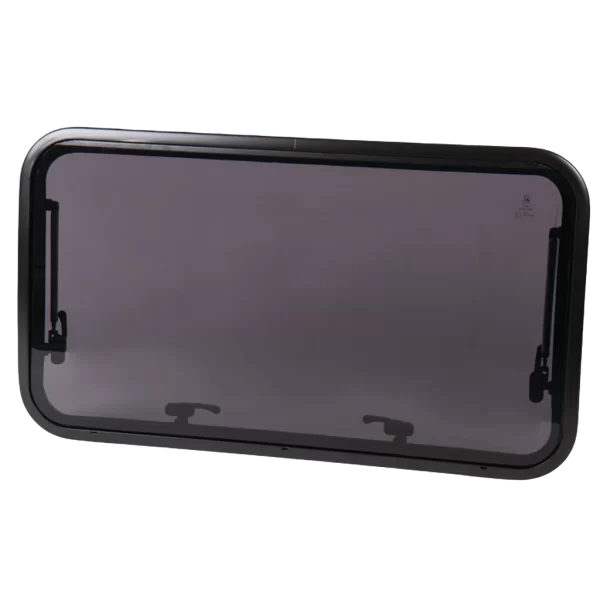

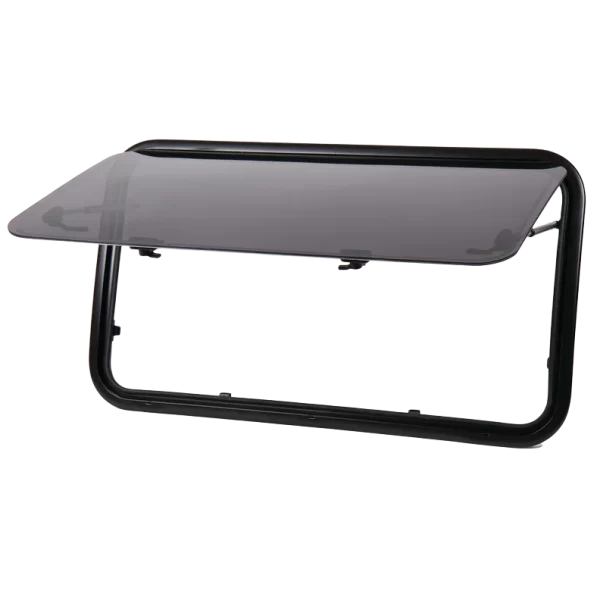

The Carbest Acrylic Hinged Window is a premium-quality solution, engineered specifically for campervans and motorhomes. With a modern design and practical functionality, it brings light, ventilation, and thermal comfort to your van conversion.This pop-out window is constructed with a double-glazed acrylic pane, offering excellent thermal insulation and soundproofing, while allowing a soft, ambient light to enter the vehicle thanks to its 10% light transmission. The pane is tinted transparent and closes flush with the outer frame for a sleek finish.Built with a lightweight pre-curved aluminium frame (curvature radius 5000 mm), it fits perfectly to the contour of most panel vans. The frame comes in a stylish black finish and suits wall thicknesses of 32-34 mm.The window opens outward and is infinitely adjustable, allowing you to set the airflow to your preference. A fixed ventilation position is also included, offering fresh air even when closed.Certified to E7 standards (E-Mark), this window is a safe and stylish upgrade for your van build.
Double-glazed acrylic pane with 10% light transmission
Transparent tinted finish for interior ambience
Lightweight black aluminium frame - durable and stylish
Pre-curved to fit van bodies (radius 5000 mm)
Sound-insulating and thermally efficient
Flush-fitting design - modern and aerodynamic
Infinitely adjustable opening with ventilation stop
Corner radius: 75 mm
Suitable for wall thicknesses: 32-34 mm
E-Mark certified for road use
Transparent tinted finish for interior ambience
Lightweight black aluminium frame - durable and stylish
Pre-curved to fit van bodies (radius 5000 mm)
Sound-insulating and thermally efficient
Flush-fitting design - modern and aerodynamic
Infinitely adjustable opening with ventilation stop
Corner radius: 75 mm
Suitable for wall thicknesses: 32-34 mm
E-Mark certified for road use
- Cut-out dimension width: 280 mm
- Cut-out height: 380 mm
- Outer width: 308 mm
- External height: 407 mm
- Clearance width: 225 mm
- Clearance height: 325 mm
- Opening angle: 40 °
- Corner radius: 75 mm
- Wall thickness min: 32 mm
- Wall thickness max: 34 mm
- Weight: 1.7 kg
