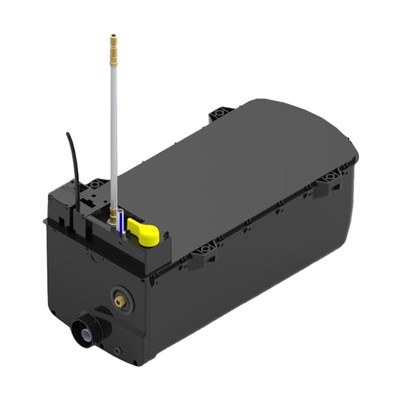

Whale Expanse Underfloor Gas & Electric Water Heater with Flue Kit
Product Code: SETWL8212A
The Whale Expanse Water Heater features versatile heating controls, offering a choice between low current draw or fast heat-up settings. With robust insulation and no removable flue cover, it requires minimal maintenance, making it a reliable choice for small to medium-sized recreational vehicles.
The underfloor installation provides more internal living space while maintaining easy access for servicing. With external gas connections and a winter protection system, this heater is built for all-season travel.
Included in this kit:
8-Litre Whale Expanse Water Heater
Whale iVan Control Panel
1 x 3.5m Cable
1 x 1.25m Flue
3 x Flue Brackets
1 x End Flue Bracket
- Compact & Space-Saving Design – Underfloor installation frees up interior space
- Versatile Heating Controls – Choose between energy-efficient or rapid heating
- Winter Protection – Ensures reliable operation in colder conditions
- External Gas Connections – Simplifies installation and servicing
- 8-Litre Capacity – Ideal for small to medium-sized recreational vehicles
- Superior Insulation & Robust Design – Minimal maintenance required
- Easy Mounting Options – Designed for convenient installation
- Underside Flue Connector – For efficient venting and operation
- Integrated with Whale iVan® Control Panel – Smart operation and monitoring
- Capacity: 8 Litre
- Pressure Relief Valve Setting: 3.0 Bar
- Maximum Water Inlet Pressure: 1.9 Bar
- Gas Type: Butane/Propane 30mbar CAT I3B/P (30)
- Heat Input (Gross): 285kW
- Gas Connection: 8mm compression fitting
- Current Consumption (12V. d.c): 0.48 Amps//(0.03 Amps on Standby)
- Electricity Supply: 12V d.c. + 230V a.c. 50Hz
- Electric Lowest Eco Setting: 750W
- Electric Highest Setting: 1500W
- Maximum Current Consumption (12V. d.c.): 0.48 Amps//(0.03 Amps on Standby)
- Maximum Current Consumption (230V): 6.5 Amps
- Dimensions (H x W x L): 180 x 262 x 522 mm
Technical Information
SKU: SETWL8212A
Barcode: 766478959034
Brand: Whale
