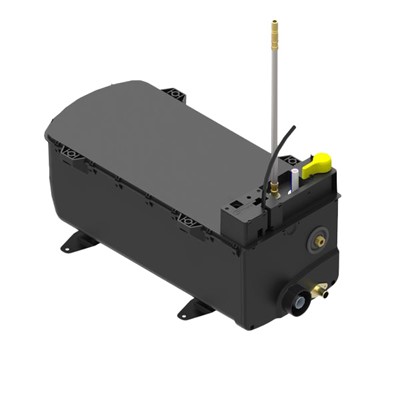

Whale Expanse Onboard Gas & Electric Water Heater with Flue Kit
Product Code: SETWL8202A
With its high-efficiency pre-mixed burner and direct heat exchanger, this model heats water faster than any other Whale heater. The robust lightweight design (only 5.4kg), superior insulation, and minimal maintenance requirements make it an ideal choice for mobile applications.
The Whale Expanse Water Heater can run on electric-only, gas-only, or a combination of both for maximum efficiency and flexibility. When used with the Whale iVan Wireless Touch Screen Control Panel (optional extra), users can independently control water heating and space heating and program up to three timers for hot water availability at any time of day or night.
Included in this kit:
8-Litre Water Heater with Fixing Feet
Control Panel
1 x 3.5M Cable
1 x 1.25M Flue
3 x Flue Brackets
1 x End Flue Bracket
- 8-Litre Hot Water Tank – Perfect for small and medium-sized leisure vehicles
- Gas & Electric Operation – Choose between electric-only, gas-only, or both
- Fast Heat-Up Technology – High-efficiency pre-mixed burner & direct heat exchanger
- Winter Protection Mode – User-activated frost protection feature
- Lightweight & Compact Design – Weighs only 5.4kg for easy installation
- External Gas Connections – No additional cut-outs required
- Superior Insulation – Custom expanded polystyrene keeps water hotter for longer
- Minimal Maintenance – No removable flue cover required
- Easy Mounting – Integrated secure mounting bosses
- Works with Whale iVan® Control Panel (Optional Extra) – Wireless touch-screen control with programmable timers
- Capacity: 8 Litre
- Pressure Relief Valve Setting: 3.0 Bar
- Maximum Water Inlet Pressure: 1.9 Bar
- Gas Type: Butane/Propane 30mbar CAT I3B/P (30)
- Heat Input (Gross): 285kW
- Gas Connection: 8mm compression fitting
- Current Consumption (12V. d.c): 0.48 Amps//(0.03 Amps on Standby)
- Electricity Supply: 12V d.c. + 230V a.c. 50Hz
- Electric Lowest Eco Setting: 750W
- Electric Highest Setting: 1500W
- Maximum Current Consumption (12V. d.c.): 0.48 Amps//(0.03 Amps on Standby)
- Maximum Current Consumption (230V): 6.5 Amps
- Dimensions (H x W x L): 229 x 262 x 522 mm
Technical Information
SKU: SETWL8202A
Barcode: 766478959546
Brand: Whale
