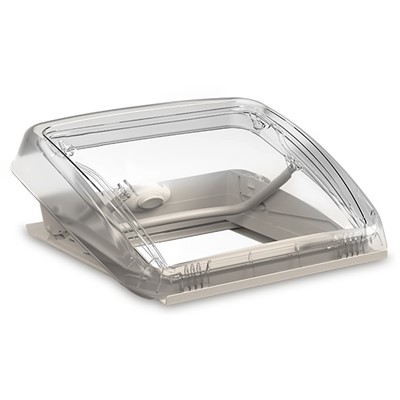

Dometic Mini Heki Style 400x400mm Rooflight 25-42mm With ventilation

Dometic Mini Heki Style 400x400mm Rooflight 25-42mm With ventilation

Product Code: 9620008619
Login to see Trade Prices
Every vehicle instantly seems so much more inviting! despite their compact standard sizes, the mini hekis provide the optimum amount of light. both models feature a lightly tinted, aerodynamically formed glass dome, and can be opened in three different positions (incl. poor weather position). the mini hekis are equipped with a single-pleated darkening screen and a fly screen.

Specially designed for installation in standard-sized apertures (400 x 400mm), this small roof light ensures maximum light entry.

• Maximum opening position 50 degrees mini heki plus (roof thickness 25-42mm) with fixed ventilation.
• Easy adjustment with operating lever.
• Inner frame with blind and flynet.
• Opens in 3 positions.

• Dimensions: dimensions product depth 520 mm
• Dimensions product width 535 mm
• Dimensions ordered width 400 mm
• Dimensions ordered height 400 mm
• Dimensions opening width 384 mm
• Dimensions opening height 364 mm
• Net weight 3.3 kg
• Standard mount. material thickness min 42 mm
• Possible material thickness min 25 mm
• Possible material thickness max 41 mm
• Cut out width 400.00 mm
Features
  • Dometic SEITZ Mini Hekiplus for motorhomes and caravans:This small roof light fits neatly into the roof • Inner frame with darkening fly screen (can be adjusted separately).• Available with or without forced ventilation.• Maximum opening angle: 50°• Double acrylic glazing.• Three positions.• For roof thickness of 25 to 60mm Mini Hekiplus ia available with or without forced ventilation.

Materials and Dimensions

Technical Information

SKU: 9620008619

Barcode: 4015704239201

Brand: Dometic
