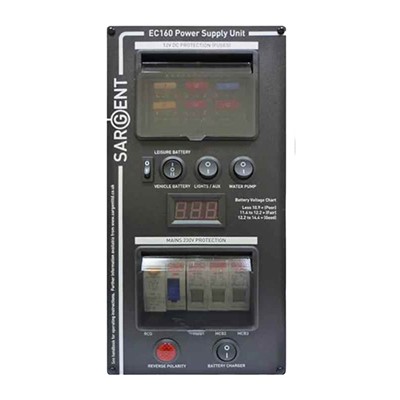

Sargent Black EC160 Vertical Power Supply Unit

Sargent Black EC160 Vertical Power Supply Unit

Product Code: EC160V
Login to see Trade Prices
The Sargent EC160 Power Supply Unit is an essential component for self-build campervans, offering both 12V and 240V power supplies. Designed for easy installation and operation, this unit ensures reliable and efficient power distribution while incorporating safety features such as RCD protection and reverse polarity indication.
Features
  • 230V AC Features:
  • 16A input via a wired 2m lead
  • RCD protected with reverse polarity indication
  • Built-in 150W 13.8V fixed voltage battery charger with on/off switch
  • 3 x 10A MCB outputs via quick-fit connector blocks
  • 12V DC Features:
  • 2 x 15A battery inputs via screw terminal block
  • 5 x outputs via screw terminal block
  • Pump output via pump switch & 5A fuse
  • Lights output via lights/Aux switch & Aux 10A fuse
  • Permanent output via 5A fuse
  • Fridge output via 15A fuse
  • Built-in split charge relay (configurable)
  • Built-in EMC isolation relay (configurable)
  • Digital voltmeter with on/off switch
Materials and Dimensions
  • Front Panel Dimensions: 300 x 150 mm
  • Panel Cut-Out: 285 x 132 mm
  • Depth: 200 mm

Technical Information

SKU: EC160V

Brand: Sargent
